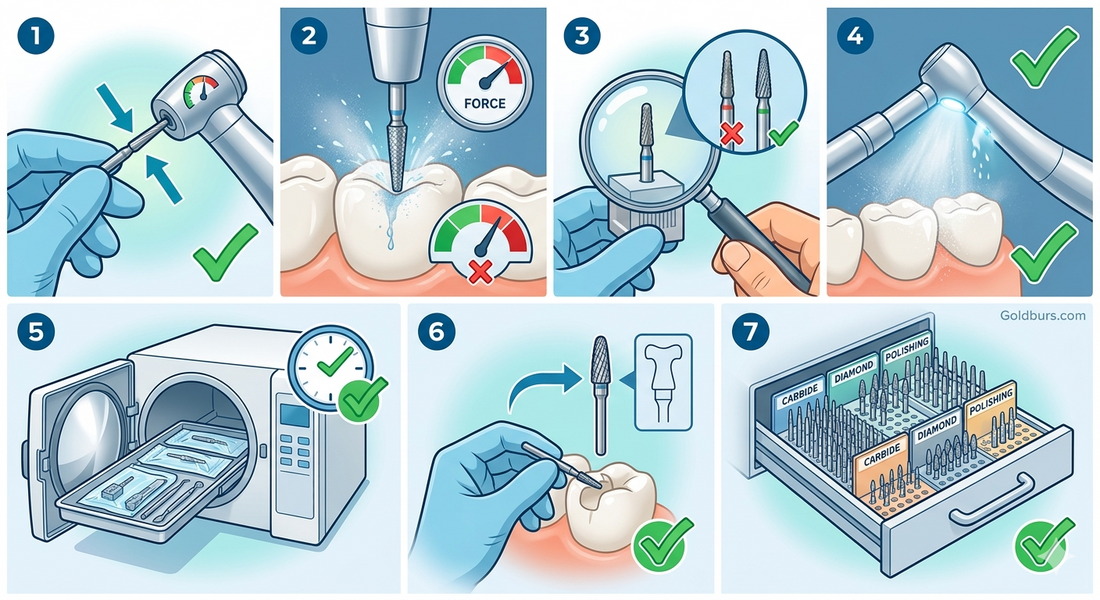

7 Common Dental Bur Mistakes and How to Avoid Them

This is the most fundamental and consequential mistake in dental bur usage — and the one that generates the most downstream problems. Using a diamond bur where a carbide is appropriate, or vice versa, is not simply an efficiency issue. It produces inferior clinical results, accelerates instrument wear, and in some cases can damage tooth structure or restorative materials unnecessarily.

Diamond burs cut through abrasion. They are the right choice for hard enamel, ceramic, zirconia, and porcelain — materials that require grinding rather than clean chip removal. Their multi-directional diamond particle coverage makes them excellent for contouring and surface reduction in hard structures. Carbide burs, by contrast, cut by slicing. Their precisely machined flutes produce clean, controlled cuts that leave smoother surfaces on dentin, composite, and softer materials. Using a diamond bur for composite finishing leaves a rough, scratched surface that requires significantly more polishing steps. Using a carbide for initial enamel reduction dulls the instrument rapidly and generates excessive heat.

Shape selection is equally important and equally misunderstood. A round bur is designed for caries excavation and pulp chamber access — not for preparing box forms or beveling margins. A flat end cylinder creates defined preparation walls and flat floors — not for accessing interproximal areas where a taper would perform better. Using the wrong shape for the clinical task means working against the instrument's geometry, which requires more pressure, more passes, more time, and produces less precise results.

Rotational speed is one of the most directly controllable variables in bur performance — and one of the most frequently miscalibrated. Every bur type has an optimal operating speed range. Operating outside that range degrades cutting performance, generates excessive heat, accelerates instrument wear, and increases patient discomfort.

High-speed air turbine handpieces operate at speeds ranging from 300,000 to 400,000 RPM and are the correct environment for friction grip (FG) diamond burs during active tooth preparation. These speeds allow diamond burs to cut efficiently through enamel and ceramic with the water-cooled spray doing most of the heat management work. Running diamond burs at low speeds through a contra-angle dramatically reduces their cutting efficiency and forces the clinician to apply more pressure — which then causes the problems described in Mistake #3.

Low-speed handpieces operating between 5,000 and 40,000 RPM are the appropriate environment for right-angle (RA) carbide burs used in finishing, polishing, and controlled caries excavation. The lower speed provides tactile feedback that high-speed turbines do not allow. Using finishing carbides at high speeds generates frictional heat and can create microfractures in the restoration surface being refined.

Excessive pressure is perhaps the most instinctive but destructive habit in dental bur usage. When cutting feels slow or imprecise, the natural response is to press harder. This response is almost always counterproductive, and with diamond burs in particular, it causes immediate, measurable harm to instrument performance.

Diamond burs cut by allowing the elevated diamond particles to abrade the surface material at rotational speed. When excessive lateral pressure is applied, the diamond particles are physically driven into the metal substrate rather than abrading the material being cut. This flattening of the particles against the bond layer — called particle embedment — removes them from active cutting orientation and permanently reduces the bur's cutting efficiency. A diamond bur subjected to consistent over-pressure degrades dramatically faster than one used with light, controlled contact.

Beyond instrument damage, excessive pressure generates excess heat at the tooth surface. Even with water cooling, thermal output from over-pressured burs can exceed safe thresholds for pulpal health in deeper preparations. This is a patient safety issue, not just an instrument issue.

The correct technique for diamond burs is light, intermittent contact — a brush stroke motion rather than sustained grinding pressure. Let the speed and the abrasive do the work. If cutting feels inefficient, the answer is almost always a sharper or more appropriate bur, not more force.

Knowing when to retire a bur is one of the most practically important — and most consistently avoided — clinical disciplines. There is an understandable financial motivation to get maximum use from every instrument. But continuing to use a worn bur past its effective service life costs more in time, quality, and patient outcomes than the cost of replacing it.

A worn diamond bur with depleted or flattened particle coverage does not cut — it grinds inefficiently, generates disproportionate heat, and requires excess pressure to achieve even marginal results. The clinical result is a preparation with rough, irregular surfaces and suboptimal margins that requires more finishing steps, longer chair time, and greater patient discomfort. A worn carbide bur with dulled flutes chatters against the surface rather than cutting cleanly, leaving an uneven finish that undermines the quality of the restoration placed over it.

Signs that a bur needs immediate replacement: cutting efficiency has noticeably declined even at correct speed and with appropriate pressure; the bur requires more passes to achieve the same material removal; visible inspection under magnification reveals missing, flattened, or dislodged diamond particles; or the bur has been sterilized more times than the manufacturer's recommended cycle limit.

Sterilization is non-negotiable. But the way burs are cleaned and sterilized before autoclave processing has a direct and measurable effect on instrument performance and service life — and the majority of dental practices are not doing it optimally.

The most damaging — and most common — mistake is allowing blood, saliva, and abraded tooth debris to dry on the bur head before cleaning. Debris that dries on the diamond head bonds into the spaces between diamond particles and becomes significantly harder to remove than fresh contamination. Inadequate removal of dried debris reduces the active cutting surface of the bur, effectively dulling it through contamination rather than through mechanical wear. The fix is simple: remove burs from the handpiece and rinse immediately under running water while still wet, before the procedure debris has a chance to dry.

Mechanical brushing of diamond bur heads with a stiff brush is another common mistake. Diamond particles are bonded to a metal substrate with an adhesive bond layer. Aggressive mechanical scrubbing can disrupt this bond, loosening particles from the cutting surface and accelerating wear. Ultrasonic cleaning with appropriate instrument solution is the correct approach — cavitation removes debris from between particles without the mechanical abrasion that brush cleaning introduces.

Water spray coolant is not optional during active tooth preparation with high-speed burs. It is a clinical necessity — and operating without it, or with inadequate coolant flow, is one of the most direct pathways to avoidable patient harm in restorative dentistry.

The heat generated by a diamond or carbide bur cutting through enamel and dentin at high speed is significant. Water spray serves two essential functions: it cools the cutting interface to protect pulpal tissue from thermal injury, and it flushes abraded debris and tooth particles away from the cutting surface. Without continuous debris removal, particles pack into the spaces between diamond abrasives and carbide flutes, dramatically reducing cutting efficiency and forcing the clinician to apply more pressure — amplifying the heat problem further.

Inadequate coolant is also one of the most common causes of premature bur wear. Diamond burs operating dry — or with insufficient coolant flow — experience dramatically elevated temperatures at the particle-substrate interface. These temperatures can weaken the bond between diamond particles and the metal substrate, accelerating particle loss and reducing instrument service life significantly.

A bur that is not correctly and fully seated in the handpiece chuck introduces vibration, runout, and mechanical instability that undermines every aspect of clinical performance — precision, control, patient comfort, and instrument longevity. This is one of the most underappreciated technical details in dental instrument management, and it is responsible for a surprising proportion of the performance complaints clinicians attribute to bur quality.

Runout — the lateral deviation of the bur head from its true center axis of rotation — is directly caused by improper seating or worn chuck mechanisms. Even a fraction of a millimeter of runout magnifies dramatically at the working end of the bur head during high-speed rotation, producing vibration that the patient feels, that the clinician experiences as reduced control, and that places asymmetric mechanical stress on the instrument. This stress accelerates particle loss in diamond burs and can produce microcracking in carbide bur heads over time.

Partial seating — inserting the bur shank to a depth short of the full chuck engagement — is the most common cause of runout from incorrect handling. High-speed turbine handpieces require the FG bur shank to be fully seated before the retention button or chuck is engaged. A partially seated bur may feel secure but will wobble at operating speed. Similarly, using a bur whose shank dimensions are slightly out of specification will produce the same problem even when fully inserted.
