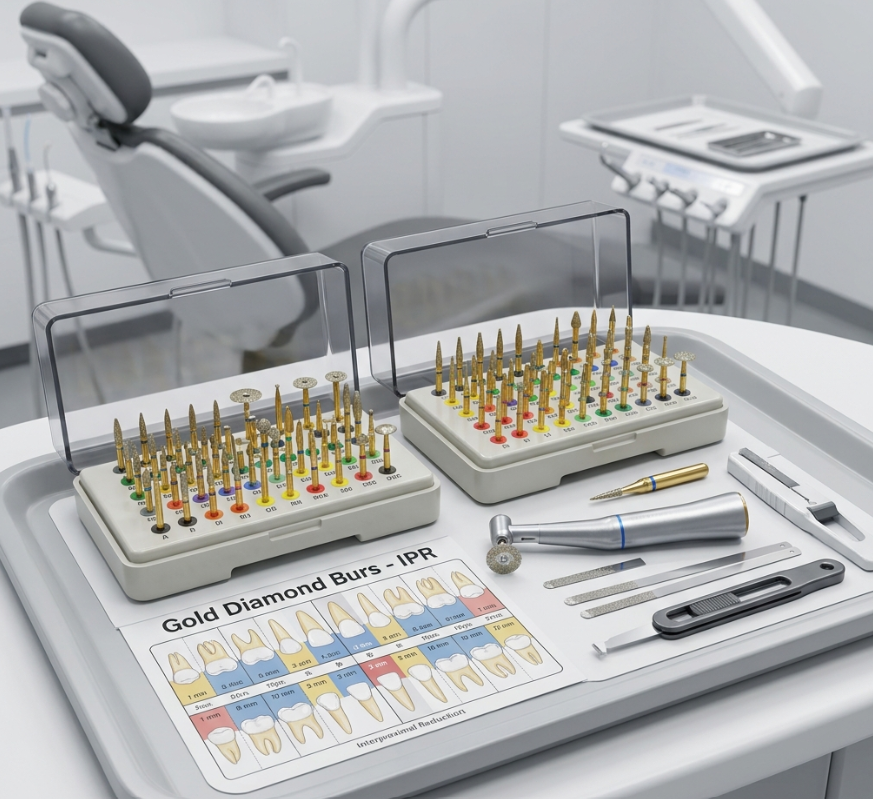

Gold Diamond Burs for Orthodontics (IPR): The Complete Clinician's Reference

What Is IPR and Why Do Instruments Matter?

Interproximal enamel reduction commonly known as IPR, stripping, slenderising, or air-rotor stripping (ARS) is one of the most precise and clinically consequential procedures in modern orthodontic practice. By removing controlled amounts of enamel from the contact surfaces between adjacent teeth, orthodontists and general practitioners create the space needed to align crowded dentitions, correct tooth-size discrepancies, improve interproximal contact morphology, and facilitate stable, well-supported tooth positions at the end of active treatment.

With the explosive growth of clear aligner therapy Invisalign, Spark, ClearCorrect, and their many equivalents IPR has moved from a technique used selectively by specialist orthodontists to a routine chairside procedure performed by thousands of general dental practitioners every day. Clear aligner digital treatment planning software calculates the precise amount of IPR required at each interproximal contact point to achieve the planned tooth movements, and the treating clinician must execute those calculated reductions accurately, safely, and reproducibly.

This is where instrument selection becomes critical. IPR with diamond burs specifically high-quality gold diamond burs from the DiaGold range manufactured by GoldBurs provides a level of precision, control, and surface quality that defines both the safety and the effectiveness of the procedure. Too much reduction risks dentine exposure and sensitivity. Too little prevents the planned tooth movement from completing correctly. Uneven reduction produces flat, unaesthetic interproximal surfaces that retain plaque and resist natural self-cleansing. Only the right diamond bur, used with correct technique, hits all three targets simultaneously: accurate quantity, safe execution, and a surface finish that supports long-term enamel health.

The Science Behind Interproximal Enamel Reduction

To perform IPR safely and effectively, every clinician must have a clear understanding of the anatomical substrate being reduced and the biological responses that follow. Enamel is not merely a hard surface to be filed down it is a living-adjacent, highly organised biological structure whose long-term integrity depends on how it is reduced and what happens to the reduced surface afterward.

Enamel Thickness and Safe Reduction Limits

Interproximal enamel thickness varies significantly across the dentition and across the mesiodistal dimension of each proximal surface. These anatomical realities define the absolute limits of safe IPR at each tooth position.

The 50% maximum rule is the single most important safety parameter in IPR. Reducing more than 50% of the available proximal enamel thickness risks exposing the dentine-enamel junction (DEJ) and, in cases where enamel is naturally thin or previously demineralised, the dentine itself. Dentine exposure during IPR creates immediate sensitivity, compromises the long-term protective function of the enamel at that contact, and creates a surface prone to caries formation.

In practical terms, the 50% rule sets a safe upper limit of approximately 0.4–0.5 mm per contact point on maxillary anteriors and premolars, and 0.3–0.4 mm on mandibular anteriors where enamel is thinnest. These figures align closely with the typical per-contact IPR amounts prescribed in clear aligner treatment plans confirming that the software-calculated IPR prescriptions are calibrated within biological safety margins when executed accurately.

How Enamel Responds to Diamond Abrasion

Diamond burs abrade enamel through compressive mechanical action millions of diamond particles grinding the crystalline hydroxyapatite surface rather than shearing it as carbide cutting edges would. This abrasive mechanism produces a surface with a specific micro-topography: an irregular array of submicron-scale grooves and hollows created by individual diamond particle contacts. Under the electron microscope, diamond-abraded enamel surfaces show a much less pronounced micro-fracture pattern at depth than carbide-cut enamel surfaces meaning that diamond abrasion preserves the structural integrity of the remaining enamel more effectively.

This surface micro-topography also has implications for remineralisation. The irregular surface produced by diamond abrasion has greater surface area per unit of proximal surface geometry than a flat-planed surface produced by abrasive strips alone. This increased surface area, combined with fluoride application after IPR, supports a more robust remineralisation response calcium and phosphate ions from saliva and fluoride products can access a greater surface area of the treated enamel, forming a more complete fluorapatite remineralised layer. Well-finished diamond-reduced enamel that has been fluoride-treated becomes, over time, marginally harder and more acid-resistant than the original enamel it replaced — a well-documented clinical benefit of properly executed IPR.

Why Gold Diamond Burs Are the Standard for IPR

Several instrument categories are available for IPR: abrasive strips (metal or polymer-coated), oscillating saw-type instruments, air-rotor diamond burs, and hand-driven strip holders. Each has a role in the IPR toolkit, but rotary diamond burs represent the most versatile, efficient, and controllable option particularly for larger amounts of IPR (above 0.25 mm per contact), for posterior interproximal contacts with wider embrasures, and for cases where reproducible removal rates are required across multiple contacts in a single appointment.

Diamond burs for IPR offer specific advantages over strip-based methods that become increasingly significant as IPR amounts increase and treatment complexity grows:

The gold-alloy bonding matrix of DiaGold burs provides a specific advantage in IPR: because IPR involves repeated light-pressure strokes against enamel at the boundary of adjacent teeth, the lateral loading forces on the bur head are multidirectional and variable. Standard nickel-plated burs under these conditions show particle delamination over repeated use reducing per-pass cutting efficiency and requiring more passes to achieve the prescribed reduction amount, which increases both the time per contact and the risk of uneven reduction. DiaGold's superior particle retention maintains consistent cutting rate from first use through the instrument's full rated lifecycle.

The DiaGold Advantage for Orthodontic Precision

IPR prescriptions in clear aligner software are specified to the nearest 0.1 mm and for many contacts, 0.1 mm is the entire prescribed reduction amount. Achieving this level of precision requires an instrument whose cutting rate is consistent and whose per-pass removal is predictable enough to allow incremental reduction with calibrated gauging between passes.

DiaGold burs achieve this through three manufacturing features that directly impact IPR clinical performance. First, their tight grit tolerance the distribution of diamond particle sizes within any given grit grade is tighter than industry standard means that per-pass removal rates are more consistent than with generic diamond instruments. Second, the gold-alloy bonding matrix maintains this consistency throughout the instrument's lifecycle rather than allowing progressive particle loss to change the cutting rate over sequential uses. Third, the ISO-standard shank machining eliminates eccentricity in the handpiece bur wobble during IPR creates irregular, wider-than-planned reduction surfaces that the clinician cannot compensate for during the procedure.

For orthodontists and general practitioners performing multiple contacts of IPR per patient and managing large active aligner caseloads, these consistency properties translate directly into more accurate treatment execution, fewer post-IPR gauge discrepancies, and reduced need for unplanned re-reduction at subsequent appointments.

Diamond Burs vs. Abrasive Strips: Understanding When to Use Each

The most effective IPR technique in clinical practice is a hybrid approach using diamond burs for primary reduction and abrasive strips for final surface conditioning. Understanding each instrument's strengths makes it possible to allocate them appropriately within the IPR workflow rather than using either tool exclusively.

Clinical Indications for IPR in Orthodontic Treatment

IPR is a clinical tool with specific indications not a universal solution for any crowding case. Understanding when IPR is indicated and when it should be avoided helps ensure it is prescribed and executed appropriately.

Clear Aligner Therapy

Clear aligner systems are the primary context in which IPR is performed in contemporary general dental practice. Digital treatment planning algorithms calculate precise IPR prescriptions to create the space needed for planned tooth movements particularly for crowding resolution, interproximal shape correction (recontouring triangular contacts to more rectangular proportions), and tooth-size ratio optimisation. IPR amounts in aligner plans are typically small (0.1–0.3 mm per contact) but cumulative a full-arch aligner plan may prescribe 10–15 individual IPR contact reductions, creating a total of 1.5–3.5 mm of arch-length gain distributed across the dentition.

The precision requirement of aligner-prescribed IPR is the most demanding context for diamond bur technique errors as small as 0.1 mm per contact can compound across multiple contacts to produce clinically significant discrepancies between the digital plan and the actual tooth positions at the end of aligner treatment.

Fixed Appliance Treatment

In fixed orthodontic treatment (braces), IPR is used to manage tooth-size discrepancies, resolve mild to moderate anterior crowding as an alternative to extraction, create space for final detailing movements in the finishing stages of treatment, and improve the shape of interproximal contacts before debonding for aesthetic and functional benefits. Fixed appliance IPR is often performed in larger increments (0.2–0.5 mm per contact) than aligner IPR, and the diamond bur is the most appropriate instrument for these amounts. The bracket and wire architecture limits access to some contacts, making flame and needle burs with their fine tips capable of accessing restricted embrasures particularly valuable.

Post-Treatment Retention and Space Maintenance

IPR is also performed after active orthodontic treatment in specific clinical scenarios. Black triangle correction the elimination of open gingival embrasures that become visible after treatment when papillae do not fill the interproximal space can be addressed by reshaping the interproximal contact points with fine-grit flame or needle diamond burs, creating a more apically positioned contact that allows the papilla to fill the embrasure. This procedure, sometimes called interproximal reproximation, requires particularly controlled, precise diamond bur work to produce symmetric, smooth contact modifications without over-reducing the enamel.

Grit Selection Guide for IPR Procedures

IPR uses a narrower range of grit levels than most restorative procedures the amounts involved are small enough that coarse and super-coarse grits have no appropriate role. The working range for IPR is medium to extra-fine, with each level serving a distinct function.

Essential Bur Shapes for IPR

IPR requires greater shape variety than most clinicians initially anticipate. Embrasure anatomy, contact position, bracket presence in fixed appliance cases, and the amount of IPR prescribed all influence which bur shape provides the safest, most efficient access.

Flame Burs

The fine-grit flame diamond bur is the single most important shape for anterior IPR and for the finishing phase of all IPR contacts. Its elongated, tapering profile with a fine working tip provides access to interproximal embrasures without requiring significant contact separation. The flame tip can be inserted into the embrasure from the labial or buccal aspect and the bur used with a light mesiodistal stroke parallel to the contact surface, reducing enamel in a controlled, unidirectional manner that the clinician can see and feel throughout.

Fine-grit flame burs are the instrument of choice for anterior IPR amounts of 0.1–0.3 mm the range that encompasses the majority of aligner-prescribed anterior reductions. Medium-grit flame burs are used when anterior IPR amounts exceed 0.3 mm and efficiency requires a faster-cutting initial pass. Extra-fine flame burs complete the sequence, conditioning the surface before fluoride application and producing the smooth, rounded contact profile that supports healthy papillary form.

Needle Burs

The needle bur takes the flame profile to a narrower extreme its very fine, elongated tip is the only diamond bur that can reliably access tight anterior embrasures, particularly in mandibular anterior contacts where the embrasures are narrow, the teeth are small, and crowding may have produced a nearly point-to-point contact configuration. The needle bur is also the preferred shape for IPR on teeth with fixed brackets, where the bracket wing partially occludes the embrasure and the broad base of a flame bur cannot clear the bracket geometry. The needle bur's narrow head threads through the available access without contacting the bracket adhesive or bracket face.

Fine-grit needle burs are almost exclusively used for finishing and small-increment IPR work. Their fine head diameter means that medium-grit needle burs can remove material quickly at a single point contact increasing the risk of localised over-reduction. Use medium grit needle burs only for reductions of 0.1 mm or less, or for access purposes only, proceeding immediately to fine grit for actual material removal.

Wheel (Disc) Burs

Wheel diamond burs flat, disc-shaped instruments that rotate in the plane perpendicular to the handpiece axis are the preferred shape for posterior IPR where embrasure width allows their use. Their flat profile removes enamel from the interproximal contact in a single consistent plane, producing a flat or slightly convex reduced surface that is easier to gauge accurately than the more variable surface produced by multiple flame bur passes at slightly different angulations. Posterior contacts from premolar to molar regions, where the embrasure is sufficiently wide to accommodate the wheel's diameter, are natural candidates for wheel bur IPR.

Wheel burs in medium grit are used for primary posterior IPR. Fine grit wheels complete the finishing sequence. Because wheel burs remove material bilaterally from both teeth simultaneously, they should be used with a contact separator or wedge in place when precise unilateral IPR is required however, for bilateral reduction as is standard in IPR, this bilateral action is an efficiency advantage rather than a concern.

Tapered Burs

Long-taper diamond burs serve IPR access in specific anatomical contexts primarily when the embrasure anatomy requires a longer instrument profile to clear soft tissue or bracket architecture before the working end reaches the contact. Fine-grit long-taper burs are occasionally used in posterior IPR when the patient's gingival architecture creates access limitations that prevent adequate wheel or flame bur angulation. Their tapered profile also makes them useful for the final smoothing and shaping of interproximal surfaces after primary reduction, creating the gently convex proximal surface morphology that supports healthy papillary form and plaque-resistant contact geometry.

IPR Amounts by Tooth Location and Treatment Context

Understanding the typical and maximum safe IPR amounts by tooth location helps clinicians calibrate their technique expectations and verify that treatment planning prescriptions are within biological safety parameters before proceeding.

Step-by-Step IPR Protocol with Diamond Burs

The following protocol is applicable to aligner-prescribed IPR and can be adapted for fixed appliance IPR by adjusting access approach based on bracket position.

Measurement and Verification Techniques

Accurate IPR measurement is the skill that distinguishes safe, precise IPR from guesswork and it is the area where many clinicians, particularly those new to aligner treatment, invest insufficient attention. A diamond bur used with perfect technique but without rigorous measurement produces outcomes that are no more predictable than those produced with poor technique but careful measurement.

The IPR Gauge

A calibrated IPR gauge (also called an Enamelometer or interproximal gauge) measures the mesiodistal dimension at the interproximal contact point. The gauge arms are inserted from the labial embrasure until they straddle the contact, and the gauge reading indicates the contact width. Pre-IPR and post-IPR measurements at the same insertion depth and angulation provide the direct measurement of material removed. Most clinicians use gauges calibrated in 0.1 mm increments sufficient for most clinical purposes, though 0.05 mm calibration is preferable when working on mandibular incisors where the total safe reduction margin is only 0.3 mm.

Contact Point Floss Pass

After IPR, dental floss passed through the contact should pass with slight resistance confirming that a contact point still exists (preventing food trapping and black triangle formation) while moving freely enough to indicate that meaningful reduction has occurred. A floss pass that requires strong force indicates insufficient reduction; a floss pass with no resistance at all indicates the contact has been fully opened an unintended outcome that requires monitoring and, if persistent, restorative management.

Photographic Documentation

Standardised intraoral photographs taken before and after IPR provide permanent documentation of contact point morphology at each stage. In medico-legal terms, IPR documentation is important photographic records showing the pre-treatment contact morphology, the planned and executed amounts, and the post-IPR gauge readings form a complete clinical record of a procedure that permanently modifies natural tooth structure.

IPR in the Clear Aligner Workflow: Timing and Staging

IPR execution timing relative to aligner stages is one of the most misunderstood aspects of aligner treatment execution among practitioners new to the modality. Performing IPR at the wrong stage too early before the planned teeth have tracked to position, or too late when subsequent aligners cannot utilise the created space produces poor treatment outcomes despite technically accurate reduction amounts.

The fundamental rule is that IPR should be performed when the teeth at the target contact have tracked to the position planned in the aligner stage preceding the IPR prescription. This requires visual and clinical verification that the teeth match the aligner not merely that the patient has worn the prescribed number of trays. Teeth that have not fully tracked to position are still being moved by the active aligner performing IPR before that movement is complete removes space prematurely and compromises the remaining movement.

Staged IPR where the total planned reduction at a contact is distributed across two or more aligner appointments is standard for reductions above 0.3 mm per contact. The aligner software typically maps this staging, with 0.1–0.2 mm performed at one stage and the remaining amount at a later stage when the teeth have moved to a position that makes the additional reduction biologically and mechanically appropriate. Clinicians should follow the software-planned staging rather than performing all planned IPR at a single visit, even when the total amount is within safe limits the staged approach allows the enamel surface to begin remineralising between reductions.

Post-IPR Surface Finishing and Fluoride Protection

The post-IPR surface management protocol determines the long-term biological outcome of the procedure. An IPR surface that is properly finished and fluoride-treated becomes a protected, remineralised enamel surface that is biologically stable and caries-resistant. An IPR surface that is left rough, unprotected, and plaque-retentive can progress to demineralisation and interproximal caries an outcome that represents a serious iatrogenic complication of an otherwise safe procedure.

Surface Finishing Sequence

After achieving the target reduction with medium and fine grit diamond burs, the surface finishing sequence proceeds as follows. An extra-fine grit flame or needle bur is used to make one to two final passes across the reduced surface using very light, sweeping strokes perpendicular to the primary reduction direction. This cross-direction final pass eliminates the directional scratch pattern from the primary bur strokes and produces a smooth, multi-directionally conditioned surface. The result should feel smooth under a sharp probe tip with no detectable directional ridges.

Following the extra-fine bur pass, a fine-grit abrasive strip (coated one side only to protect the adjacent tooth) is passed through the contact once or twice to further refine the surface. The strip removes any remaining micro-roughness from the bur passes and produces the subtly convex proximal surface morphology that is biologically ideal a convex proximal surface is naturally self-cleansing under saliva flow and interdental brush use, whereas a flat or concave surface retains plaque in ways that the patient cannot easily disrupt.

Fluoride Protocol

• Apply 5% sodium fluoride varnish (22,600 ppm F) directly to all treated contacts immediately after surface finishing
• Allow minimum 1–2 minutes contact time before aligner insertion
• Instruct patient not to eat or drink for 30 minutes after fluoride application
• Recommend daily use of high-fluoride toothpaste (1450 ppm F minimum) throughout aligner treatment
• Consider professional fluoride varnish application at each subsequent IPR appointment
• For patients with active white spot lesions or elevated caries risk, consider prescription-strength fluoride (5000 ppm F) home gel for use during treatment

Quick-Reference IPR Bur Selection Table

Common IPR Mistakes and How to Avoid Them

Building Your DiaGold IPR Bur Kit

A dedicated IPR bur kit separate from restorative preparation instruments keeps these precision, fine-grit instruments in optimal condition for IPR work. Here is a recommended DiaGold configuration for a practice with an active aligner caseload:

---

Conclusion

Interproximal enamel reduction has become one of the most frequently performed clinical procedures in orthodontic and aligner-focused general dental practice — and its precision requirements demand instruments whose performance matches the exactness of digitally planned treatment. A 0.1 mm prescription at a mandibular incisor contact is not a rounding error or an approximation it is a clinically meaningful quantity in a zone where the total safe reduction margin is only 0.3 mm. Achieving it accurately, safely, and reproducibly requires diamond burs that are purpose-selected, properly maintained, and used with disciplined measurement technique.

Gold diamond burs from the DiaGold range by GoldBurs provide the manufacturing consistency that IPR precision demands: tight grit tolerances for predictable per-pass removal rates, gold-alloy bonding matrices that maintain those rates throughout the instrument lifecycle, a comprehensive range of shapes that covers every contact location and access scenario from narrow lower anterior embrasures to wide posterior contacts, and full compatibility with the sterilisation and storage protocols that patient safety requires.

The systematic principles this guide has outlined pre-measurement before every contact, incremental reduction with frequent gauging, grit progression from medium to fine to extra-fine, shape selection matched to embrasure anatomy, IPR performed only on fully-tracked teeth, surface finishing before fluoride, and proactive instrument replacement form a complete clinical framework for IPR that is simultaneously safe, accurate, and efficient. Clinicians who build these principles into their routine aligner workflow will consistently execute IPR to specification, support excellent treatment outcomes, and provide their patients with the enamel-protective care that makes IPR a biologically sound procedure rather than a cause for concern.
