Overview

What Makes a Gold Diamond Bur Different?

Gold diamond dental burs aren't simply standard diamond burs with a different color. The gold plating is an engineered functional layer that changes how the bur cuts, how long it lasts, how much heat it generates, and how many sterilization cycles it survives.

Walk into any dental supply catalogue and you'll find dozens of bur manufacturers offering diamond instruments. Most look similar — same shapes, same grit codes, same ISO designations. But within that category, gold-plated diamond burs occupy a distinct tier. Their visual distinction is obvious. Their performance distinction, however, runs much deeper than aesthetics — and it is rooted entirely in how they are manufactured.

The Raw Materials: Diamond, Metal & Gold

Every gold diamond bur starts with three fundamental raw material inputs. The quality of each — and the specification to which each is sourced — determines the ceiling of what the finished bur can achieve. No amount of manufacturing precision can compensate for substandard input materials.

💎

Industrial Diamond

Synthetic industrial diamonds produced via high-pressure, high-temperature (HPHT) synthesis. Hardness 10 on the Mohs scale — the hardest naturally occurring material. Particle size precisely graded in microns to control grit level.

Mohs 10

⚙️

Stainless Steel Substrate

Medical-grade stainless steel or chrome-vanadium steel rod, precision-machined to ISO shank tolerances. The substrate must be dimensionally exact and metallurgically compatible with both the bonding process and the gold plating chemistry.

ISO Tolerance

🥇

24-Karat Gold

Pure 24K gold in solution form (gold salt dissolved in electrolyte bath) for electroplating. The purity level matters — lower karat gold introduces alloy elements that reduce conductivity, thermal efficiency, and corrosion resistance.

24K Pure

The diamond particles used in dental burs are synthetic — produced industrially under controlled conditions — rather than mined. This is actually a quality advantage: synthetic HPHT diamonds have more consistent crystalline structure, more predictable fracture patterns, and tighter size distribution than natural industrial diamonds. For a product where cutting consistency across thousands of particles is critical, this manufacturing control matters enormously.

The metal substrate begins as drawn rod stock — precision-manufactured steel with tight diameter tolerances. For FG (friction grip) burs used in high-speed turbines, the shank diameter tolerance is typically ±0.01mm. Any deviation beyond that causes handpiece chuck wear, vibration, or unsafe runout at operating speeds above 200,000 RPM. The steel must also be compatible with the nickel or copper strike layers that precede gold electroplating — incompatible metallurgy causes adhesion failure at the plating interface.

📌 Why Synthetic Diamond?

Natural diamonds contain inclusions, irregular crystalline planes, and size inconsistencies that make them unsuitable for precision dental bur manufacture. Synthetic HPHT diamonds produced for abrasive applications are manufactured to precise micron-size distributions — allowing bur manufacturers to specify exactly which grit layer corresponds to which particle diameter, and to maintain that specification batch-to-batch with calibrated sieve analysis.

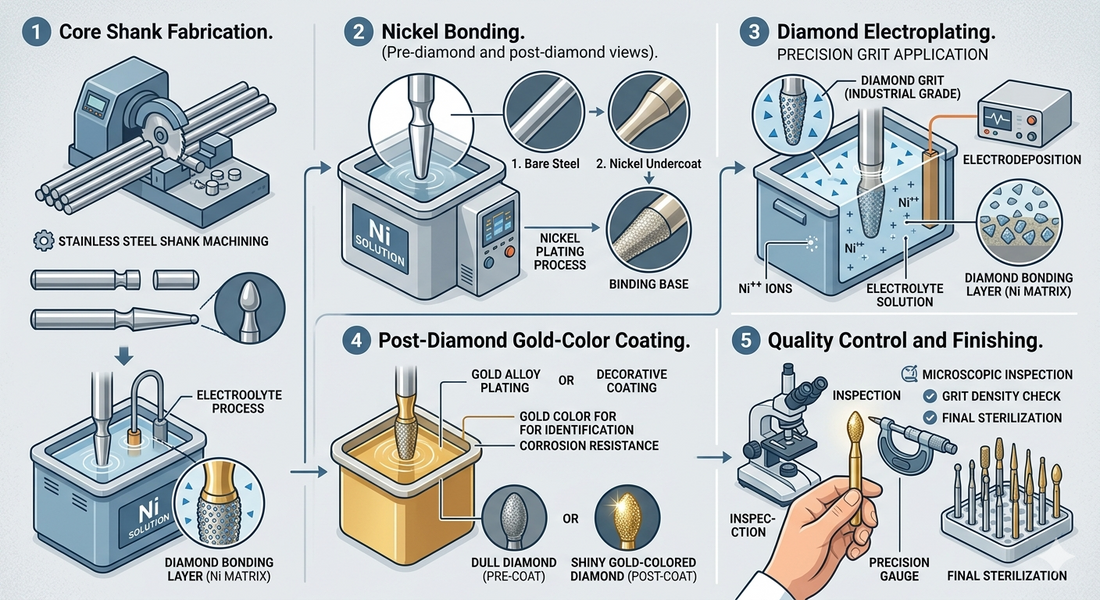

Step 1

Manufacturing the Metal Substrate

The metal substrate — the shank, neck, and blank working head — is manufactured in a multi-stage precision machining process before any diamond particles are applied. The quality of this substrate determines the dimensional accuracy, rotational balance, and structural integrity of the finished bur.

CNC Turning and Profile Grinding

Steel rod stock is fed into CNC (Computer Numerical Control) lathes that machine the shank, neck taper, and working head profile simultaneously. For a simple round bur, this produces a spherical head with smooth surface geometry. For tapered or fissure shapes, the CNC program defines the precise taper angle, head length, and tip geometry to ISO specification. Modern CNC turning centers achieve the dimensional tolerances required for dental instruments in a single pass — typically ±0.005mm on head diameter and ±0.01mm on shank.

Surface Preparation for Bonding

Before any diamond particles or plating chemistry can be applied, the machined metal surface must be prepared. This begins with mechanical roughening — typically by glass bead blasting or micro-abrasion — which increases surface area and creates mechanical interlocking points for the subsequent bonding layers. Smooth machined steel surfaces are actually poor adhesion substrates for both diamond bonding matrix and electroplated layers; the roughened surface dramatically improves bond strength.

Chemical cleaning follows: an ultrasonic degreasing bath removes machining oils, followed by acid activation to remove surface oxides and expose clean metal for the plating chemistry. This cleaning sequence is critical — any contamination at this stage causes bonding defects that won't be visible until the bur fails in clinical use.

Dimensional Inspection

Before proceeding to diamond bonding, substrate blanks are typically inspected on coordinate measuring machines (CMM) or optical comparators to verify dimensional compliance. Any out-of-tolerance substrate is rejected at this stage — it is far more efficient to catch substrate defects here than after diamond bonding and gold plating have been applied.

🔩 Why Substrate Quality Matters to You

A dimensionally inaccurate substrate produces a bur that doesn't run true in the handpiece — causing vibration, accelerated handpiece wear, and reduced cutting precision. The smooth, low-vibration performance that clinicians associate with premium burs begins here, in substrate machining, not in the diamond layer or the gold coating.

Step 2

Selecting & Grading Industrial Diamonds

The diamond particles used in bur manufacturing are not selected arbitrarily — they are purchased as graded abrasive stock with specific size distributions, and then further processed and classified by the bur manufacturer to meet the exact grit specification required for each bur designation.

Grit Size and the Micron Classification System

Diamond grit size is measured in microns (µm) — one micron being one millionth of a meter. The grit designations used on dental burs correspond to specific micron ranges. The ISO 6360 color-band system maps these ranges to clinical bur designations: super coarse burs use particles in the 180–250µm range, standard coarse 125–180µm, medium 76–125µm, fine 46–76µm, super fine 25–46µm, and ultra-fine 0–25µm. These ranges are not approximate — they are defined by calibrated sieve analysis, with pass/fail criteria for particle distribution within the range.

Crystal Shape and Friability

Beyond size, two additional diamond particle characteristics affect cutting performance: crystal shape and friability. Blocky, equiaxed diamond crystals with multiple sharp edges cut more aggressively and more consistently than elongated or irregular shapes. Friability — how readily a particle fractures under load — determines whether a bur cuts by exposing fresh sharp edges as the crystal wears (high friability) or simply polishes smooth and stops cutting (low friability). For dental bur applications, moderate friability is optimal: the crystal should self-sharpen slightly under cutting loads without fracturing completely and releasing from the bonding matrix prematurely.

Grit Designation	ISO Color Band	Particle Size (µm)	Clinical Application
Super Coarse	Black double band	180 – 250 µm	Aggressive gross reduction
Coarse	Black band	125 – 180 µm	Rapid bulk removal
Medium	No band / Blue	76 – 125 µm	Standard preparation
Fine	Red band	46 – 76 µm	Surface refinement
Super Fine	Yellow band	25 – 46 µm	Finishing
Ultra Fine	White band	0 – 25 µm	Polishing

Premium bur manufacturers source diamond abrasive with tighter size distributions than the ISO minimum — meaning fewer outlier particles at the extremes of the specified range. Tighter distribution means more uniform cutting geometry across the entire working surface, which translates directly to more consistent surface finish and more predictable cutting behavior across the bur's service life.

Step 3

Diamond Bonding: Electroplating vs Sintering

With the substrate prepared and diamond particles graded, the critical manufacturing step is diamond bonding — attaching the abrasive particles to the working head in a way that keeps them securely in position through thousands of cutting cycles and repeated autoclave sterilization. There are two principal bonding methods used in dental bur production, and they produce fundamentally different instruments.

Method A

Electroplated Diamond Bonding

Single metal layer bonds particles to substrate
Nickel matrix most commonly used
Particles held by approximately 50% of their height
Single-layer construction — thinner profile
Lower manufacturing cost
Good for standard and fine grit applications
Used in most standard and economy burs

Method B — DiaGold Series

Multi-Layer Gold-Enhanced Bonding

Gold undercoat applied before diamond deposition
Diamond particles set into gold-compatible matrix
Gold overcoat locks particles from above
Particles encapsulated at up to 70% of height
Significantly higher particle retention force
Gold layer provides thermal and vibration benefits
Used in premium multi-use clinical burs

The Electroplating Bonding Process in Detail

For electroplated burs, diamond particles are applied to the prepared substrate surface using one of two sequences. In the "land-then-plate" method, particles are placed on the substrate surface using an adhesive carrier, and the bonding metal is then electrodeposited around them. In the "plate-then-land" method, a thin initial metal layer is deposited first, particles are pressed into this soft layer while it is still being plated, and additional metal is then built up around them. The resulting structure holds each diamond particle in a metal matrix that grips approximately the lower 40–55% of the particle's height, leaving the upper portion exposed for cutting.

The depth of particle embedment is a critical manufacturing parameter. Too shallow and particles release prematurely. Too deep and the cutting edges are buried and the bur cuts sluggishly. Controlling embedment depth requires precise control of the electroplating current density, bath chemistry, temperature, and deposition time — all of which vary with the diamond particle size being bonded.

How Gold Electroplating Improves Particle Retention

In the multi-layer process used for gold diamond burs, a gold strike layer is first applied to the roughened steel substrate. Gold's electrochemical compatibility with the subsequent bonding matrix creates a stronger interfacial bond than the direct steel-to-matrix interface used in standard burs. The diamond particles are then deposited and the primary bonding layer is built up. Finally, a secondary gold overcoat layer is electrodeposited, partially encapsulating the upper portions of the diamond particles and providing additional mechanical retention from above. This three-layer architecture — gold undercoat, bonding matrix, gold overcoat — produces measurably higher particle pull-out resistance than single-layer construction.

Step 4

Applying the 24K Gold Plating

The gold plating stage is where a gold diamond bur becomes visually and functionally distinct from a standard diamond instrument. This is not a cosmetic coating applied at the end of production — the gold is integrated into the bur's construction at multiple points, and each layer serves a specific functional purpose.

The Electroplating Bath

Gold electroplating uses an electrolytic bath — a solution of gold salts (typically potassium gold cyanide or gold sulfite) dissolved in a controlled-chemistry electrolyte. The bur blanks serve as the cathode (negative electrode), and pure gold anodes supply additional gold ions to the solution as deposition proceeds. When direct current is applied, gold ions from the solution migrate to the bur surface and deposit as a dense, adherent metallic layer.

The thickness of the deposited gold layer is controlled by current density (amperes per square centimeter of substrate surface), bath temperature, gold ion concentration, and deposition time. For dental bur applications, the target layer thickness is typically in the range of 1–5 microns — thin enough to preserve dimensional accuracy, thick enough to provide the functional benefits that justify the gold's use.

Pre-Plate Preparation: The Nickel Strike

Gold does not adhere well directly to steel surfaces — the gold-steel adhesion energy is relatively low, and direct gold-on-steel platings tend to blister or delaminate under thermal cycling and mechanical stress. To solve this, a thin nickel or copper "strike" layer is applied first. The nickel strike provides an intermediate surface with high gold-adhesion energy, ensuring that the gold layer bonds durably to the substrate rather than sitting loosely above it. This pre-treatment step is one of the most common points of manufacturing corner-cutting in low-quality burs — skipping or thinning the strike layer reduces plating cost but dramatically reduces long-term adhesion.

The Four Functional Roles of the Gold Layer

🌡️

Thermal Conductivity

Gold has thermal conductivity of ~318 W/m·K — significantly higher than nickel (~91 W/m·K) and steel (~50 W/m·K). Heat generated at the cutting surface dissipates through the gold layer rather than concentrating at the diamond-tooth interface, reducing thermal transfer to pulp tissue.

📳

Vibration Damping

Gold's crystalline structure and density provide measurable vibration-damping properties. Micro-vibrations generated during abrasive cutting are attenuated by the gold layer before they propagate through the shank to the handpiece and the clinician's hand — improving tactile control and reducing chatter at the preparation surface.

🔗

Particle Retention

The gold overcoat mechanically encapsulates diamond particles from above, adding a secondary retention mechanism beyond the primary bonding matrix. This is particularly significant after multiple autoclave cycles, when thermal stress can degrade standard bonding matrix adhesion.

🛡️

Corrosion Resistance

Gold is chemically inert — it does not oxidize or corrode under autoclave conditions (134°C saturated steam), ultrasonic cleaning chemistry, or the slightly acidic oral environment. This protects the bonding matrix beneath from chemical degradation that would otherwise loosen particle attachment over time.

Post-Plating Processing

After gold deposition, burs undergo a final rinse sequence to remove residual electrolyte chemistry, followed by a low-temperature bake to drive off any hydrogen absorbed during plating (hydrogen embrittlement is a known failure mode in electroplated steel parts). The bake also promotes gold layer densification, reducing porosity and improving corrosion resistance. Final dimensional inspection follows to verify that the plating layer has not altered the critical shank or working-head dimensions beyond tolerance.

Every micron of gold deposited on a DiaGold bur is there for a reason. Thermal management, particle retention, vibration damping, corrosion resistance — the gold is working in four dimensions simultaneously, throughout every minute of clinical use and every autoclave cycle.

GoldBurs Manufacturing Philosophy

Step 5

Quality Control & Performance Testing

A gold diamond bur that looks correct may still fail clinically if the diamond particles are too shallow, the grit distribution is off-specification, or the gold layer adhesion is substandard. Comprehensive quality control testing is the manufacturing stage that separates burs that perform as specified from those that merely appear to. For a medical instrument operating at 200,000–500,000 RPM inside a patient's mouth, this is not optional due diligence.

Dimensional Verification

Every batch of finished burs undergoes dimensional sampling using precision measurement equipment. Working head diameter and length are verified against ISO 6360 specifications. Shank diameter, shank length, and neck geometry are checked against handpiece compatibility requirements. Runout — the wobble or eccentricity of the working head during rotation — is measured on a precision spindle; any bur with runout above the specified maximum generates vibration that compromises both clinical performance and handpiece longevity.

Diamond Layer Inspection

Scanning electron microscopy (SEM) or high-magnification optical inspection verifies diamond particle distribution across the working surface — checking for bare patches (areas without diamond coverage), particle clustering, or areas where particles are too deeply buried to cut effectively. Grit uniformity across the working head determines how evenly the bur removes material and how consistent the surface finish is across the preparation.

Gold Adhesion Testing

Gold layer adhesion is tested by cross-hatch tape peel test and by bend or flex testing of representative samples. The tape peel test applies a standardized adhesive tape to a scribed cross-hatch pattern on the plated surface; gold layer delamination upon tape removal indicates insufficient adhesion. Premium bur manufacturers also subject samples to accelerated autoclave cycling — running burs through multiple sterilization cycles at production and testing adhesion and dimensional stability after cycling.

Cutting Performance Validation

Beyond dimensional and material tests, cutting performance tests verify that the finished bur removes material at the expected rate and produces the expected surface finish. Standardized material removal rate tests cut a known substrate (typically a block of hydroxyapatite ceramic, which approximates the hardness of human enamel) under controlled speed, feed rate, and irrigation conditions, measuring material removal weight per unit time. Surface finish is assessed by profilometry — measuring the Ra (average roughness) of the cut surface to confirm it matches the specification for the declared grit level.

QC Test	What It Checks	Method	Result
Dimensional inspection	Head diameter, shank diameter, runout	CMM / optical comparator	ISO 6360 ± 0.01mm
Diamond coverage	Particle distribution, bare patches, burial depth	SEM / optical microscopy	Full surface coverage
Gold adhesion	Layer bond strength to substrate	Cross-hatch tape peel	Zero delamination
Autoclave cycling	Dimensional & adhesion stability post-sterilization	134°C / 3 bar steam cycles	No degradation at multi-use count
Material removal rate	Cutting efficiency vs specification	Hydroxyapatite block test	mg/min within grit spec range
Surface finish	Ra roughness of cut surface	Contact profilometry	Ra matches grit designation
Runout / concentricity	Rotational balance at operating speed	Precision spindle measurement	< 0.02mm TIR

Step 6

Sterilization Compatibility & Multi-Use Certification

One of the most practically important outcomes of the gold diamond bur manufacturing process is the instrument's ability to survive repeated sterilization cycles without performance degradation. For a multi-use clinical instrument, sterilization compatibility is not a secondary consideration — it is a primary engineering requirement that influences material selection, bonding chemistry, and plating layer specification at every stage of production.

What Happens to a Bur During Autoclave Sterilization

Steam autoclave sterilization exposes instruments to saturated steam at 134°C and 3 bar pressure for a minimum of 3 minutes (or lower temperatures for longer cycles). For a dental bur, this means repeated thermal cycling from ambient to 134°C and back, in a chemically active steam environment. The effects on a poorly made bur are predictable: thermal expansion mismatches between the steel substrate and bonding matrix can crack the matrix; steam penetration through porous plating layers reaches the steel substrate and causes oxidation; weakened diamond-matrix interfaces release particles prematurely.

For a properly engineered gold diamond bur, the gold layer provides a dense, non-porous barrier that prevents steam penetration to the bonding matrix. Gold's chemical inertness means it neither oxidizes nor reacts with the steam environment. The well-controlled thermal expansion match between the gold layer, the nickel strike, and the steel substrate minimizes differential stress during cycling. The result is a bur that exits its twenty-fifth autoclave cycle with the same dimensional accuracy, particle adhesion, and cutting efficiency as it entered its first.

Multi-Use Certification

Multi-use certification requires manufacturers to demonstrate that an instrument maintains safety and performance specifications through a defined number of use-and-sterilization cycles. For dental burs, this typically involves actual cutting performance testing at regular cycle intervals — not just inspection. GoldBurs' DiaGold series carries multi-use certification, validated through this cycle-testing protocol. The certification is not a marketing claim — it is a documented, tested performance standard backed by the manufacturing decisions made at every stage of production.

♻️ What Multi-Use Certification Means for Your Practice

A DiaGold bur certified for multi-use is engineered to perform consistently across its rated lifecycle. This means the cost per use is substantially lower than single-use or cheap disposable alternatives, even accounting for the higher unit price. More importantly, it means your fifteenth use of that bur delivers the same cutting performance and the same surface quality as your first — which is what clinical outcomes actually depend on.

Clinical Comparison

Gold-Plated vs Standard Diamond Burs: What the Manufacturing Difference Means Clinically

Manufacturing differences are only meaningful if they translate into clinical differences. Here is how the specific production distinctions between standard diamond and gold-plated diamond burs manifest in actual clinical use.

📳

Vibration

Standard: Nickel bonding matrix transmits vibration directly through shank. Gold: Gold's damping properties attenuate micro-vibrations before they reach clinician and preparation surface. Particularly significant in fine prep work and ceramic adjustment.

🌡️

Heat Generation

Standard: Heat concentrates at cutting site. Gold: Superior conductivity distributes heat away from cutting interface faster, reducing peak temperature at the diamond-tooth contact point — meaningful for pulp protection in deep preparations.

⏱️

Bur Longevity

Standard: Particle loss accelerates after several autoclave cycles as matrix degrades. Gold: Triple-layer retention and corrosion-resistant gold overcoat maintain particle adhesion through more sterilization cycles, extending functional service life.

✨

Surface Finish

Standard: Cutting surface quality as stated by grit designation. Gold: Tighter particle distribution and reduced vibration produce marginally smoother, more consistent surface finish at equivalent grit levels — relevant in finishing and ceramic work.

Gold Diamond Burs — Advantages

Measurably lower vibration at working head
Superior thermal management — less heat to pulp
Higher diamond particle retention over lifecycle
Passes more autoclave cycles without degradation
Corrosion-resistant — no rust or oxidation
Instant visual identification (gold color)
Multi-use certified — lower cost per use
Smoother cut on ceramics and porcelain

Gold Diamond Burs — Considerations

Higher per-unit purchase price than standard diamond
Not a substitute for carbide on composite or dentin
Gold layer is thin — should not be used with excessive lateral pressure
Not required for every procedure — standard diamond is appropriate for many applications

GoldBurs Engineering

How GoldBurs Engineers the DiaGold Series

GoldBurs has been manufacturing dental burs since 1992 — over three decades of refining the production process for gold diamond instruments specifically. The DiaGold series is the product of that accumulated manufacturing knowledge, applied to every stage of production from substrate specification to final packaging.

Three Decades of Gold Diamond Manufacturing

GoldBurs has been engineering premium dental burs since 1992 — refining substrate tolerances, bonding chemistry, gold plating specifications, and QC protocols through continuous improvement over more than 30 years of production. The DiaGold series reflects that accumulated expertise in every instrument.

30+ Years Manufacturing

10K+ Clients Worldwide

18+ Countries Served

24K Pure Gold Plating

DiaGold Manufacturing Specifications

The DiaGold series is produced to specifications that exceed the ISO 6360 minimum requirements at every measurable parameter. Substrate machining tolerances are tighter than ISO minimum. Diamond particle size distribution is sourced to narrower ranges than the standard grit classifications require. The gold plating layer is deposited to a controlled thickness specification with a mandatory nickel strike underlayer, verified by X-ray fluorescence (XRF) coating thickness measurement. Autoclave cycle testing is performed at production for every batch, not just at initial certification.

The Complete DiaGold Shape Range

GoldBurs offers the DiaGold series across the complete shape range required for a full restorative and prosthetic workflow — round, pear, flat-end fissure, round-end fissure, tapered flat-end, tapered round-end, football (egg), flame, needle, and surgical variants. Each shape is available in the full grit sequence from coarse through ultra-fine, allowing a complete preparation and finishing workflow in a single instrument line. The consistent gold plating specification across all shapes means that clinicians who rely on DiaGold for vibration management and heat control get those benefits regardless of which shape or grit they reach for.

Accessible Pricing Without Compromising Specification

GoldBurs was founded on the conviction that premium instrument performance should not require premium instrument pricing. The DiaGold line achieves this through manufacturing efficiency and direct distribution — eliminating intermediary cost layers that add price without adding value to the instrument itself. The result is a gold-plated diamond bur that performs to the standards described in this guide, available at prices that make it practical to equip an entire practice with DiaGold rather than reserving it only for the most demanding procedures.

🏅 Why the Manufacturing Process Is the Product

When you hold a DiaGold bur, you're not holding gold paint on a standard instrument. You're holding a product of six distinct precision manufacturing stages — each one engineered to contribute a specific performance benefit. The substrate gives you dimensional accuracy. The diamond selection gives you consistent cutting. The bonding process gives you particle retention. The gold plating gives you thermal management, vibration damping, and corrosion resistance. The QC testing gives you confidence that every instrument in the box meets the standard. That is what a gold diamond bur actually is.

FAQ

Frequently Asked Questions

Is the gold on a gold diamond bur real gold?

Yes — in a properly manufactured gold diamond bur, the gold plating is genuine 24-karat gold deposited by electroplating. It is not a gold-colored paint, dye, or anodizing. The purity matters because 24K gold has higher thermal conductivity and better corrosion resistance than lower-karat alloys. Some budget products use gold-colored nickel or zinc alloy coatings that provide the visual appearance without the functional properties — these are not equivalent instruments. When GoldBurs specifies 24K gold plating on the DiaGold series, that specification refers to the actual gold purity of the electrodeposited layer, verified by XRF measurement.

How thick is the gold layer on a dental bur?

The gold layer on a dental bur is typically in the range of 1–5 microns (0.001–0.005mm). This sounds extremely thin, but electroplated gold at this thickness is dense, adherent, and fully functional for its intended purpose. The layer does not need to be thick to provide thermal conductivity benefits — gold's conductivity operates at the molecular level and is active even in micron-scale layers. Thicker gold layers would add cost without proportional benefit and would risk altering working head dimensions beyond tolerance.

Does the gold wear off during use?

Some surface gold does wear from the active cutting zones during use — this is expected and normal. The diamond particles themselves are the cutting agents; as the gold between and around them wears slightly, fresh diamond cutting edges are exposed. The gold that matters most for retention and thermal management is the layer bonded between the substrate and the diamond particles, which is protected by the particles themselves and does not wear at the same rate as the exposed surface. A bur that appears to have lost its gold color on the cutting surface may still have intact gold bonding layers contributing to particle retention.

Why do gold diamond burs reduce vibration?

The vibration reduction comes from two sources. First, gold's density and crystalline structure provide inherent vibration-damping properties — it absorbs and dissipates vibrational energy more effectively than nickel or steel. Second, the gold layer slightly increases the mass and damping coefficient of the working head, shifting the resonant frequency of the bur assembly away from the frequencies most likely to cause chatter at clinical operating speeds. The combined effect is measurable — clinicians who switch from standard to gold-plated diamond burs in fine preparation work consistently report smoother tactile feedback and reduced vibration transmission to the handpiece.

Can the gold plating affect the patient?

The gold particles that wear from the bur during cutting are dispersed in the irrigation water spray and removed by suction — they do not remain in the preparation site. Gold is biocompatible and non-toxic; it is used extensively in dental restorations, implant components, and medical devices for exactly this reason. The quantities involved in bur wear are extremely small and pose no biological concern. The nickel strike layer is fully encapsulated by gold and does not contact the oral environment during normal bur use.

How can I tell if a gold diamond bur is genuinely gold-plated vs gold-colored?

The most reliable method is to check the manufacturer's documentation for an explicit gold purity specification (24K or similar) and evidence of XRF verification. Visual inspection alone cannot distinguish genuine gold plating from gold-colored coatings. Functionally, genuine gold-plated burs exhibit the performance characteristics described in this article — reduced vibration, lower heat generation, and extended service life through multiple autoclave cycles. If a gold-colored bur performs identically to a standard diamond bur, the gold may not be genuine. Purchasing from established manufacturers like GoldBurs who document their specifications provides the most reliable quality assurance.

Summary

Final Thoughts

The manufacturing process of a gold diamond dental bur is a six-stage precision engineering sequence, and every stage contributes something specific to the finished instrument's clinical performance. The substrate machining determines dimensional accuracy and rotational balance. The diamond grading determines cutting consistency and surface finish. The bonding process determines particle retention — the most critical factor in how long the bur cuts effectively. The gold plating delivers four simultaneous performance benefits: thermal conductivity, vibration damping, enhanced particle retention, and corrosion resistance. The quality control testing verifies that the completed instrument meets its specifications. The sterilization compatibility testing ensures it will continue to meet them through its rated multi-use lifecycle.

Understanding this process changes how clinicians evaluate bur quality. A gold diamond bur that costs more than a standard instrument and performs better is not a mystery — it is the predictable outcome of a more sophisticated manufacturing process applied to better input materials. The question is not whether gold-plated burs are worth it, but whether you are buying from a manufacturer who actually builds them to the standard that justifies the category.

GoldBurs has been answering that question with the DiaGold series for more than three decades. Every instrument in that line is manufactured to the specifications described in this guide — substrate tolerances, diamond selection, multi-layer gold bonding, 24K plating, QC validation, and multi-use certification — at pricing that makes the technology accessible rather than aspirational. That combination is precisely what more than 10,000 dental professionals across 18 countries have been relying on since 1992.

🔬 The Manufacturing Checklist — What to Ask Your Supplier

When evaluating any gold diamond bur: Is the gold 24K electroplated or a gold-colored coating? Is there a nickel or copper strike layer for adhesion? Is the diamond particle size distribution independently verified? Is there documented multi-use certification with cycle testing? Is the shank machined to ISO tolerance? If a supplier cannot answer all five questions clearly, the manufacturing standard is probably not what the gold color implies.
