What Are Zirconia Cutting Dental Burs?

A New Material Demands a New Instrument

Over the past fifteen years, zirconia has moved from a niche framework material to one of the most widely used restorative materials in modern dentistry. Full-contour zirconia crowns, implant-supported zirconia bridges, zirconia-based hybrid abutments, and monolithic zirconia veneers are now routine in general practices and specialist clinics alike. With this shift has come a question that many clinicians encounter the first time they need to adjust a zirconia restoration chairside: why didn't my usual diamond bur work?

The answer lies in the fundamental physical properties of zirconia itself. It is a polycrystalline ceramic that sits near the top of the hardness scale for dental materials harder than enamel, harder than porcelain, and harder than most metals used in dentistry. Standard diamond burs, designed and optimised for enamel and conventional ceramics, wear out astonishingly quickly when used on sintered zirconia sometimes within seconds of contact.

This guide answers the question "what are zirconia cutting dental burs?" from the ground up: what makes them different, how they're constructed, when they're genuinely needed, and how to use and care for them so that every restoration you adjust and every bur you invest in performs as intended.

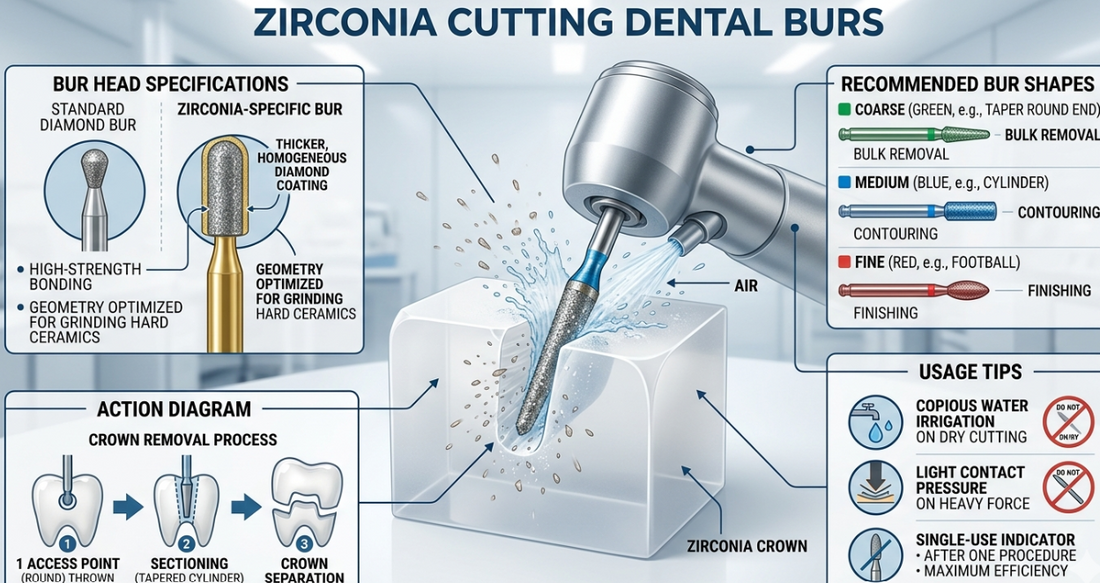

What Are Zirconia Cutting Burs, Exactly?

At their simplest, zirconia cutting burs are diamond-coated rotary instruments specifically engineered to remove material from sintered (fully fired, fully hardened) zirconia restorations efficiently and with manageable heat generation. They are used in high-speed handpieces, just like conventional diamond burs, but differ from standard diamond burs in three important respects: diamond particle concentration and grit, head geometry particularly the use of spiral or helical flute designs and the engineering of the bonding matrix that holds the diamond particles in place.

The need for these instruments arises directly from a mismatch between zirconia's hardness and the wear resistance of conventional diamond burs. A standard diamond bur perfectly adequate for enamel, porcelain, and lithium disilicate will lose its diamond particles at a dramatically accelerated rate when used on sintered zirconia, often becoming a smooth, non-cutting metal shank within a single adjustment. Zirconia cutting burs are built with this challenge specifically in mind.

In short: a zirconia cutting bur is not a marketing variant of a standard diamond bur it is a purpose-engineered instrument category that exists because zirconia's material properties demand it. Understanding why requires a closer look at zirconia itself.

Understanding Zirconia — Why It's So Hard to Cut

Zirconia used in dentistry is, almost universally, yttria-stabilised tetragonal zirconia polycrystal abbreviated Y-TZP. Understanding the two words "tetragonal" and "polycrystal" explains nearly everything about why this material behaves so differently under a rotary cutting instrument compared to glass-based ceramics or natural tooth structure.

A Polycrystalline, Not Glassy, Structure

Feldspathic porcelain and lithium disilicate are glass-ceramics a glassy matrix with embedded crystals. Zirconia, by contrast, is almost entirely crystalline, composed of densely packed zirconium dioxide grains with no significant glassy phase. This dense crystalline packing is what gives zirconia its exceptional hardness and fracture toughness but it also means there is no "soft" glassy phase for a cutting instrument to gain purchase on. Every square micron of the surface presented to a diamond bur is hard crystalline material.

Transformation Toughening

Y-TZP zirconia derives much of its remarkable fracture resistance from a phenomenon called transformation toughening. Under stress, zirconia grains can transform from a tetragonal crystal structure to a monoclinic structure, a transformation that involves a slight volume expansion. This expansion compresses and effectively "closes" any propagating crack tip, halting crack growth before it can extend through the material. This is the mechanism that makes zirconia so resistant to fracture compared to glass ceramics.

However, this same transformation mechanism has a thermal sensitivity: excessive heat at the cutting interface the kind generated by a worn or inappropriate bur can trigger uncontrolled phase transformation at the surface, creating microcracking and surface degradation that compromises the long-term strength of the restoration. This is one of the central reasons why zirconia cutting technique (not just bur selection) matters so much.

Zirconia Burs vs. Standard Diamond Burs: Key Differences

If both instrument types use diamond as the cutting medium, what actually distinguishes a "zirconia bur" from a standard diamond bur? The differences are concentrated in three engineering decisions, each addressing a specific aspect of the zirconia-cutting challenge.

Anatomy of a Zirconia Cutting Bur

Understanding the individual components of a zirconia bur's construction helps clarify exactly where the engineering investment goes and why these instruments, while costing more per unit than standard diamond burs, deliver proportionally greater value when matched to the right task.

Types of Zirconia Burs and Their Clinical Roles

Not all zirconia cutting burs are designed for the same task. As with any restorative bur category, shape and grit determine the specific role each instrument plays across the gross-reduction-to-polish workflow.

The typical clinical sequence moves from coarse spiral bur (gross reduction) to a medium or fine zirconia-rated bur (contour and margin refinement) to a polishing point (final surface finish). Skipping steps in this sequence particularly the polishing step leaves a surface roughness on zirconia that is well documented to accelerate wear of opposing natural teeth and restorations.

Pre-Sintered vs. Sintered Zirconia: Two Very Different Cutting Tasks

One of the most important and most commonly misunderstood distinctions in zirconia instrumentation is the difference between cutting zirconia in its pre-sintered ("green" or "white") state versus its fully sintered state. These represent two entirely different material conditions that demand different instruments entirely.

The DiaGold Spiral Zirconia Bur (H856) Explained

Among the dedicated zirconia instruments in the GoldBurs DiaGold range, the H/198-022XC Spiral Zirconia Bur using the H856 head form designation is positioned as the core specialist tool for full-contour zirconia adjustment. Understanding what makes this specific design effective illustrates the broader engineering principles behind zirconia bur design as a category.

The Spiral Geometry Advantage

The helical flute pattern milled into the working head of the H856 design serves a function analogous to the flutes on a drill bit: as the bur rotates and engages the zirconia surface, ground material is mechanically channelled away from the cutting zone along the spiral grooves rather than accumulating and packing against the diamond surface. This continuous clearance keeps fresh diamond particles in contact with the zirconia and allows water coolant directed at the cutting site to actually reach the interface rather than being blocked by a layer of compacted debris.

The practical effect of this design, compared to a smooth-surfaced conventional taper bur used on the same material, is a meaningful reduction in heat accumulation at the cutting site important given zirconia's sensitivity to thermally induced phase transformation discussed earlier in this guide.

24K Gold-Plated Bonding Matrix

As with the rest of the DiaGold range, the H856 spiral zirconia bur uses a 24-karat gold-plated layer over its nickel-bonded diamond matrix. On a material as abrasion-resistant as zirconia, particle retention is the single biggest determinant of working life. The additional lateral support the gold plating provides to each diamond particle directly translates into more adjustment cycles before the bur's cutting efficiency drops below clinically useful levels and the visible gold wear pattern provides a clear signal of when that point has been reached.

• Spiral/helical flute design for continuous chip evacuation during zirconia cutting
• Coarse diamond concentration matched to zirconia's hardness and abrasion resistance
• 24K gold-plated bonding matrix for extended particle retention and visible wear indication
• Multi-use rated autoclave compatible for repeated clinical use across cases
• Available in FG shank for chairside adjustment of full-contour zirconia crowns and bridges
• Available in 10-pack configurations for practices with regular zirconia case volume

How to Use Zirconia Burs Correctly: A Step-by-Step Protocol

Even the best-engineered zirconia bur will underperform and may damage the restoration if used with the technique appropriate for porcelain or enamel. The following protocol reflects current best practice for adjusting sintered zirconia restorations chairside.

1. 1

   Select a Zirconia-Specific Bur for the Task

   Confirm the bur is designated for zirconia use coarse spiral geometry for gross adjustment, or a fine zirconia-rated finishing bur for refinement. Do not substitute a standard porcelain finishing diamond, even temporarily, as this will dull rapidly and may not actually remove material efficiently, leading to a tendency to apply more pressure which compounds the problem.

2. 2

   Set High Speed with Maximum Water Irrigation

   Operate at the higher end of the handpiece's rated range typically 200,000 to 300,000 RPM with the water coolant flow set to maximum. Zirconia's low thermal conductivity means heat generated at the cutting interface does not dissipate through the restoration; it stays concentrated at the surface being cut. Irrigation is the primary mechanism for removing that heat.

3. 3

   Use a Penciling / Grooving Technique for Significant Reduction

   Rather than attempting to grind down a broad surface in one pass, score the area with a series of parallel grooves using the tip of the spiral bur, then remove the ridges between grooves in a second pass. This reduces the contact area (and therefore the cutting load and heat generation) at any given moment, while maintaining overall removal efficiency.

4. 4

   Apply Light, Intermittent Pressure

   As with all ceramic cutting, let the diamond do the work. Apply only enough pressure to maintain contact and progress roughly 50–150 grams of force. Pause periodically rather than maintaining continuous heavy contact, both to allow heat dissipation and to assess progress against the adjustment target (using articulating paper for occlusal contacts, for example).

5. 5

   Monitor for Heat — The Bur Should Never Feel Hot

   If the bur feels warm to the touch immediately after use, irrigation is inadequate, the bur is worn, or excessive pressure is being applied. A correctly used zirconia bur with adequate water cooling should remain at or near ambient temperature even after sustained use. Persistent heat is a signal to stop and reassess technique or instrument condition before continuing.

6. 6

   Transition to Fine-Grit and Polishing for Any Surface That Will Remain in Function

   Any zirconia surface adjusted with a coarse bur and left in occlusal or proximal contact must be refined with a fine-grit zirconia bur and then polished with rubber or diamond-impregnated polishing points before the patient leaves the chair. An unpolished, coarse-cut zirconia surface is measurably more abrasive to opposing enamel and restorations than a polished or glazed surface.

When You Actually Need a Zirconia-Specific Bur

Not every practice needs an extensive zirconia bur inventory but every practice that places or adjusts zirconia restorations needs at least one zirconia-rated bur readily available. The following scenarios are the most common situations in which a zirconia-specific instrument becomes necessary.

Common Mistakes When Using (or Not Using) Zirconia Burs

The following mistakes represent the most frequent and consequential errors clinicians and technicians make when adjusting zirconia restorations each directly addressed by correct bur selection and technique.

Mistake 1: Reaching for a Standard Diamond Bur "Just for a Quick Adjustment"

The assumption that a brief, minor adjustment doesn't justify changing to a zirconia-rated bur is one of the most common and most costly habits in restorative practice. Even brief contact between a standard diamond bur and sintered zirconia can strip enough particles to render the bur ineffective for its intended future use on porcelain or enamel, while simultaneously failing to achieve efficient material removal on the zirconia itself.

Mistake 2: Insufficient Irrigation "Because It's Just a Small Adjustment"

Heat generation during zirconia cutting is not proportional to the amount of material removed in a simple linear way even brief, localised contact without adequate cooling can generate temperatures sufficient to affect the surface microstructure. Maximum irrigation should be the default for any zirconia cutting, regardless of how minor the adjustment appears.

Mistake 3: Continuing to Use a Bur That Has Become Hot or Slow-Cutting

A zirconia bur that has begun to lose cutting efficiency does not simply become "less effective" it begins generating substantially more heat for the same clinical effort, while removing less material. Continuing to use such a bur compounds both problems simultaneously. The correct response is to switch to a fresh or less-worn instrument immediately.

Mistake 4: Skipping the Polishing Step After Coarse Adjustment

A surface adjusted with a coarse spiral zirconia bur and left without fine-grit refinement and polishing presents a significantly rougher surface than the original glazed or polished zirconia surface. Left in occlusal function, this roughness accelerates wear of the opposing dentition an outcome that is entirely avoidable with a 2–3 minute finishing sequence.

Mistake 5: Using Zirconia Burs on Pre-Sintered Frameworks (or Vice Versa)

As discussed earlier, pre-sintered and sintered zirconia are mechanically very different materials. Using an expensive sintered-zirconia-rated diamond bur on soft pre-sintered material is unnecessary (a carbide bur is more appropriate and cost-effective at this stage) and using a pre-sintered shaping tool on fully sintered zirconia will be ineffective and may damage the instrument.

Caring for Zirconia Burs and Maximising Their Lifespan

Because zirconia-specific burs typically represent a higher per-unit investment than standard diamond burs, proper care and maintenance protocols have a proportionally greater impact on the overall economics of zirconia adjustment work. The DiaGold multi-use design philosophy is built around exactly this consideration.

• Ultrasonic clean before every autoclave cycle: Zirconia debris that becomes baked onto the diamond surface during autoclaving is extremely difficult to remove afterward and will permanently reduce cutting efficiency. A thorough ultrasonic clean immediately after use, before sterilisation, is essential.
• Inspect the spiral grooves under magnification: The chip-clearing channels that make spiral zirconia burs effective can themselves become clogged with compacted debris if not cleaned promptly. Use magnification to confirm the grooves are clear before each use.
• Use dedicated autoclave holders: Contact between burs during sterilisation can damage the diamond surface before the bur is even used clinically. Perforated bur blocks that isolate each instrument prevent this.
• Track cumulative use against expected lifespan: Most zirconia-rated DiaGold burs are designed for multiple full restoration adjustments before the gold plating wear indicator signals replacement. Maintain a simple tally system per instrument.
• Segregate zirconia burs from other categories: Never mix zirconia-rated burs into a general-purpose tray where they might be reached for porcelain or enamel tasks and vice versa. Cross-use accelerates wear of both the zirconia bur (on softer materials, less critically, but still unnecessarily) and standard burs (catastrophically, if used on zirconia).
• Purchase in 10-packs for predictable case-based costing: For practices with regular zirconia case volume, a 10-pack of the H856 spiral zirconia bur provides a straightforward per-case cost basis and ensures a fresh instrument is always available when an older one reaches end of life.

Choosing the Right Zirconia Burs for Your Practice or Lab

For practices and laboratories building or expanding their zirconia instrumentation, the following selections from the GoldBurs catalogue represent a practical, workflow-based starting point covering the most common zirconia adjustment scenarios.

Conclusion

Zirconia cutting dental burs exist because zirconia itself represents a step change in the hardness and abrasion resistance of materials routinely encountered in restorative dentistry. They are not a premium variant of standard diamond burs but a purpose-engineered category combining coarser, denser diamond particles, spiral chip-clearing geometry, and reinforced bonding matrices built specifically to remain effective against a dense polycrystalline ceramic that would rapidly destroy conventional instruments.

For any practice or laboratory working with full-contour zirconia crowns, implant-supported zirconia restorations, or monolithic zirconia of any kind, having at least one zirconia-rated bur on hand is not optional it is the difference between an efficient, low-heat, controlled adjustment and a frustrating, ineffective attempt with an instrument that was never designed for the task.

The DiaGold H/198-022XC Spiral Zirconia Bur (H856), with its helical flute design and 24K gold-plated bonding matrix, represents the application of these engineering principles in a single, multi-use instrument suited to the chairside adjustment scenarios every zirconia-using practice will eventually encounter. Paired with fine-grit finishing burs and polishing points, it completes a workflow that protects both the restoration's surface integrity and the longevity of the practice's instrument investment.

Explore the complete DiaGold zirconia cutting bur range including the H856 spiral zirconia bur, fine-grit finishing instruments, and polishing points referenced in this guide at GoldBurs.com. Technical specification sheets and the full product catalogue are available for download.
