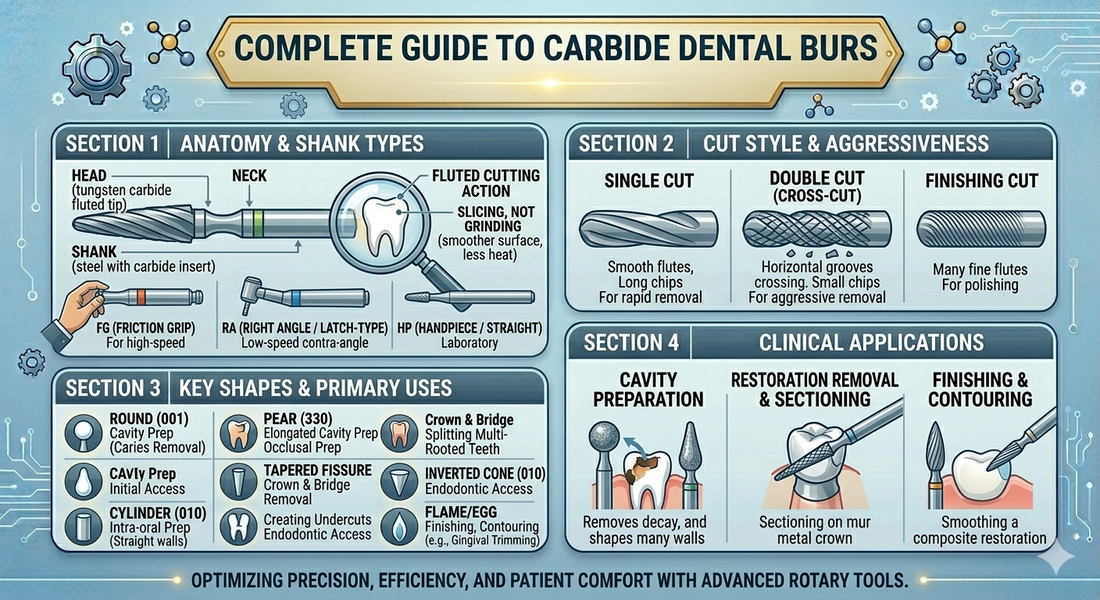

What Are Carbide Dental Burs and When to Use Them

The name "carbide bur" refers specifically to the material from which the cutting head is manufactured: tungsten carbide, a chemical compound of tungsten and carbon atoms. It is one of the hardest engineering materials available, measuring approximately 9–9.5 on the Mohs hardness scale — harder than steel by a factor of roughly three and resistant to the deformation and dulling that standard steel burs experience quickly under clinical load.

Tungsten carbide's key properties make it uniquely suited to dental cutting applications. Its extreme hardness allows sharp cutting edges to be machined into the flutes and to retain that sharpness through repeated clinical use. Its rigidity — it deforms under load far less than softer metals — ensures that the precise geometry of those cutting edges is maintained throughout the bur's service life. And its ability to be machined to extremely tight tolerances allows manufacturers to produce the consistent, repeatable flute geometries that make the surface quality of a carbide bur so predictable.

When a tungsten carbide bur is manufactured, the carbide powder is first formed into the desired bur head shape under extreme pressure, then sintered (heated to near-melting temperatures) to bond the particles into a solid, dense cutting head. The flutes — the cutting edges — are then precision-ground to exact geometries that determine how the bur will cut. The quality of the tungsten carbide powder, the precision of the sintering process, and the accuracy of the flute grinding are all manufacturing variables that separate premium carbide burs from economy alternatives.

The cutting mechanism of a carbide bur is fundamentally different from a diamond bur, and understanding this distinction at a mechanical level explains why each instrument type produces different results on different substrates — and why using the wrong instrument for a procedure step leads to compromised outcomes.

Shearing, Not Grinding

A carbide bur cuts through material by shearing — each flute on the rotating head acts as a miniature blade that slices into the target material, removes a thin layer or chip, and ejects the debris away from the cutting zone. This is a fundamentally different action from diamond abrasion, which grinds material into fine particles through repeated microscopic impacts. Shearing produces a cleaner, smoother cut surface than grinding because it removes material in controlled, discrete increments rather than eroding it gradually.

The clinical consequences of this distinction are significant. Carbide burs leave a smoother prepared surface than diamond burs at equivalent procedure stages — particularly on dentin, composite, and other substrates that respond to cutting rather than brittle fracture under abrasion. They also generate less heat than diamond burs when cutting these softer substrates, because the shearing action requires less friction than grinding. This lower heat generation is a meaningful advantage when working in close proximity to the pulp.

Rake Angle and Cutting Character

The angle at which each carbide flute contacts the material — the rake angle — determines how aggressively the bur cuts and how the cutting force distributes. A positive rake angle (more acute flute angle) cuts more aggressively and quickly, removing more material per revolution, but dulls faster. A negative rake angle (more obtuse flute angle) cuts less aggressively but maintains its edge longer and produces smoother surfaces. Trimming and finishing carbide burs use more gentle rake angles with more flutes to produce the smooth, refined surface textures required in the final stages of restoration work.

The flutes on a carbide bur — the number of cutting blades, their geometry, and whether they are plain-cut or cross-cut — are the primary variables that determine how aggressively the bur removes material and how smooth the resulting surface will be. Understanding this relationship is essential to selecting the right carbide bur for each stage of a procedure.

Plain Cut vs. Cross-Cut

Plain cut (straight flute) burs have smooth cutting blades running parallel or slightly helical to the bur's long axis. They cut smoothly and cleanly, producing excellent surface quality, but can clog with debris more readily in some materials. Cross-cut burs have secondary cuts across the primary flutes, creating a serrated blade effect. These secondary cuts significantly increase debris clearance, allowing faster material removal — but the interrupted cutting action generates more heat and leaves a slightly rougher surface than plain cut at the same flute count. For operative carbide burs used in cavity preparation, cross-cut designs are preferred for their speed and efficiency.

Flute Count: From 6 to 30+

The number of flutes on a carbide bur directly determines the balance between cutting speed and surface smoothness. Fewer flutes = more material removed per revolution but rougher surface. More flutes = less material removed per revolution but significantly smoother surface finish.

GoldBurs' Operative & Surgical carbide burs are the most popular six-bladed instruments in the range — engineered for the aggressive cutting efficiency that cavity preparation and surgical procedures demand. The Trimming & Finishing range steps up to 8, 12, 20, and 30-flute designs, each producing progressively smoother surface textures as the restoration approaches completion. The result is a logical, clinically sequenced instrument family that takes a restoration from initial access through to a finish-ready surface.

GoldBurs organizes its carbide bur catalog into three distinct product lines, each designed for a different stage of clinical work and a different substrate type. Understanding these three lines — and what separates them — is the foundation of building a complete, efficient carbide bur inventory.

Head shape is what determines the geometry of the cut — how the bur interacts with cavity walls, preparation floors, and restoration surfaces. GoldBurs' full carbide range covers every preparation and finishing geometry in clinical use across all three product lines.

GoldBurs' Operative & Surgical carbide burs are described by the company as "the most popular six-bladed operative and surgical burs," and for good reason. These instruments represent the workhorse carbide for everyday clinical dentistry — the burs that handle the core, demanding hard tissue cutting tasks that define restorative dentistry.

The six-blade geometry is deliberately aggressive. At high speed in a turbine handpiece, six cutting flutes make efficient contact with enamel and dentin, removing material rapidly while maintaining the clean cutting action that distinguishes carbide from diamond. The cross-cut variants add secondary flute cuts that dramatically increase debris clearance and cutting speed — particularly valuable in deep cavity preparations where debris accumulation would otherwise slow material removal.

If operative carbide burs are the beginning of the restorative workflow, trimming and finishing carbide burs are its critical final chapter. These instruments bridge the gap between a completed restoration placement and the polished, biologically smooth surface that every restored tooth should ultimately have — and they perform this role with a level of surface quality that cannot be achieved with operative burs or diamond burs at equivalent procedure stages.

The defining characteristic of T&F carbide burs is their high flute count — typically 8, 12, 20, or 30 blades, compared to the 6 blades of operative carbides. More flutes means each blade removes a smaller, thinner layer of material per revolution — producing progressively smoother surfaces. At 30 flutes, a finishing carbide bur produces a surface quality that approaches polishing, dramatically reducing the work required from subsequent rubber polishing instruments and significantly improving the biological quality of the final restoration surface.

GoldBurs' T&F range covers every shape required for comprehensive restoration finishing: Round Ball, Flame, Taper Cone, Chamfering, Egg, Dome End Taper, Round End Taper, Flat End Taper, Bullet, Needle, T-Series Taper Round End, Interproximal (7606 and 9103), Flame Burs, Torpedo, Inv-Taper, Pointed Taper, and Straight Cylinder — all available in 10-pack quantities and priced for the real economics of busy clinical practice.

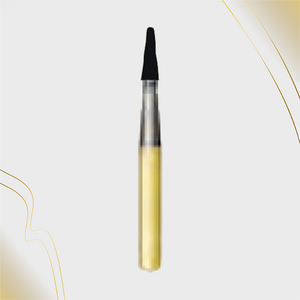

When Do You Need Metal Cutting Burs?

Any procedure involving the removal or sectioning of metal-containing restorations requires purpose-built metal cutting instruments. Attempting to cut through a PFM crown or cast metal restoration with a standard operative carbide bur is inefficient at best and risks rapid bur dulling, excessive heat generation, and extended procedure time. The X-REX and T-REX series addresses this by providing instruments whose cutting geometry and material selection are specifically optimized for metal substrates.

Primary applications include: sectioning and removal of PFM (porcelain-fused-to-metal) crowns; removal of full metal cast crowns; sectioning metal-based partial denture frameworks; cutting through cast metal posts for post removal; and crown and bridge sectioning in complex extraction cases where metal restorations prevent routine sectioning with standard carbide. GoldBurs also offers a Metal Cutting Gold Carbide Bur (G/1556, 1956 series) for specialized metal cutting applications.

The diamond-versus-carbide decision is not a choice between better and worse instruments — it is a question of matching cutting mechanism to substrate and procedure stage. Both instrument types have non-negotiable roles in clinical dentistry, and the clinician who uses both strategically, understanding exactly when to reach for each, will consistently produce better preparations in less time with less patient discomfort than one who defaults to one type for everything.

The most efficient clinical philosophy — and the one GoldBurs is built to support — uses diamond burs where enamel, ceramic, and zirconia demand their unique abrasive capabilities, and deploys carbide burs where the priority shifts to clean cutting, tactile control, surface refinement, or material removal in substrates where diamond would be inefficient or inappropriate. In practice, most restorative procedures use both, in sequence, with each instrument type doing what it does best.

Carbide burs are precision instruments that reward careful maintenance with extended service life and consistent cutting performance. A well-maintained multi-use carbide bur will significantly outlast a poorly maintained one — and proper care protocols protect both instrument investment and patient safety.

Conclusion

Carbide dental burs are not a single instrument — they are a family of three distinct product lines, each serving a fundamentally different clinical role. Operative and surgical carbides provide the aggressive cutting efficiency that makes cavity preparation and surgical procedures possible. Trimming and finishing carbides provide the surface quality that transforms completed restorations into biologically excellent ones. Metal cutting X-REX and T-REX burs handle the demanding crown removal tasks that standard carbides cannot efficiently address.

Understanding these distinctions — what each carbide line does, when to deploy it, and how it complements the diamond instruments in the same workflow — is the foundation of instrument-literate clinical dentistry. The clinician who deploys each instrument type where it performs best will consistently produce better preparations, in less chair time, with less patient discomfort, than one who relies on habit rather than understanding.

At GoldBurs, the carbide range reflects more than three decades of dedication to one principle: the perfect bur at the lowest price possible. From the most popular six-bladed operative carbides to the award-winning T-REX metal cutting series and the comprehensive T&F finishing collection — every instrument is manufactured to the highest industry standards, available in 10, 50, and 100-pack quantities, and priced for the real economics of practices that can't afford to compromise on instrument quality or instrument cost.
