Trimming & Finishing Burs Explained: Why the Flat End Taper Belongs in Your Bur Block

What Are Trimming & Finishing Burs?

Every restoration passes through the same final stage. The crown has been seated, the composite has been cured, or the margin has been prepared, and now the surface needs to be refined. Excess material has to go, edges have to be smoothed, and the contour has to look and feel natural. The instruments that handle this stage are called trimming and finishing burs, often shortened to T&F burs.

Unlike the larger burs used to open a cavity or remove tooth structure, these instruments are built for control. They remove small amounts of material with a steady, predictable action. That is why you will find them in almost every operatory and dental lab, sitting close to the handpiece for the last few minutes of a procedure that decides how good the result looks.

Featured Products

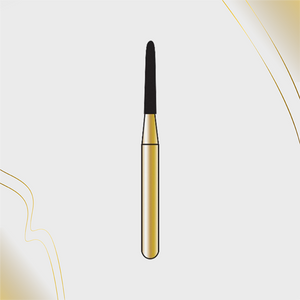

7642 10-Pk Multi use Trimming & Finis...

$49.90

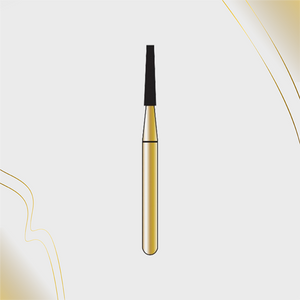

7702 10-Pk Multi use Trimming & Fini...

$49.90

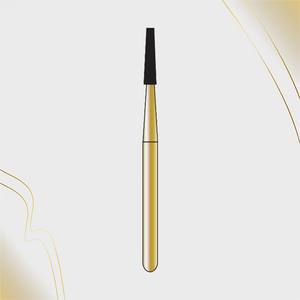

7713 10-Pk Multi use Trimming & Finis...

$49.90

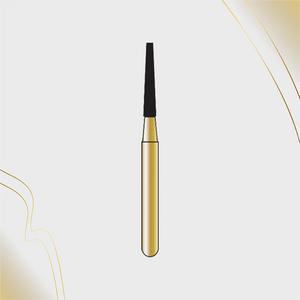

9642 10-Pk Multi use Trimming & Finis...

$59.90

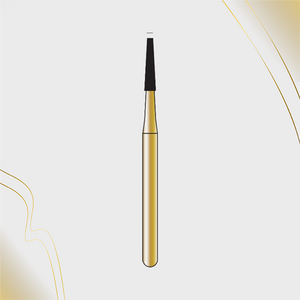

9713 10-Pk Multi use Trimming & Fin...

$59.90

T&F burs come in many shapes round, flame, egg, bullet, needle, and several tapered designs. Each shape reaches a different part of the tooth or restoration. In this guide we focus on one of the most useful of them, the flat end taper. You will learn what it is, how it differs from similar shapes, where it is used, and how to pick the right one from the Flat End Taper collection at GoldBurs.

If you are new to dental instruments, do not worry. We start with the basics and build from there. If you are more experienced, you can skip ahead using the table of contents above.

Why Carbide Is Used for Finishing

Most trimming and finishing burs have a head made from tungsten carbide, a very hard metal compound, attached to a stainless steel shank. The head is cut with fine spiral blades. Instead of grinding a surface with abrasive grains the way a diamond does, a carbide bur slices away thin layers of material with its cutting edges.

This slicing action has a few practical benefits for finishing work:

• Smoother surfaces on many materials. Multi-bladed carbide can leave composite and acrylic noticeably smoother than a coarse abrasive.
• Less heat when used correctly. Sharp blades cut cleanly, so there is less friction on the surface.
• Good control at lower pressure. Light contact is usually enough, which helps you stay precise around margins.
• Reusable design. With proper cleaning and sterilization, a quality carbide bur can be used for multiple procedures.

That said, carbide and diamond each have their place. Diamond burs are the standard choice for cutting through hard tooth enamel and ceramics, while carbide is often preferred for trimming composite, refining margins and finishing metal or acrylic. If you want to understand the diamond side of the picture, our guide to gold diamond burs for enamel reduction explains how grit and shape work in that context.

What Is a Flat End Taper Bur?

A flat end taper bur has a head that narrows gradually from the base toward the tip, like a very slim cone, but the tip itself is cut flat instead of being rounded or pointed. The combination gives the instrument two working surfaces the angled side walls and the flat end face.

The two working surfaces

The tapered sides do most of the trimming along vertical walls and margins. Because the taper is gentle, the bur can follow the natural slope of a prepared tooth or the side of a restoration without digging in. The flat end face works differently. It creates or refines a sharp, defined edge at the base of a cut, which is useful wherever a clean shoulder or a crisp junction is needed.

Why the flat tip matters

A rounded tip blends transitions and softens edges. A pointed tip reaches into tight spaces. A flat tip does something neither of them can it produces a clear, well-defined finish line. When a clinician or technician wants a margin that reads clearly, the flat end is the natural choice.

Because of this, flat end taper burs are especially popular in workflows where edge definition matters, such as crown and bridge work, and in finishing composite restorations where a clean transition between material and tooth is desired.

Flat End Taper vs. Other Finishing Shapes

Choosing a bur shape is one of the most common questions for newer clinicians and lab staff. The table below compares the flat end taper with other shapes you will see in a typical T&F range. It is a starting point, not a rule. Personal preference and case requirements always play a part.

In simple terms, the flat end taper is the choice when the edge needs to be sharp and clear. If the goal is softness or blending, another shape may serve you better. Many practices keep several of these on hand and switch between them during a single case.

Where Flat End Taper Burs Are Used

The versatility of this shape is one reason it appears in so many bur blocks. Below are the most common ways it is used, explained in plain terms.

Crown and bridge work

During crown preparation, a defined margin helps the lab produce a restoration that fits accurately. A flat end taper bur can refine axial walls and clean up the base of the preparation so the finish line is easy to read. In the lab, technicians also use similar shapes to adjust and trim frameworks and provisional materials.

Composite finishing

After a composite restoration is placed and cured, excess material often remains at the margins. A fine-bladed flat end taper bur trims this flash and levels the surface before polishing. The tapered wall follows the tooth contour, and the flat end helps establish a clean edge where composite meets enamel. For a broader workflow, the Composite & Porcelain Finishing Kit pairs finishing burs with other tools that complete the process.

Trimming provisional and acrylic materials

Temporary crowns and acrylic appliances need trimming to fit well and feel comfortable. Carbide finishing burs cut acrylic efficiently and leave a smoother surface than many alternatives, which makes the polishing step faster.

Refining preparations and removing rough edges

Sometimes a preparation has small ridges or sharp line angles left from the first cut. A finishing bur smooths these areas. Rough edges can affect how a restoration seats, so this refinement step matters more than it seems.

Lab adjustments

Dental laboratories use finishing burs on a wide range of materials. Flat end taper designs are useful for defining margins on models and dies and for trimming excess material from castings and resin work.

Blade Count and Surface Finish

Two burs can share the same shape and still behave very differently. One of the biggest reasons is the number of blades on the head. Blades are the tiny cutting edges that spiral around the bur. In general, the more blades a bur has, the finer and smoother its finish will be, and the less material it removes per pass.

Think of it like sandpaper. You start with a coarser grade to shape the surface, then move to a finer grade to smooth it. Finishing burs work the same way. Many clinicians use a lower blade count first, then follow with a higher blade count before moving to polishing points or discs.

In many catalogs, the 7-series numbers are associated with lower blade counts and the 9-series numbers with higher blade counts. Because specifications vary by product, always confirm details on the product page before you order.

Flat End Taper Range: 7-Series (7642, 7702, 7713)

GoldBurs offers a focused Flat End Taper selection inside its Trimming & Finishing Burs family. Each item is sold as a 10-pack of multi-use burs, which makes it easy to keep a supply ready for daily procedures. The first group is the 7-series, all priced from $49.90 per 10-pack.

These three burs share the same overall shape family, so the differences come down to head size and proportions. A longer, slimmer head reaches farther along a wall, while a shorter, broader head covers more surface per pass. Comparing the listed dimensions on each product page is the fastest way to see which one suits your handpiece style and typical cases.

For many general practices, keeping two sizes from this group covers most trimming needs, because one handles larger surfaces and the other manages tighter areas.

Flat End Taper Range: 9-Series (9642, 9713)

The second group is the 9-series. These are also sold as 10-packs of multi-use flat end taper burs, priced from $59.90 per pack. The price difference reflects the finer construction typically associated with this series, which is intended for smoother, more refined finishing.

A simple two-step pairing

One easy way to use both series is to think in two passes. Use a 7-series bur for the first pass, where you remove excess and establish the shape. Then switch to a matching 9-series bur to smooth what remains. The second pass leaves a cleaner surface, which reduces the time you spend polishing afterward.

This pairing is not required, and every operator develops habits over time. Still, it is a helpful way to understand why a range includes more than one series.

How to Choose the Right Bur

With five products in the Flat End Taper collection, the decision may feel confusing at first. It becomes simple once you ask four questions.

1. What material are you finishing?Composite, acrylic, metal and prepared tooth structure all respond differently. Fewer blades cut faster more blades give a smoother result.
2. How much needs to be removed?If there is a lot of excess, start with a 7-series bur. If you only need to refine or smooth, a 9-series bur is often the better fit.
3. Where is the work located?Large, open surfaces suit a broader head. Tight posterior areas or narrow margins call for a slimmer head.
4. How often will you use it?High-volume practices and labs benefit from stocking multiple packs so there is always a sharp bur ready.

If you are still unsure, start small. Order one 7-series and one 9-series pack, use them for a couple of weeks, and note which you reach for most. That real-world feedback beats any chart. If you work in a lab, the diamond shape options in the HP Diamonds Flat End Taper range can complement your carbide selection.

Basic Technique Tips

A good bur helps, but technique decides the outcome. These general habits apply to most finishing work. They are educational guidance only, and you should always follow your training and the manufacturer's instructions for use.

Use light, steady pressure

Sharp blades cut best with a gentle touch. Pushing hard does not speed things up. It creates heat, clogs the blades and makes the surface rougher. Let the bur do the work and use short, sweeping strokes.

Keep the bur moving

Holding the bur in one spot creates grooves and flat patches. Continuous motion spreads the cutting action evenly and gives a more uniform surface.

Use suitable cooling

When working intraorally, use water spray or the cooling method appropriate to the procedure. Heat is a risk for both tooth structure and restorative materials, so good cooling protects the patient and improves results.

Match the angle to the goal

Keep the tapered side against the wall for trimming, and use the flat end to define an edge. Changing the angle changes the result, so practice on a model before trying a new approach on a patient.

Follow with polishing

Carbide finishing gets a surface very smooth, but it is rarely the last step. Polishing cups, points and discs bring out the final shine. The Composite Polishing Multi-Use Kit is one example of a companion product for that stage.

Cleaning, Sterilizing and Storage

Multi-use burs stay reliable only when they are cared for properly. A worn or dirty bur cuts poorly and can affect infection control. These are common best practices, but always check the instructions provided with your burs and follow your local regulations.

• Clean promptly. Remove debris as soon as possible after use so it does not dry on the blades. An ultrasonic cleaner or a soft brush helps reach between the cutting edges.
• Sterilize between patients. Follow the sterilization method and cycle recommended by the manufacturer.
• Use a bur holder. A dedicated block, such as the Autoclave Bur Holder, keeps burs separated, organized and protected from contact damage.
• Inspect before each use. Look for chipped blades, bent shanks, discoloration or clogging. Any of these is a reason to retire the bur.
• Replace on time. Dull blades cause more heat and a rougher finish. Replacing a bur early is far cheaper than redoing a restoration.

Common Beginner Mistakes

Almost everyone makes a few of these errors early on. Knowing them in advance saves time and frustration.

• Choosing a shape only by habit. A flat end taper is not always the answer. If a soft blend is needed, a rounded shape is often better.
• Skipping the second pass. Moving straight from a lower blade count to polishing leaves visible marks. A fine finishing pass makes polishing quicker.
• Running the bur too slowly or unevenly. Use the speed range recommended for the product, and keep it consistent.
• Using one bur for too long. Multi-use does not mean unlimited use. Track how many cycles each bur has been through.
• Storing burs loose in a drawer. Contact with other instruments dulls and chips the blades.
• Ignoring the flat tip's edge. The flat end can leave a sharp corner. Use it deliberately, and soften afterward if the case calls for it.

Explore Related Finishing Shapes

Once you understand the flat end taper, it is easy to see how the rest of the T&F range fits around it. Each of the collections below solves a slightly different problem, and together they make a complete finishing set.

If you are building a starter set, a sensible mix is one flat end taper, one round end taper and one flame bur. That trio handles the majority of everyday finishing tasks. You can add specialty shapes later as your caseload demands.

Frequently Asked Questions

Conclusion

Finishing may be the last step of a procedure, but it shapes how everything else is judged. A smooth margin, a clean edge and a well-refined surface make restorations look better, feel better and often last longer. The right trimming and finishing bur makes that work faster and more predictable.

The flat end taper earns its place because it does one thing especially well it gives you a crisp, defined edge while the tapered walls follow natural contours. Paired with a rounded or flame shape, it forms the backbone of a practical finishing set.

To recap the essentials, remember these points:

• Flat end taper burs create defined edges and clean sidewalls.
• Blade count controls how aggressive or smooth the result will be.
• The 7-series (7642, 7702, 7713) suits trimming and early refinement.
• The 9-series (9642, 9713) suits final, smoother finishing.
• Good technique and regular replacement matter as much as the bur itself.

Ready to see the range for yourself? Browse the full Flat End Taper collection and compare sizes on each product page.
