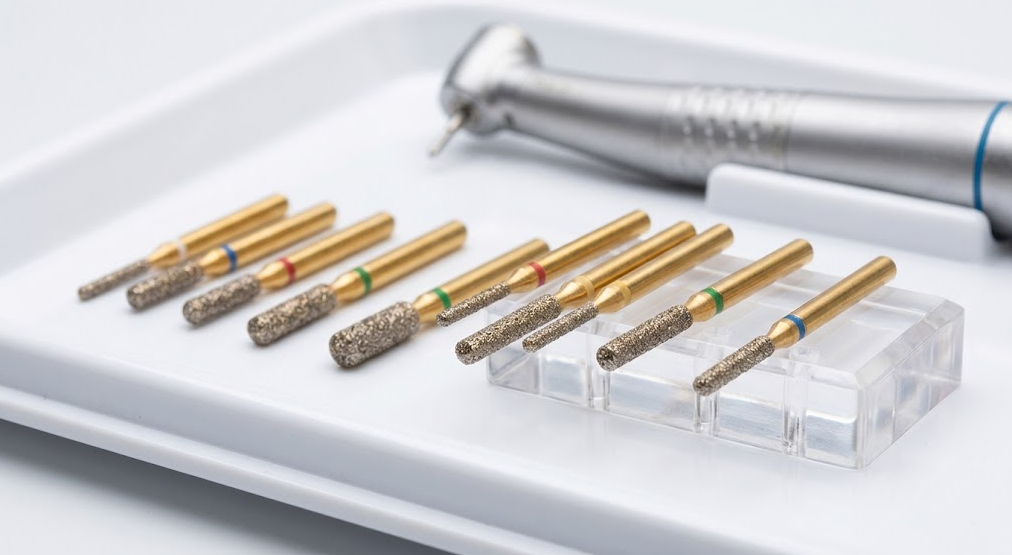

Gold Diamond Burs Beveled Cylinder: The Complete Shape, Sizing and Application Guide

What Is a Gold Diamond Beveled Cylinder Bur?

A beveled cylinder bur is a rotary diamond instrument shaped like a straight-sided cylinder with a chamfered, angled edge machined into the tip. Instead of meeting the working surface at a hard 90° corner as a standard flat-end cylinder does the beveled edge transitions gradually from the flat face into the cylindrical wall. That small geometric change has a surprisingly large clinical effect it lets a clinician cut a flat internal wall or floor and simultaneously soften the internal line angle in a single pass, without switching instruments.

Beveled cylinder burs belong to the broader family of gold diamond burs in the DiaGold range from GoldBurs, and they sit alongside close relatives such as the flat-end cylinder and round-end cylinder shapes. Clinicians reach for a beveled cylinder whenever a preparation needs a defined flat wall or floor plus a controlled internal bevel cavity preparations with a bevel at the cavosurface margin, crown preparation refinement, and finishing internal line angles on indirect restorations are the most common scenarios.

It is easy to overlook shape as a variable when a practice is stocked around a handful of generalist burs, but the geometry of the tip is doing real clinical work every time the instrument is engaged. A flat-end cylinder leaves a hard internal corner behind a round-end cylinder removes that corner entirely and replaces it with a full radius a beveled cylinder sits precisely between the two, giving the operator a repeatable, angled transition instead of relying on freehand technique to approximate a bevel with a bur that was never designed to create one. For clinicians who place a lot of composite restorations, refine crown preparations, or adjust ceramic units chairside, that distinction shows up in the quality and consistency of the finished margin.

This guide walks through the design logic behind the beveled cylinder shape, why the gold-plated diamond matrix used in DiaGold instruments changes day-to-day performance, how to select the right grit and size for a given procedure, and where this shape fits relative to the other cylinder-family burs on the shelf. Whether you are stocking your first operatory tray or refining a preparation protocol you have used for years, understanding this shape in depth will help you use it and choose between it and its close relatives with more confidence.

Explore the DiaGold Beveled Cylinder Collection

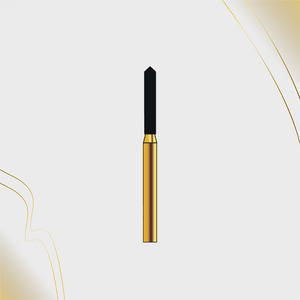

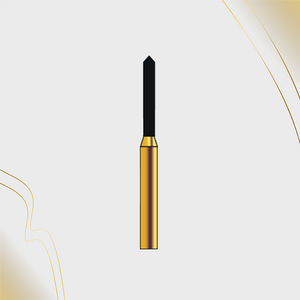

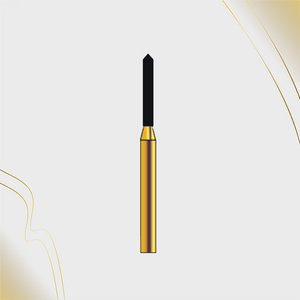

GoldBurs stocks the beveled cylinder shape across several head sizes, and the same collection page also carries the closely related flat-end cylinder options for practices that want both internal-angle geometries on hand. Every bur below ships as a 10-pack, is 24K gold-plated, and is autoclave-rated for repeated sterilisation.

Looking for the sharper internal angle instead? Browse the full Flat-End Cylinder collection, or if a fully rounded internal transition suits your case better, the Round-End Cylinder collection is the closest alternative shape. For a complete overview of every diamond shape GoldBurs carries, visit the main DiaGold Diamond Burs category.

Anatomy: Understanding the Beveled-Edge Geometry

The defining feature of this shape is the angled transition at the working end. On a straight cylinder body, the diamond coating is machined right up to a corner where the flat face meets the side wall. A beveled cylinder replaces that sharp corner with a short, angled facet typically running at roughly 45° across the edge that is also coated in diamond particles. This means the bevel itself is an active cutting surface, not just a cosmetic chamfer.

How a Beveled Cylinder Differs From Flat-End and Round-End Shapes

All three cylinder-family shapes flat-end, round-end, and beveled share the same straight-walled body, so they all cut a uniform-diameter wall as they are advanced into tooth structure or restorative material. The difference is entirely in what happens at the tip:

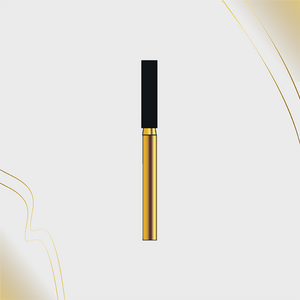

• Flat-End Cylinder: A sharp, 90° internal line angle. Ideal where a crisp, well-defined internal angle is clinically required, such as certain box forms and shoulder-style margins.
• Round-End Cylinder: A fully rounded tip that eliminates the internal line angle entirely, producing a smooth concave transition. Preferred where stress concentration at a sharp internal corner would be a liability.
• Beveled Cylinder: A controlled middle ground the tip carries a defined angled facet rather than a full radius or a sharp corner. It cuts a flat floor or wall while leaving a deliberately beveled internal transition that is easier to clean out, easier to finish, and less prone to chipping brittle margins than a razor-sharp corner.

In practical terms, a beveled cylinder is often the shape clinicians reach for when a flat-end cylinder feels slightly too aggressive at the internal angle, but a fully round-end bur would remove more of the flat floor geometry than the case calls for.

Head Diameter, Shank Length and ISO Sizing

Like every shape in the DiaGold catalogue, beveled cylinder burs are produced across a range of head diameters and shank lengths so the same geometry can be matched to anterior or posterior access, adult or pediatric anatomy, and surgical-length or standard-length preparations. Head diameter is expressed in the same ISO numbering convention used across the diamond bur industry a bur coded 012 has a nominal head diameter of 1.2 mm, a 015 has a 1.5 mm head, and so on which makes it straightforward to cross-reference a beveled cylinder against equivalent shapes from other manufacturers when updating a preparation kit.

Why 24K Gold-Plated Beveled Cylinder Burs Outperform Standard Diamonds

The shape of a bur determines what geometry it can cut the bonding matrix determines how consistently it cuts that geometry, pass after pass. This is where the 24K gold-plated construction used across the DiaGold range makes a measurable difference, and it is especially relevant on a shape like the beveled cylinder where the bevel facet is a relatively small cutting area doing precise work.

Because the bevel facet is a comparatively small, angled cutting surface, any irregularity in particle distribution shows up quickly as an uneven or "chattery" bevel line. A gold-plated matrix that holds particles evenly across that small facet is the reason DiaGold beveled cylinder burs produce a cleaner, more repeatable internal bevel than lower-grade nickel-bonded alternatives particularly once a bur has been through several sterilisation cycles.

Grit Guide: Matching Diamond Particle Size to the Task

As with every diamond bur shape, grit selection is the first decision in any procedure that uses a beveled cylinder. The shape stays constant across the grit range only the size of the diamond particles, and therefore the rate of removal and the smoothness of the resulting surface, changes.

Where Beveled Cylinder Burs Fit in Everyday Practice

Because the beveled cylinder shape produces a flat wall with a controlled internal transition, it earns a place in several distinct areas of restorative and prosthetic work rather than being tied to a single procedure.

Crown and Bridge Preparation

During crown preparation, a beveled cylinder is frequently used to refine internal line angles after the primary axial reduction has been completed with a tapered or flat-end instrument. Rounding a hard internal corner into a controlled bevel reduces stress concentration in the finished restoration and gives the ceramic or metal coping a friendlier internal geometry to seat into, without sacrificing the flat wall that retention form depends on.

Cavity Preparation and Margin Bevels

In direct restorative work, a beveled cylinder is a natural choice for placing a controlled bevel at the cavosurface margin of a preparation particularly in composite restorations where a beveled enamel margin improves the bonding surface area and helps the restoration blend more naturally into the surrounding tooth structure. The flat cylindrical body cuts the box or wall, while the angled tip lays down the bevel in the same motion.

Composite and Restoration Finishing

Fine and extra-fine grit beveled cylinder burs are also used chairside to finish the margins of an existing composite or indirect restoration, smoothing the transition between restorative material and natural tooth structure so the margin does not present a detectable ledge or ridge.

Zirconia and Lithium Disilicate Adjustment

On the laboratory or chairside adjustment side, beveled cylinder burs in the DiaGold range are also used to refine internal surfaces and connector areas on zirconia and lithium disilicate restorations, where a controlled bevel reduces the risk of a stress-raising sharp internal corner in a material that is inherently more prone to fracture from concentrated load.

Beveled Cylinder vs. Flat-End vs. Round-End Cylinder Burs

Choosing between the three cylinder-family shapes comes down to how much internal-angle transition the case actually needs. The table below summarises the practical difference at a glance.

Many practices stock all three cylinder shapes side by side precisely because the "right" internal geometry changes from case to case a beveled cylinder is often the practical compromise when neither a hard corner nor a full radius is the ideal answer for the margin or wall in front of you.

Technique Tips for Predictable, Repeatable Results

Common Mistakes to Avoid

Caring for Your Gold Diamond Beveled Cylinder Burs

• Rinse under running water immediately after use to remove gross debris, then place in an ultrasonic cleaner with enzymatic solution for 3–5 minutes before sterilisation.
• Sterilise by steam autoclave at 134°C. Avoid dry-heat sterilisation, which degrades the gold-alloy bonding matrix over repeated cycles.
• Store beveled cylinder burs in a dedicated bur block so the tip facet is never in contact with adjacent instruments bur-to-bur contact is the most common cause of chipped bevel edges.
• Inspect the tip facet under magnification before each use any visible particle loss or an uneven bevel line is a sign the bur should be retired.
• Replace fine and extra-fine finishing burs more frequently than coarse working burs, since their thinner diamond layer wears faster and the performance drop-off is less obvious at the chair.

Frequently Asked Questions

Conclusion

The beveled cylinder bur occupies a genuinely useful middle position in the cylinder-shape family it cuts the same flat, uniform-diameter wall as a flat-end cylinder, but replaces the sharp internal corner with a controlled, pre-machined bevel that many cavosurface margins, crown preparations, and ceramic adjustments benefit from. It is not a replacement for the flat-end or round-end cylinder it is a complement to both, chosen specifically when the case calls for a defined bevel rather than a hard angle or a full radius.

As with every shape in the DiaGold range, the 24K gold-plated bonding matrix is what turns that geometry into a dependable, repeatable clinical tool even particle distribution across the small bevel facet, resistance to particle pull-out under lateral load, and full compatibility with routine steam sterilisation. Matching the right grit sequence and a light, consistent technique to that shape is what produces a clean, predictable internal bevel case after case.
