Gold Diamond Burs End Cutting Cylinder: The Complete Shape and Application Guide
Table of Contents
- What Is a Gold Diamond End Cutting Cylinder Bur?
- Explore the DiaGold End Cutting Cylinder Collection
- Anatomy: How End-Cutting Geometry Differs From Side-Cutting Shapes
- Why 24K Gold-Plated Diamond Matters for End-Cutting Performance
- Grit Guide: Matching Diamond Particle Size to the Task
- Where End Cutting Cylinder Burs Fit in Everyday Practice
- End Cutting Cylinder vs. Flat-End vs. Round-End Cylinder Burs
- Technique Tips for Predictable, Repeatable Results
- Common Mistakes to Avoid
- Caring for Your Gold Diamond End Cutting Cylinder Burs
- Frequently Asked Questions
- Conclusion
What Is a Gold Diamond End Cutting Cylinder Bur?
An end cutting cylinder bur is a rotary diamond instrument with a straight cylindrical body and a flat working tip that is deliberately designed to cut aggressively when the end of the bur not just the side wall is pressed directly into tooth structure or restorative material. Most cylinder-family diamonds are primarily side-cutting instruments the tip is present mainly to define the floor of a preparation. An end cutting cylinder reverses that emphasis, giving the operator an instrument that removes material efficiently when plunged straight down, which is exactly the motion needed for flat-floor reduction, depth referencing, and cutting through an existing restoration from the occlusal surface.
End cutting cylinder burs belong to the broader family of gold diamond burs in the DiaGold range from GoldBurs, and they work alongside closely related cylinder shapes such as the flat-end cylinder and the beveled cylinder. Clinicians reach for an end cutting cylinder specifically when a procedure calls for plunge-style cutting establishing a flat occlusal or axial floor quickly, placing depth-reference grooves before a larger reduction, or sectioning through a crown, bridge, or old restoration that needs to be removed rather than reshaped from the side.
This guide walks through the design logic behind the end cutting geometry, why it behaves differently from a bur that is optimised for side-wall reduction, how the 24K gold-plated diamond matrix used in DiaGold instruments affects day-to-day performance on this particular shape, grit and sizing selection, and the specific clinical scenarios where this bur earns its place on the tray. Whether you are updating a crown-removal kit, setting up an occlusal reduction protocol, or simply deciding which cylinder shape belongs next to your flat-end and round-end burs, this reference will help you use and choose the right instrument with confidence.
DiaGold Advantage: Every end cutting cylinder bur in the DiaGold range carries an electroplated 24K gold-alloy matrix over the entire working head, including the tip face. That means the diamond coating on the end of the bur the part doing the plunge cutting is held just as securely as the coating on the side wall, so the instrument keeps its aggressive end-cutting performance through repeated sterilisation cycles rather than dulling first at the tip.
Explore the DiaGold End Cutting Cylinder Collection

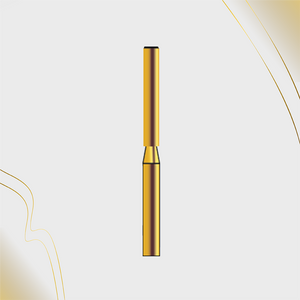

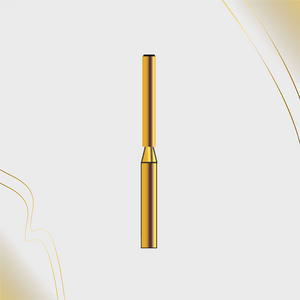

GoldBurs currently stocks the end cutting cylinder shape in three head sizes, all sharing the same catalogue reference (839) and all built for the same plunge-cutting role. Every option below ships as a 10-pack, is 24K gold-plated, and is rated for repeated steam sterilisation.

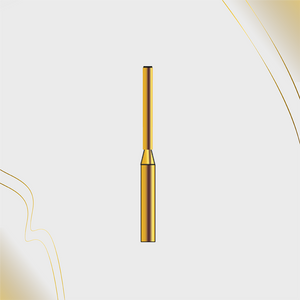

G/150-012S (839) — End Cutting Cylinder, 10-Pack $79.00$46.90-41%
Looking for a bur that leads with side-wall reduction instead of a plunge cut? The Flat-End Cylinder collection and the Beveled Cylinder collection are the closest complementary shapes. For a full overview of every diamond shape GoldBurs carries, visit the main DiaGold Diamond Burs category.
Anatomy: How End-Cutting Geometry Differs From Side-Cutting Shapes
Every cylinder-family diamond bur shares the same straight-walled body, which means all of them can cut a uniform-diameter wall as the bur is drawn along a surface. What separates an end cutting cylinder from the rest of the family is where the diamond coating is concentrated and how the head is engineered to behave under axial, plunge-style pressure rather than lateral, sweeping pressure.
End-Cutting vs. Side-Cutting Action
On a standard flat-end or beveled cylinder, the tip is diamond-coated mainly to keep the preparation floor flat as the operator moves the bur sideways the bulk of the cutting work happens along the side wall. An end cutting cylinder is engineered the opposite way the flat tip face carries a dense, continuous diamond coating specifically intended to remove material efficiently when the bur is pressed straight down into the surface, the same motion used to plunge through an occlusal surface, section a crown, or sink a depth-reference groove.
- Side-cutting shapes (Flat-End, Beveled, Round-End Cylinder): Optimised for lateral, sweeping strokes that shape a wall or floor as the bur travels across the surface.
- End cutting cylinder: Optimised for axial, plunge-style strokes where the tip is doing the primary cutting ideal wherever the clinician needs to go straight down through material rather than sideways across it.
In practice, many procedures use both actions in sequence an end cutting cylinder plunges a flat floor or a depth groove quickly, and a side-cutting shape then refines the walls around it. Understanding which action a given shape is built for prevents the common mistake of using a side-cutting bur for plunge work, where it cuts inefficiently and generates unnecessary heat.
Head Diameter, Shank Length and ISO Sizing
End cutting cylinder burs in the DiaGold range are produced across several head diameters so the same plunge-cutting geometry can be matched to the width of the floor or groove a case requires. Diameter is expressed using the same ISO numbering convention used across the diamond bur industry a bur coded 012 has a nominal head diameter of 1.2 mm, a 014 has a 1.4 mm head, and a 016 has a 1.6 mm head which makes it straightforward to select the right width for a given occlusal table, access opening, or crown-sectioning task, and to cross-reference against equivalent shapes from other manufacturers.
839Catalogue reference shared across sizes
1.2–1.6mmAvailable head diameters in the range
50%Diamond particle height held in the gold matrix
134°CRated repeated-autoclave temperature
Why 24K Gold-Plated Diamond Matters for End-Cutting Performance
An end cutting bur's tip face works under a different kind of load than a side-cutting bur's tip. Axial, plunge-style pressure concentrates force straight down onto the flat working face, and any weakness in how the diamond particles are bonded there shows up immediately as reduced cutting efficiency and increased heat generation. This is exactly where the 24K gold-plated construction used across the DiaGold range makes the most measurable difference.
Why Diamond Over Carbide
- Abrasive, compressive cutting action rather than a shearing action reduces micro-fracture risk when plunging into enamel or ceramic
- Consistent removal rate under axial pressure, which is the dominant load type for this shape
- Smoother resulting floor surface, useful when the plunge cut also serves as a depth reference or preparation floor
- Available across a full grit sequence so the same shape can rough-cut a groove and then refine it
Why Gold-Plated Over Generic Diamond
- Electroplated gold-alloy matrix holds particles securely at the tip face, where axial cutting load is concentrated
- Uniform particle distribution across the full end face no thin spots that cut inconsistently under plunge pressure
- Corrosion resistance and full autoclave compatibility at 134°C over repeated sterilisation cycles
- Shanks machined to ISO tolerances, so the head runs true with no wobble that would deflect a straight plunge cut
Because the tip face on an end cutting cylinder is doing the majority of the work, any irregularity in particle distribution there is far more noticeable than it would be on a bur designed for side-wall reduction. A gold-plated matrix that holds particles evenly across that tip face is the reason DiaGold end cutting cylinder burs stay efficient at plunging straight, flat-bottomed cuts through more procedures than lower-grade nickel-bonded alternatives, particularly after several rounds of autoclave sterilisation.
Grit Guide: Matching Diamond Particle Size to the Task
As with every diamond bur shape, grit selection is the first decision when using an end cutting cylinder. The plunge-cutting geometry stays the same across the grit range only the size of the diamond particles, and therefore the removal rate and resulting surface finish, changes.
Coarse
Rapid Sectioning and Bulk Plunge Cuts
Used when a crown, bridge, or bulky restoration needs to be sectioned or removed quickly, or when a large amount of material must be plunged through in a short amount of chair time.
Medium
Primary Working Grit
The workhorse grit for occlusal flat-floor reduction and most depth-cut groove placement. Balances an efficient plunge-cutting rate with a floor surface that is already close to what the finishing step needs.
Fine
Floor and Groove Refinement
Used to clean up and smooth a flat floor or depth-reference groove once the primary shape has been established, producing a surface suitable for bonding procedures or an accurate digital scan.
Extra Fine
Final Surface Polish
Reserved for the last pass over a visible or functional flat surface where minimal further material removal and maximum smoothness are the priority.
Selection Principle: Start with the coarsest grit that safely achieves the required depth of cut, then step down through medium and fine grits to refine the floor. Attempting to both plunge-cut and finish a floor with a single coarse bur almost always leaves a rougher, less predictable surface than a short, deliberate grit sequence.
Where End Cutting Cylinder Burs Fit in Everyday Practice
Because the end cutting cylinder shape is purpose-built for plunge-style cutting, it earns a distinct place on the tray rather than duplicating what a flat-end or round-end cylinder already does.
Occlusal and Flat-Floor Reduction
When a preparation needs a flat, even occlusal or axial floor established quickly as in crown preparation or certain onlay preparations an end cutting cylinder can plunge directly into the surface and establish that floor far more efficiently than a side-cutting shape working laterally. Once the floor is roughed in, a fine-grit pass or a switch to a side-cutting shape refines the walls around it.
Crown and Restoration Sectioning or Removal
End cutting cylinder burs are frequently used to section an existing crown, bridge retainer, or bulky restoration that needs to be removed rather than reshaped. The aggressive tip-face cutting action lets the operator plunge through the restorative material in a controlled, straight line, which is exactly the access geometry needed before a crown can be safely sectioned and lifted off.
Depth-Cut Reference Grooves
In preparations that rely on depth-reference grooves a technique widely used in veneer and crown reduction an end cutting cylinder of known diameter can plunge a precise, straight-walled groove to a defined depth far more predictably than trying to create the same reference with a side-cutting shape. The flat tip face also produces a groove with a consistent floor, which is easier to read visually as the surrounding enamel is reduced.
Post Space and Access Cavity Refinement
In endodontic and post-space work, an end cutting cylinder is useful for refining the straight-line access created during canal preparation, plunging cleanly through remaining coronal structure or old restorative material without the lateral drift that a side-cutting bur can introduce when the operator is trying to go straight down rather than sideways.
End Cutting Cylinder vs. Flat-End vs. Round-End Cylinder Burs
Choosing between the cylinder-family shapes comes down to whether the case calls for plunge-style cutting or lateral, side-wall shaping. The table below summarises the practical difference at a glance.
| Shape | Primary Cutting Action | Best Suited For | Typical Grit |
|---|---|---|---|
| End Cutting Cylinder | Axial / plunge tip face is the primary cutting surface | Flat-floor reduction, crown sectioning, depth-cut grooves, straight-line access | Coarse → Medium |
| Flat-End Cylinder | Lateral side wall is the primary cutting surface, sharp 90° internal angle | Box forms, shoulder margins, defined internal angles | Coarse → Medium |
| Beveled Cylinder | Lateral side wall cuts, angled tip facet creates a controlled internal bevel | Cavosurface bevels, internal-angle refinement | Medium → Fine |
| Round-End Cylinder | Lateral full radius removes the internal line angle entirely | Stress-relief zones, rounded internal transitions | Medium → Fine |
Many practices keep an end cutting cylinder alongside their flat-end and beveled cylinders precisely because the plunge action it offers cannot be efficiently reproduced by a side-cutting shape reaching for the wrong shape for a plunge task simply means cutting more slowly and generating more unnecessary heat for the same result.
Technique Tips for Predictable, Repeatable Results
Run at Full High Speed
End cutting cylinder diamonds, like other DiaGold shapes, are designed for high-speed air-turbine or electric handpieces. Running the bur below its intended speed reduces plunge-cutting efficiency at the tip face and increases frictional heat for the same amount of material removed.
Use Intermittent, Light Axial Pressure
Because the tip face is doing the primary cutting, sustained heavy pressure compresses the diamond particles against the surface rather than letting them abrade efficiently. Light, intermittent plunging strokes briefly lifting the bur to allow debris and heat to clear produce a cleaner, more controlled cut than continuous pressure.
Keep Water Cooling Continuous
Uninterrupted water spray is essential during any plunge cut, particularly when sectioning a restoration or establishing a floor close to the pulp, since axial cutting concentrates heat directly beneath the tip face.
Work Coarse to Fine in Sequence
Rough in the floor, groove, or section cut with a medium or coarse grit end cutting cylinder, then switch to a fine grit of the same shape to refine the surface before bonding, impression, or restoration removal.
Keep the Bur Perpendicular to the Target Surface
Because the tip face is engineered to cut straight down, orienting the bur perpendicular to the floor or groove being cut produces a truer, flatter result than angling it as though it were a side-cutting instrument.
Common Mistakes to Avoid
Using a Side-Cutting Bur for Plunge Work
Reaching for a flat-end or beveled cylinder to plunge a depth groove or section a crown produces a slower, less efficient cut and more frictional heat than an end cutting cylinder designed for exactly that motion. Match the shape to the cutting direction the task actually requires.
Sustained Pressure Instead of Intermittent Strokes
Holding continuous pressure during a plunge cut compresses the diamond particles at the tip face rather than letting them abrade efficiently, slowing the cut and generating excess heat. Use light, intermittent strokes with brief lift-offs.
Running Without Adequate Water Spray
Plunge cutting concentrates heat directly under the tip face, and even brief dry contact can generate enough localised heat to risk pulpal or periodontal tissue damage. Confirm water flow before every plunge pass, without exception.
Ignoring Tip Wear
Because the tip face carries the majority of the cutting load on this shape, particle loss there is felt immediately as reduced efficiency. Inspect the tip under magnification before use and retire the bur once cutting speed noticeably drops.
Caring for Your Gold Diamond End Cutting Cylinder Burs
- Rinse under running water immediately after use to remove gross debris, then place in an ultrasonic cleaner with enzymatic solution for 3–5 minutes before sterilisation.
- Sterilise by steam autoclave at 134°C. Avoid dry-heat sterilisation, which degrades the gold-alloy bonding matrix over repeated cycles.
- Store end cutting cylinder burs in a dedicated bur block so the tip face is never in contact with adjacent instruments because that tip does the majority of the cutting work, chipping it is the fastest way to lose performance.
- Inspect the tip face under magnification before each use any visible particle loss or an uneven cutting surface is a sign the bur should be retired.
- Replace burs used for restoration sectioning more frequently than those used only for light depth-cut grooves, since plunging through metal, ceramic, or old cement wears the tip face faster than cutting enamel alone.
Frequently Asked Questions
What is an end cutting cylinder bur used for?
It is used anywhere a procedure calls for plunge-style cutting rather than lateral shaping establishing a flat occlusal or axial floor, sectioning a crown or bridge for removal, placing depth-reference grooves, and refining straight-line access in endodontic or post-space work.
How is an end cutting cylinder different from a regular flat-end cylinder?
Both share a straight cylindrical body, but a flat-end cylinder is optimised for side-wall reduction with the tip mainly keeping the floor flat. An end cutting cylinder reverses that emphasis, with a densely diamond-coated tip face specifically built to cut efficiently when pressed straight down into a surface.
Can an end cutting cylinder be used to remove an old crown?
Yes this is one of its most common uses. The plunge-cutting tip face lets the operator section through crown or bridge material in a controlled, straight line, which is far more efficient than attempting the same task with a side-cutting shape.
Why choose 24K gold-plated diamond burs over standard nickel-bonded diamonds?
The gold-alloy electroplating used in the DiaGold range holds diamond particles more securely under the concentrated axial load an end-cutting tip face experiences, resists corrosion through repeated autoclave cycles, and keeps particle distribution even across the tip all of which translate into a more consistent plunge cut over the working life of the bur.
What grit should I start with for restoration sectioning?
Begin with a coarse or medium grit to cut through the restorative material efficiently, then switch to a finer grit end cutting cylinder or a side-cutting shape once you are close to the underlying tooth structure, where more controlled removal is needed.
Conclusion
The end cutting cylinder bur fills a role that side-cutting cylinder shapes cannot efficiently replicate a genuinely aggressive, dependable plunge cut that establishes a flat floor, sections a restoration, or places a precise depth-reference groove in a fraction of the time a laterally-oriented instrument would take for the same task. It is not a replacement for the flat-end, beveled, or round-end cylinder it is the complementary shape that handles the axial cutting work those instruments are not designed for.
As with every shape in the DiaGold range, the 24K gold-plated bonding matrix is what turns that geometry into a dependable, repeatable clinical tool even particle distribution across the tip face, resistance to particle pull-out under concentrated axial load, and full compatibility with routine steam sterilisation. Matching the right grit sequence and a light, intermittent plunging technique to this shape is what produces a clean, predictable flat floor or section cut case after case.
Add the End Cutting Cylinder Shape to Your Tray
Shop the full DiaGold end cutting cylinder and cylinder-family range at GoldBurs 24K gold-plated, autoclave-rated, and built for dependable plunge-cutting performance.
