Gold Diamond Burs Flat End Cylinder: Uses, Benefits & Complete Guide

What Is a Flat End Cylinder Diamond Bur?

A flat end cylinder diamond bur is one of the most straightforward and most frequently reached for shapes in restorative dentistry. Unlike tapered burs, whose body narrows from neck to tip, the flat end cylinder keeps a constant diameter along the full length of its working head, ending in a flat, well-defined face. The combination of parallel walls and a flat tip makes this shape the natural choice whenever a preparation calls for a straight, non-converging wall or a flat internal floor.

Because it does not taper, the flat end cylinder produces walls that run parallel to the long axis of the bur rather than converging toward a point. That geometry is exactly what many cavity preparations, occlusal reductions, and post-space or channel preparations require consistent depth, a flat internal floor, and walls that do not undercut or over-converge as the bur is guided through the tooth structure.

This guide introduces the shape from first principles how the straight-walled body and flat tip work together, why the 24K gold-plated diamond matrix used across the DiaGold diamond bur range from GoldBurs improves on standard nickel-bonded instruments, which grit suits which stage of a procedure, and how the flat end cylinder compares with related shapes such as the flat end taper, the round end cylinder, and the beveled cylinder.

Anatomy and Geometry of the Flat End Cylinder Shape

To understand what makes this shape distinct, it helps to look at its geometry in two parts the straight-walled body and the flat tip plus the diamond coating that does the actual cutting.

The Straight-Walled Body Explained

The defining feature of the flat end cylinder is what it lacks compared with a taper any meaningful narrowing along its length. The working head maintains essentially the same diameter from where it meets the shank to where it reaches the flat tip. As the bur is guided into or along a surface, that constant diameter produces walls that run parallel to one another rather than converging toward a point.

This has two direct clinical consequences. First, it makes the shape ideal for occlusal reduction, where a flat, even depth needs to be established across a cusp or an entire occlusal surface without the wall angle changing as the bur is moved deeper. Second, the flat tip itself creates a genuinely flat cavity floor or channel base useful anywhere a restoration needs a defined, level seat rather than a rounded one.

Because there is no taper to manage, flat end cylinder burs are also popular for depth-cutting and grooving techniques, where a series of parallel guide cuts are made to a controlled depth before the bulk of material between them is removed a technique widely used in both occlusal and axial reduction for full-coverage restorations.

The Gold-Plated Diamond Matrix

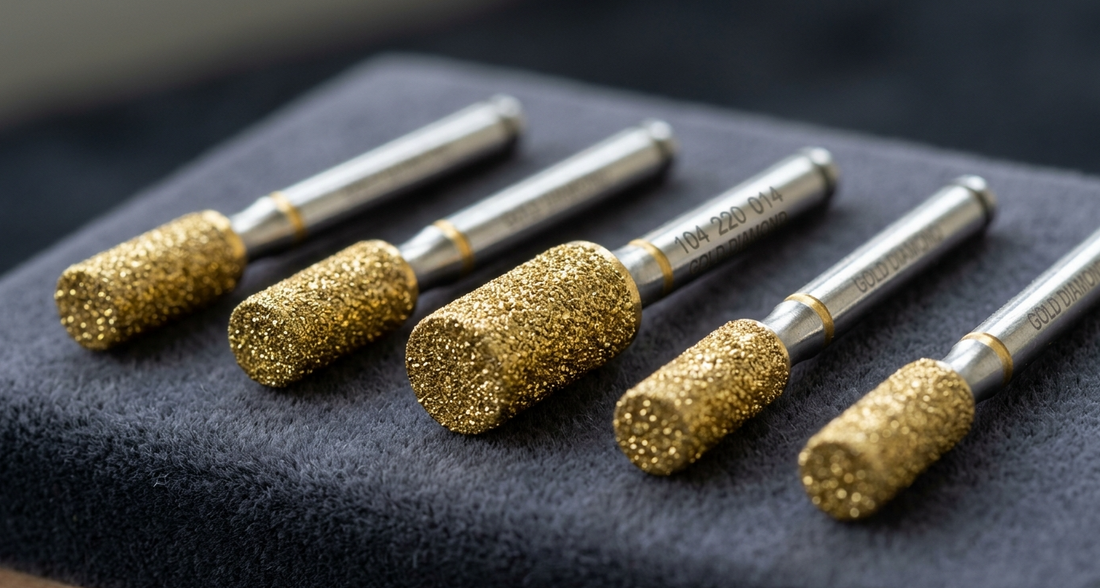

Cutting performance comes down to the diamond particles bonded to the steel shank, and in the DiaGold line that bond is created through an electroplated gold-alloy matrix that encapsulates roughly half of each diamond crystal's exposed height. That balance matters enough of the matrix surrounds each particle to hold it firmly under lateral cutting loads, while enough of the crystal remains exposed to keep the bur cutting efficiently rather than simply burnishing the surface.

Explore the DiaGold Flat End Cylinder Collection

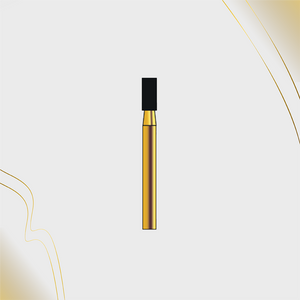

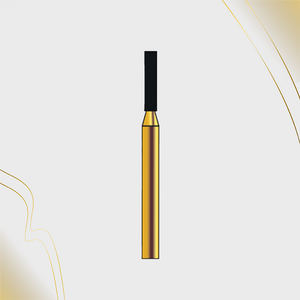

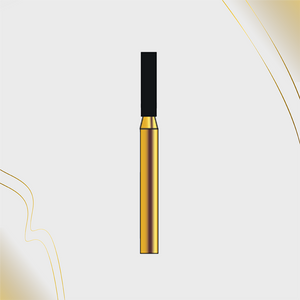

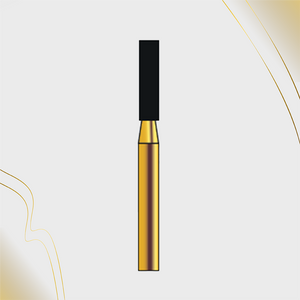

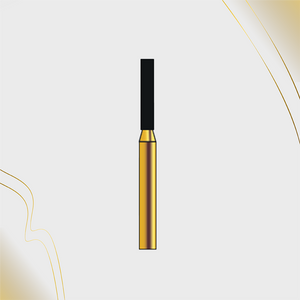

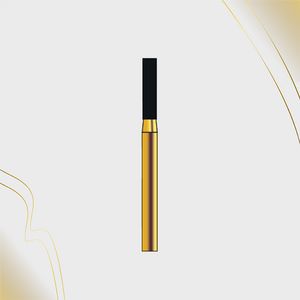

GoldBurs stocks a full range of flat end cylinder diamond burs across multiple ISO shape families, diameters, and diamond sizes, all built on the same 24K gold-plated matrix described above. Below is the full list of burs currently available in this collection, useful as a starting reference when building or restocking a kit.

Need a controlled draft angle instead of a straight wall for a full-coverage margin? Pair your flat end cylinder set with the flat end taper collection. Prefer a rounded floor transition for occlusal reduction? The round end cylinder shape is a natural companion. For the complete shape and grit range in one place, browse the full DiaGold diamond bur collection.

Understanding Grit Levels for Flat End Cylinder Burs

Grit refers to the size of the diamond particles bonded to the bur head, and it is usually the single biggest factor in how a flat end cylinder bur behaves during a given step of a preparation. Coarser grits remove material quickly but leave a rougher surface finer grits remove less material per pass but leave a smoother, more defined finish. Flat end cylinder burs are manufactured across the full grit range so the same shape can carry a preparation from initial depth-cutting through to final floor and wall refinement.

Key Clinical Applications

Because the flat end cylinder shape produces consistent-depth, parallel-walled preparations, it turns up constantly across restorative dentistry wherever a flat internal geometry or an even reduction depth is required. Below are the applications where clinicians reach for this shape most often.

Occlusal Reduction and Depth-Guide Grooves

One of the most common uses of the flat end cylinder is cutting depth-orientation grooves across the occlusal surface before bulk reduction begins. Because the bur does not taper, the depth of the groove is a direct, reliable indicator of how much material has been removed a technique widely taught for achieving consistent occlusal reduction in crown preparations.

Cavity Floor Preparation

For conventional cavity preparations, the flat end cylinder is used to establish a flat, even pulpal or axial floor rather than a rounded one, which can be important for the seating and stability of certain restorative materials and indirect restorations.

Post-Space and Channel Preparation

The parallel-walled geometry is also useful anywhere a straight, non-converging channel is needed for example, refining access or channel walls where a consistent internal diameter matters more than a tapered fit.

Amalgam and Composite Cavity Refinement

Where box forms or internal walls need to remain parallel rather than converge, the flat end cylinder helps maintain that geometry through the depth of the preparation, supporting proper retention form for the chosen restorative material.

Flat End Cylinder vs. Other Bur Shapes

Choosing the correct shape is just as important as choosing the correct grit. Here is how the flat end cylinder compares with the other straight and tapered shapes most commonly kept alongside it in a working bur kit.

In many full-coverage preparations, the flat end cylinder is used first for depth-guide grooves and bulk occlusal reduction before switching to a flat end taper or round end taper for the axial walls and margin, where a controlled draft angle becomes important. Keeping both straight and tapered shapes on hand in a range of diameters covers the great majority of crown, bridge, and cavity preparation workflows.

How to Select the Right Flat End Cylinder Bur

Flat end cylinder burs are sold under standardized ISO shape codes seen in the DiaGold catalogue as families like 835, 836, and 837 followed by a diameter code that indicates the working head size in tenths of a millimetre. A code such as G/110-014, for example, tells you both the shape family and the specific head diameter, letting you match the bur precisely to the size of the groove, floor, or wall you are preparing.

• Match diameter to the site. Smaller diameters (009–011) suit fine depth-guide grooves and narrow channels larger diameters (012–018) are better for broader occlusal reduction and faster bulk removal.
• Match grit to the stage of the procedure. Coarse or medium for initial depth cuts and bulk reduction, fine for floor and wall refinement.
• Consider shank length for access. Short-shank ("S") variants are available for posterior or limited-access areas where a standard-length shank would be difficult to angulate.
• Buy in sets, not singles. Because flat end cylinder burs are used constantly for depth-guide and occlusal reduction work, most practices keep several diameters in both medium and fine grit stocked in multiples rather than as single burs.

Getting the Best Results: Usage Tips

The bur itself is only half of the equation technique determines whether that geometry translates into a clean, predictable result chairside.

1. Run at full high-speed RPM. Diamond burs are designed for air-turbine or electric high-speed handpieces. Running them too slowly reduces cutting efficiency and increases frictional heat for the same amount of material removed.
2. Use the flat tip for accurate depth reference. When cutting depth-guide grooves, use the known diameter of the bur head as a visual reference for how much material has been removed, rather than estimating by eye.
3. Use light, consistent pressure. Let the diamond particles do the abrading rather than pressing harder to force material removal heavy pressure compresses the particles against the surface and generates unnecessary heat.
4. Keep water cooling on at all times. Continuous irrigation protects both the tooth structure and the bonding matrix of the bur itself, and prevents the surface desiccation that shows up as chalky white opacification.
5. Keep the bur perpendicular where a flat floor is needed. Since the shape does not taper, angling the bur off-axis will create an uneven floor rather than the flat, level surface the shape is designed to produce.

Care, Sterilization and Bur Lifespan

Because diamond burs cannot be re-sharpened, protecting their working life comes down to consistent handling and sterilization discipline rather than maintenance in the traditional sense.

• Rinse burs immediately after use to remove gross debris, then process through an ultrasonic cleaner before sterilization.
• Sterilize by steam autoclave DiaGold burs are rated for repeated cycles at 134°C. Avoid dry-heat sterilization, which can degrade the bonding matrix over time.
• Store burs individually in a dedicated bur block rather than loose in a tray bur-to-bur contact chips diamond particles and can bend shanks.
• Inspect the flat tip and side walls under magnification periodically. Rounding of the once-flat tip, uneven wear along the cylinder wall, or a change in cutting feel are signs it is time to retire the bur.

Common Mistakes to Avoid

• ✕
  Using a worn bur for depth-guide work. A dulled flat end cylinder cuts unevenly and its once-precise diameter reference becomes unreliable, throwing off depth measurements used to guide overall reduction.
• ✕
  Skipping the grit sequence. Trying to complete a flat cavity floor with a single coarse bur leaves a rough surface that compromises impression accuracy and restoration fit.
• ✕
  Angling the bur when a flat floor is required. Because this shape has no built-in taper to compensate, off-axis angulation produces an uneven, sloped floor instead of the flat surface the shape is designed to create.
• ✕
  Cutting without water spray. Even brief dry cutting generates enough heat to risk pulpal damage and accelerates wear on the bur's bonding matrix.

Why Choose Gold Diamond Burs Over Standard Diamond Burs

Every diamond bur, whatever the brand, relies on the same underlying mechanism abrasive diamond particles grinding away tooth structure or restorative material rather than shearing it away in the way a carbide bur does. That abrasive action is inherently gentler on brittle substrates like enamel and ceramic, which is why diamond instruments are the standard choice for reduction and depth-cutting work rather than carbide.

Where gold-plated diamond burs pull ahead of standard nickel-bonded instruments is in how consistently that abrasive action holds up over the working life of the bur especially important for a shape like the flat end cylinder, which is often used for depth-guide grooves where consistent, even cutting along the full length of the head directly determines how accurate the resulting depth measurement is.

None of this replaces sound technique speed, pressure, and water cooling still matter enormously but a bur that shows even cutting along its entire straight length gives a clinician a far more predictable instrument to work with, especially in the depth-guide and occlusal reduction work where the flat end cylinder is used most.

Frequently Asked Questions

Conclusion

The flat end cylinder is one of the most reliable, no-frills shapes in a restorative dental bur kit purpose-built to produce a straight wall and a flat internal floor wherever consistent depth and geometry matter more than a converging taper. Its straight-walled design is what makes it the go-to instrument for depth-guide grooves and occlusal reduction, and pairing that geometry with a 24K gold-plated diamond matrix adds the consistency and durability that make repeatable, predictable clinical results possible pass after pass.

Whether you are assembling your first restorative kit or restocking a well-used one, understanding how shape, grit, and diameter work together will help you reach for the right flat end cylinder bur for the job in front of you, every time.
