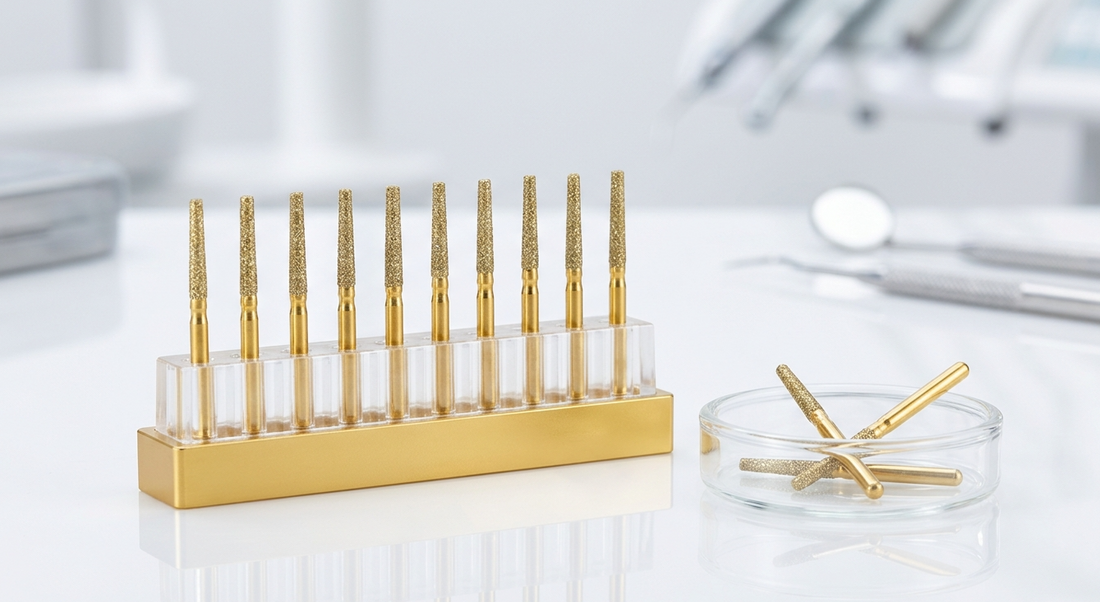

Gold Diamond Burs Flat End Taper: A Complete Beginner’s Guide

What Is a Flat End Taper Diamond Bur?

A flat end taper diamond bur is one of the foundational shapes in any restorative dentistry kit. It shares the same tapered, cone-like body found across most crown and bridge preparation burs, but instead of finishing in a rounded dome, its apical end is cut flat a straight, defined face perpendicular (or near-perpendicular) to the long axis of the shaft. That single geometric difference changes what the bur is best used for and the type of margin it naturally produces.

Where a rounded tip is built to create soft, concave transitions, a flat tip is built to create a defined plane. That makes the flat end taper the shape clinicians reach for whenever a preparation calls for a shoulder margin, a precise cervical stop, or a clean, flat axial surface the geometry that traditional porcelain-fused-to-metal (PFM) crowns and many full-cast restorations are designed around.

This guide introduces the shape from the ground up how the flat face and taper work together, why the 24K gold-plated diamond matrix used across the DiaGold diamond bur range from GoldBurs improves on standard nickel-bonded instruments, which grit fits which stage of a preparation, and how the flat end taper compares with related shapes such as the round end taper, the flat end cylinder, and the needle taper.

Explore the DiaGold Flat End Taper Collection

GoldBurs stocks a full range of flat end taper diamond burs plus closely related round end and needle taper shapes found in the same collection across multiple ISO shape families, diameters, and grits, all built on the same 24K gold-plated matrix described above. Below is the full list of burs currently available in this collection, useful as a starting reference when building or restocking a kit.

Need a chamfer instead of a shoulder for a full-ceramic case? Pair your flat end taper set with the round end taper collection. Working in tight interproximal spaces? The needle taper and flame and needle shapes are natural companions. For the complete shape and grit range in one place, browse the full DiaGold diamond bur collection.

Anatomy and Geometry of the Flat End Taper Shape

To understand why this shape performs the way it does, it helps to break its geometry down into three working parts the taper angle of the shaft, the flat tip itself, and the diamond coating responsible for the actual cutting.

The Flat Apical Face Explained

The defining feature of the flat end taper is exactly what its name describes an apical tip that ends in a flat plane rather than curving into a dome. As the bur is guided along a preparation, that flat face is what carves the gingival shoulder a 90° (or near-90°) ledge at the cervical margin that gives a restoration a clean, defined seat.

This has two direct clinical consequences. First, it produces the shoulder margin design that traditional PFM crowns, full-cast crowns, and certain all-ceramic systems are built around, where a wide, flat ledge is needed to support the bulk of material at the margin. Second, because the flat tip and tapered body reduce the axial surface and define the margin in the same motion, a single well-angulated pass can establish both the wall and the shoulder together something a rounded tip cannot do as cleanly.

The taper of the shaft itself does the same job it does on any tapered bur it provides a controlled draft angle, usually in the range of 2–6°, so the operator can maintain consistent axial wall convergence without creating undercuts undercuts that a perfectly straight-walled cylinder would be far more prone to leave behind in a hurried pass.

The Gold-Plated Diamond Matrix

Cutting performance comes down to the diamond particles bonded to the steel shank, and in the DiaGold line that bond is created through an electroplated gold-alloy matrix that encapsulates roughly half of each diamond crystal's exposed height. That balance matters enough of the matrix surrounds each particle to hold it firmly under lateral cutting loads, while enough of the crystal remains exposed to keep the bur cutting efficiently rather than simply burnishing the surface.

Why Choose Gold Diamond Burs Over Standard Diamond Burs

Every diamond bur, whatever the brand, relies on the same underlying mechanism abrasive diamond particles grinding away tooth structure or restorative material rather than shearing it away in the way a carbide bur does. That abrasive action is inherently gentler on brittle substrates like enamel and ceramic, which is exactly why diamond instruments are the standard choice for margin definition and axial reduction rather than carbide.

Where gold-plated diamond burs pull ahead of standard nickel-bonded instruments is in how consistently that abrasive action holds up over the working life of the bur particularly important for a shape like the flat end taper, where the flat face has to cut evenly across its entire width to produce a clean, level shoulder.

None of this replaces sound technique speed, pressure, and water cooling still matter enormously but a bur that sheds particles evenly and holds its shape gives a clinician a far more predictable instrument to work with, especially in exactly the situation where flat end taper burs are used most shoulder and margin definition, where precision and repeatability directly affect restoration fit.

Understanding Grit Levels for Flat End Taper Burs

Grit refers to the size of the diamond particles bonded to the bur head, and it is usually the single biggest factor in how a flat end taper bur behaves during a given step of a preparation. Coarser grits remove material quickly but leave a rougher surface finer grits remove less material per pass but leave a smoother, more defined finish. Flat end taper burs are manufactured across the full grit range so the same shape can carry a preparation from initial bulk reduction through to final margin refinement.

Key Clinical Applications

Because the flat end taper shape is built to define a plane rather than a curve, it turns up constantly across restorative dentistry wherever a clean, flat surface or a defined step is required. Below are the applications where clinicians reach for this shape most often.

Shoulder Margin Preparation for PFM and Full-Cast Crowns

Traditional porcelain-fused-to-metal and full-cast gold or metal-alloy crowns are typically designed around a shoulder margin, which needs enough width and a flat, defined ledge to properly support the restorative material at the finish line. A medium-grit flat end taper bur, oriented with its flat face parallel to the planned gingival cavosurface margin, is the standard instrument for creating this geometry.

Axial Wall Reduction

Beyond the margin itself, the tapered body of the bur is used to reduce the buccal, lingual, and interproximal axial walls of a crown preparation in the same motion that establishes the margin one instrument doing double duty for both the wall and the shoulder, provided the angulation is controlled carefully.

Inlay and Onlay Cavity Walls

Where a flat, well-defined cavity wall or floor transition is needed for an inlay or onlay preparation, the flat end taper's straight apical face helps create predictable internal geometry that a ceramic or composite restoration can be designed to fit precisely.

Metal and Full-Cast Restoration Adjustment

At delivery, minor adjustments to metal or full-cast restorations sometimes require careful, controlled material removal along a flat plane a task the flat end taper's geometry is naturally suited to, particularly when paired with a coarser grit for metal.

Flat End Taper vs. Other Bur Shapes

Choosing the correct shape is just as important as choosing the correct grit. Here is how the flat end taper compares with the other tapered and specialty shapes most commonly kept alongside it in a working bur kit.

In many full-coverage preparations, several of these shapes are used together in sequence a coarse flat end taper for the bulk axial reduction and shoulder roughing, a medium flat end taper to define the finished shoulder, and a fine flat end taper or needle bur to refine the margin and interproximal extension. Keeping a full round end taper set alongside your flat end taper burs covers the great majority of crown and bridge workflows, since many cases call for both shoulder and chamfer geometries depending on the restoration material chosen.

How to Select the Right Flat End Taper Bur

Flat end taper burs are sold under standardized ISO shape codes seen in the DiaGold catalogue as families like 845, 846, 847, and 848 followed by a diameter code that indicates the working head size in tenths of a millimetre. A code such as G/172-016, for example, tells you both the shape family and the specific head diameter, letting you match the bur precisely to the size of the margin or surface you are preparing.

• Match diameter to the site. Smaller diameters (012–015) suit narrower shoulders and posterior line angles larger diameters (016–019) are better for broader axial surfaces and faster bulk reduction.
• Match grit to the stage of the procedure. Coarse or medium for initial shaping, fine for shoulder refinement and finishing.
• Consider shank length for access. Short-shank ("S") and super-short-shank ("SH") variants are available for posterior or limited-access areas where a standard-length shank would be difficult to angulate.
• Buy in sets, not singles. Because flat end taper burs are used constantly across crown, bridge, and inlay/onlay work, most practices keep several diameters in both medium and fine grit stocked in multiples rather than as single burs.

Getting the Best Results: Usage Tips

The bur itself is only half of the equation technique determines whether that geometry translates into a clean, level shoulder chairside.

1. Run at full high-speed RPM. Diamond burs are designed for air-turbine or electric high-speed handpieces. Running them too slowly reduces cutting efficiency and increases frictional heat for the same amount of material removed.
2. Orient the flat face carefully. A true shoulder is achieved only when the flat apical face is held parallel to the long axis of the planned gingival cavosurface margin a small change in angulation can turn a shoulder into an uneven chamfer.
3. Use light, consistent pressure. Let the diamond particles do the abrading rather than pressing harder to force material removal heavy pressure compresses the particles against the surface and generates unnecessary heat.
4. Keep water cooling on at all times. Continuous irrigation protects both the tooth structure and the bonding matrix of the bur itself, and prevents the surface desiccation that shows up as chalky white opacification.
5. Verify taper angle before finishing. Total occlusal convergence should stay within 12–16° for adequate crown retention check with a paralleling guide before moving to the fine-grit finishing pass.

Care, Sterilization and Bur Lifespan

Because diamond burs cannot be re-sharpened, protecting their working life comes down to consistent handling and sterilization discipline rather than maintenance in the traditional sense.

• Rinse burs immediately after use to remove gross debris, then process through an ultrasonic cleaner before sterilization.
• Sterilize by steam autoclave DiaGold burs are rated for repeated cycles at 134°C. Avoid dry-heat sterilization, which can degrade the bonding matrix over time.
• Store burs individually in a dedicated bur block rather than loose in a tray bur-to-bur contact chips diamond particles and can bend shanks.
• Inspect the flat face and edges under magnification periodically. Rounding of the once-flat tip, particle loss, or a change in cutting feel are signs it is time to retire the bur, particularly for the medium and fine grit instruments used directly on margins.

Common Mistakes to Avoid

• ✕
  Using a worn bur for shoulder work. A dulled flat end taper bur no longer cuts a clean, flat plane the once-crisp tip rounds over with use, producing an uneven margin that is harder for the technician to interpret accurately. Replace fine-grit finishing burs more often than coarse working burs.
• ✕
  Skipping the grit sequence. Trying to complete a shoulder margin with a single coarse bur leaves a rough surface that compromises impression accuracy and marginal fit.
• ✕
  Ignoring taper angulation. Holding the bur at an exaggerated angle compounds its natural taper and can over-taper axial walls, reducing crown retention and increasing the risk of dislodgement.
• ✕
  Cutting without water spray. Even brief dry cutting generates enough heat to risk pulpal damage and accelerates wear on the bur's bonding matrix.

Frequently Asked Questions

Conclusion

The flat end taper is one of the most fundamental shapes in a restorative dental bur kit purpose-built to define a clean, level plane wherever a preparation calls for a shoulder margin or a controlled flat axial surface. Its flat apical face does the precise work that a rounded tip cannot, and pairing that geometry with a 24K gold-plated diamond matrix adds the consistency and durability that make repeatable, predictable clinical results possible pass after pass.

Whether you are assembling your first crown and bridge kit or restocking a well-used one, understanding how shape, grit, and diameter work together will help you reach for the right flat end taper bur for the job in front of you, every time.
