What Is a Gold Diamond Inverted Cone Bur?
An inverted cone bur is a rotary diamond instrument shaped so that the head is narrower where it meets the shank and wider toward the tip the reverse taper of a standard cone. That reversed geometry is not decorative it is what allows the bur to cut an undercut, a mechanical lock, or a retention groove that is actually wider at its base than at its opening. No amount of angling a straight or forward-tapered bur can reproduce that geometry, which is exactly why the inverted cone has remained a fixture in restorative dentistry even as adhesive materials have reduced how often mechanical retention is strictly required.
Inverted cone burs belong to the broader family of gold diamond burs in the DiaGold range from GoldBurs, and they are used alongside other undercut-capable and access-refining shapes such as the round-end cylinder and the round (ball) bur. Clinicians reach for an inverted cone whenever a preparation needs a deliberate undercut placing a retention groove in a Class I or Class II amalgam preparation, refining the internal walls of an access cavity, cleaning caries away from the dentino-enamel junction where the lesion tends to spread laterally beneath sound enamel, or removing an old restoration that needs to be broken up from the inside out.
This guide walks through the design logic behind the inverted cone shape, the different variants available standard, with collar, and rounded-edge how the 24K gold-plated diamond matrix used in DiaGold instruments affects performance on undercut work specifically, grit and sizing selection, and the clinical scenarios where this shape genuinely earns its place on the tray. Whether you are stocking a fresh operatory kit or deciding which inverted cone size belongs next to your round and cylinder burs, this reference will help you use the shape with more precision.
DiaGold Advantage: Every inverted cone bur in the DiaGold range carries an electroplated 24K gold-alloy matrix across the full head, including the underside of the wider tip that does the actual undercut cutting. Because that underside surface is difficult to access for cleaning and inspection once a bur is in service, an even, securely bonded particle layer there is what keeps the undercut cutting action consistent through repeated sterilisation cycles.
Explore the DiaGold Inverted Cone Collection

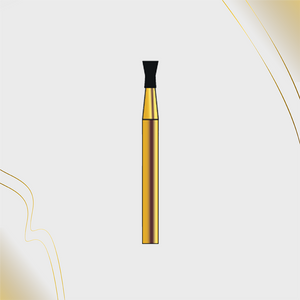

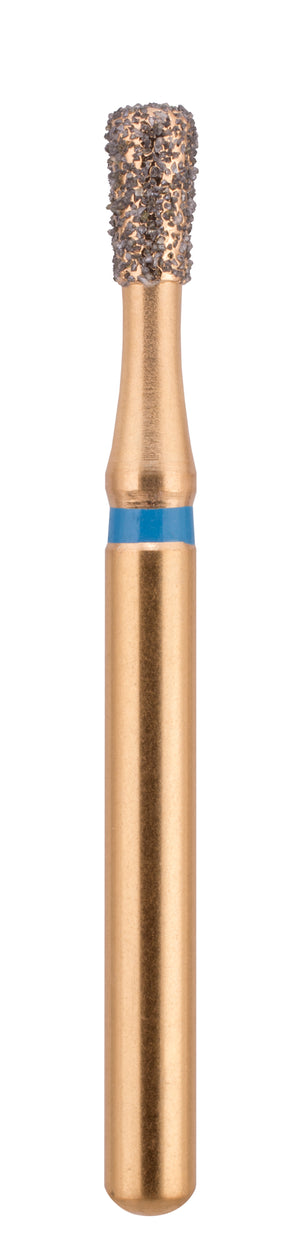

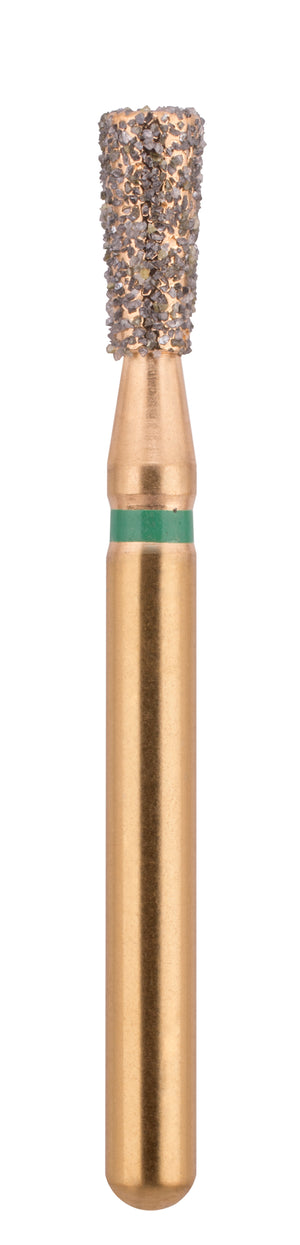

GoldBurs stocks the inverted cone shape across three catalogue families 830/830L rounded-edge, 807 with collar, 806 standard, and 805 with collar giving clinicians a range of head diameters and head lengths to match the undercut depth a given preparation calls for. Every option below ships as a single bur or 10-pack as noted, is 24K gold-plated, and is autoclave-rated for repeated sterilisation.
Looking for the shape that finishes an internal transition rather than creating an undercut? The Round-End Cylinder collection and the Round (Ball) collection are the closest complementary shapes for rounding internal angles without cutting a mechanical lock. For a full overview of every diamond shape GoldBurs carries, visit the main DiaGold Diamond Burs category.
Anatomy: Understanding the Inverted Cone Geometry
The defining feature of this shape is a reversed taper the head diameter is narrowest at the neck, where it joins the shank, and widest at the working end. Because the working end is wider than the neck, drawing the bur across a wall at an angle or simply engaging the wider tip below the entrance of a groove removes material that a straight-walled or forward-tapered bur physically cannot reach, leaving behind an undercut shape once the bur is withdrawn.
Why the Inverted Cone Cuts Wider at the Tip
Most rotary instruments are shaped so the head is at its widest closest to the shank, narrowing toward the tip, which is what lets them be drawn straight out of a preparation without binding. An inverted cone deliberately breaks that rule. The wider tip is what creates the retentive undercut the same geometric principle behind a dovetail joint in woodworking. Once a groove or box has been cut with an inverted cone, the resulting cavity is mechanically locked in one direction, which is precisely the retention form that many amalgam preparations and certain access refinements are built around.
Collar, Rounded-Edge and Standard Variants
The DiaGold inverted cone range includes several construction variants that suit slightly different clinical goals:
- Standard Inverted Cone: A straightforward reversed taper for general-purpose undercut cutting and retention groove placement.

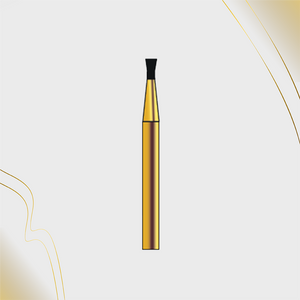

- Inverted Cone with Collar: Adds a narrow, non-cutting collar just below the head, which acts as a visual and tactile depth reference so the operator can gauge how far the bur has been advanced without needing to measure separately.
- Inverted Cone Rounded Edge: Softens the sharp peripheral edge at the widest point of the head, reducing the risk of an overly sharp internal line angle at the base of the undercut useful where a slightly gentler transition is preferred, such as in more conservative preparations.
Head Diameter, Head Length and ISO Sizing
Inverted cone burs in the DiaGold range are produced across several head diameters and head lengths so the same reversed-taper geometry can be matched to the depth and width of undercut a case requires. Diameter follows the same ISO numbering convention used across the diamond bur industry a bur coded 012 has a nominal head diameter of 1.2 mm, a 016 has a 1.6 mm head, and so on while head length varies by catalogue family, letting the clinician choose a shallower or deeper reach depending on whether the undercut is being placed in a shallow occlusal groove or a deeper interproximal box.
4Catalogue families in the DiaGold range (830/830L, 807, 806, 805)
1.2–1.6mmAvailable head diameters
50%Diamond particle height held in the gold matrix
134°CRated repeated-autoclave temperature
Why 24K Gold-Plated Diamond Matters for Undercut Precision
Cutting an undercut is inherently harder to visualise and control than cutting a straight wall, because the widest part of the head the part actually doing the retentive cutting is often partly hidden below the entrance of the groove or box while the bur is engaged. Any inconsistency in how diamond particles are bonded to that surface becomes far more consequential here than on a shape the operator can see clearly throughout the cut. This is where the 24K gold-plated construction used across the DiaGold range does the most practical work.
Why Diamond Over Carbide
- Abrasive, compressive cutting action rather than a shearing action gentler on the sound tooth structure that borders a retention groove
- Consistent removal rate at the widest point of the head, where undercut cutting is concentrated
- Smoother resulting internal surface, which matters where the undercut wall cannot easily be polished afterward
- Available across a full grit sequence, letting the same shape rough-cut an undercut and then smooth it
Why Gold-Plated Over Generic Diamond
- Electroplated gold-alloy matrix holds particles securely on the underside of the wider tip, the surface doing the actual undercut cutting
- Uniform particle distribution across the whole reversed-taper head no thin patches on a surface that is hard to inspect mid-procedure
- Corrosion resistance and full autoclave compatibility at 134°C over repeated sterilisation cycles
- Shanks machined to ISO tolerances, so the head runs true with no wobble that would blur the undercut geometry
Because so much of the inverted cone's working surface is engaged out of direct line of sight, a gold-plated matrix that holds particles evenly across that surface is the reason DiaGold inverted cone burs produce a cleaner, more predictable undercut than lower-grade nickel-bonded alternatives particularly once a bur has been through several rounds of sterilisation and the difference between an even and an uneven particle layer becomes clinically noticeable.
Grit Guide: Matching Diamond Particle Size to the Task
As with every diamond bur shape, grit selection is the first decision when using an inverted cone. The reversed-taper geometry stays constant across the grit range only the size of the diamond particles, and therefore the removal rate and resulting surface smoothness, changes.
Coarse
Initial Undercut and Bulk Caries Removal
Used when a substantial amount of caries or old restorative material needs to be removed from the axial walls or pulpal floor before the retention form is refined.
Medium
Primary Retention Groove Placement
The workhorse grit for placing a defined retention groove or undercut in an amalgam or access preparation, balancing efficient removal with a surface close to its final form.
Fine
Undercut Wall Refinement
Used to smooth and finalise the internal walls of a placed undercut once the primary groove or box has been established, reducing rough edges that could otherwise trap debris.
Extra Fine
Final Detail Work
Reserved for very fine adjustment of an access cavity's internal walls or the last pass over a visible undercut margin where minimal further removal is the goal.
Selection Principle: Start with the coarsest grit that safely establishes the depth and width of the retention form, then step down through medium and fine grits to refine the undercut walls. Because the working surface is partly hidden during the cut, a deliberate grit sequence is more forgiving than trying to shape and finish an undercut in a single coarse pass.
Where Inverted Cone Burs Fit in Everyday Practice
Because the inverted cone shape is specifically built to cut a retentive undercut, it earns a distinct role in restorative and endodontic work rather than duplicating what a straight-walled or forward-tapered bur can already do.
Retention Grooves and Mechanical Undercuts
The most classic use of the inverted cone is placing retention grooves in Class I and Class II amalgam preparations, where mechanical retention rather than adhesive bonding is what holds the restoration in place. The reversed taper cuts a groove that is wider at its base than its opening, locking the restorative material into the tooth structure once it sets.
Caries Removal Along the Pulpal Floor and Axial Walls
Because caries frequently spreads laterally beneath sound enamel once it reaches the dentino-enamel junction, an inverted cone's wider tip is well suited to reaching and removing decayed dentine tucked under an overhang that a straight bur cannot access without over-cutting the sound enamel above it.
Pulp Chamber Access Refinement
In endodontic access preparation, an inverted cone is often used to refine the internal walls of the pulp chamber after initial deroofing, removing overhanging dentine and improving the operator's straight-line access to canal orifices without enlarging the external cavity outline more than necessary.
Removing Old Restorations and Amalgam
When an existing amalgam or composite restoration needs to be removed, an inverted cone can be used to section and undercut the material from within, breaking it into smaller pieces that lift out more predictably than trying to remove a large, intact restoration in one motion.
Inverted Cone vs. Round Bur vs. Flat-End Cylinder
Choosing between these three shapes comes down to whether the case calls for a genuine mechanical undercut, a rounded scooping action, or a straight-walled flat floor. The table below summarises the practical difference at a glance.
| Shape | Working Geometry | Best Suited For | Typical Grit |
|---|---|---|---|
| Inverted Cone | Reversed taper wider at the tip than at the neck, creates a true undercut | Retention grooves, mechanical locks, caries removal under overhangs | Coarse → Medium |
| Round (Ball) Bur | Spherical head, uniform curvature in all directions | Caries excavation, rounding internal angles, general scooping | Coarse → Medium |
| Flat-End Cylinder | Straight-walled body, no undercut, sharp 90° internal corner | Flat walls, box forms, defined internal angles | Coarse → Medium |
A round bur can excavate caries efficiently but cannot cut a true mechanical lock, and a flat-end cylinder cannot cut an undercut at all its geometry is designed for the opposite purpose, a wall the restoration can be drawn straight out along. The inverted cone remains the only one of the three that reliably produces a genuine retentive undercut.
Technique Tips for Predictable, Repeatable Results
Run at Full High Speed
Inverted cone diamonds, like other DiaGold shapes, are designed for high-speed air-turbine or electric handpieces. Running the bur below its intended speed reduces cutting efficiency at the wider tip and increases frictional heat for the same amount of material removed.
Use Light, Deliberate Lateral Sweeps
Because the retentive cutting action happens as the wider tip is drawn sideways beneath a groove entrance, light and deliberate lateral movement produces a cleaner, more even undercut than aggressive plunging, which the tip is not primarily designed for.
Keep Water Cooling Continuous
Uninterrupted water spray is essential whenever the bur is engaged, particularly since undercut cutting often takes place close to the pulp or close to an existing restoration margin where heat control matters most.
Work Coarse to Fine in Sequence
Establish the basic groove or undercut depth with a medium-grit inverted cone, then switch to a fine grit of the same shape to smooth the internal walls before restoration placement.
Use Tactile and Visual Depth Cues
Where available, use a collar-style inverted cone as a built-in depth reference, and periodically withdraw the bur to visually confirm the undercut depth and width rather than relying solely on feel throughout an extended cut.
Common Mistakes to Avoid
Over-Cutting the Undercut Depth
Because the widest part of the head is often partially hidden during the cut, it is easy to remove more sound tooth structure than intended. Withdraw periodically to check progress rather than judging depth by feel alone.
Using an Inverted Cone Where a Round Bur Would Serve Better
Not every scooping or caries-removal task needs a genuine mechanical undercut. Reaching for an inverted cone by default, rather than a round bur, can remove more sound structure than the clinical situation actually requires.
Skipping the Fine-Grit Refinement Pass
Leaving an undercut wall as cut by a coarse or medium bur can leave a rougher internal surface than ideal, particularly where debris control matters. A short fine-grit refinement pass produces a cleaner, more predictable result.
Running Without Adequate Water Spray
Even brief dry contact during undercut cutting can generate enough localised heat to risk pulpal or periodontal tissue damage. Confirm water flow before every pass, without exception.
Caring for Your Gold Diamond Inverted Cone Burs
- Rinse under running water immediately after use to remove gross debris, then place in an ultrasonic cleaner with enzymatic solution for 3–5 minutes before sterilisation.
- Sterilise by steam autoclave at 134°C. Avoid dry-heat sterilisation, which degrades the gold-alloy bonding matrix over repeated cycles.
- Store inverted cone burs in a dedicated bur block so the wider tip is never in contact with adjacent instruments that tip is doing the majority of the retentive cutting, and chipping it is the fastest way to lose undercut precision.
- Inspect the underside of the tip under magnification before each use because this surface is hard to see mid-procedure, a pre-use check is the most reliable way to confirm particle integrity.
- Replace inverted cone burs used regularly for old amalgam or restoration removal more frequently than those used only for enamel and dentine work, since cutting through set restorative material wears the tip faster.
Frequently Asked Questions
What is an inverted cone bur used for?
It is used to cut a genuine mechanical undercut most commonly retention grooves in Class I and Class II amalgam preparations, caries removal beneath enamel overhangs, refinement of pulp chamber access walls, and sectioning old restorations for removal.
What is the difference between an inverted cone with collar and a standard inverted cone?
The collar variant adds a narrow, non-cutting band just below the head that serves as a visual and tactile depth reference, helping the operator gauge how far the bur has been advanced. A standard inverted cone has no such reference built in.
Is mechanical retention with an inverted cone still relevant with modern bonding materials?
Adhesive bonding has reduced how often a dedicated mechanical undercut is required for many restorations, but inverted cone burs remain in routine use for amalgam preparations, caries removal under overhangs, endodontic access refinement, and restoration removal, where the shape's reversed-taper geometry is still the most direct tool for the job.
Why choose 24K gold-plated diamond burs over standard nickel-bonded diamonds?
The gold-alloy electroplating used in the DiaGold range holds diamond particles more securely on the underside of the tip the surface doing the actual undercut cutting resists corrosion through repeated autoclave cycles, and keeps particle distribution even across a working surface that is difficult to inspect mid-procedure.
What grit should I start with for a new retention groove?
Begin with a medium grit to establish the groove's depth and undercut width, then move to a fine grit inverted cone to smooth the internal walls before placing the restoration.
Conclusion
The inverted cone bur occupies a role that no other shape in the cylinder, round, or taper families can fully replace a reversed-taper geometry built specifically to cut a genuine mechanical undercut. Whether the task is placing a retention groove in an amalgam preparation, reaching caries tucked beneath an enamel overhang, refining pulp chamber access walls, or sectioning an old restoration from the inside out, the wider tip is doing work that a straight-walled or forward-tapered bur simply cannot reproduce.
As with every shape in the DiaGold range, the 24K gold-plated bonding matrix is what turns that geometry into a dependable, repeatable clinical tool even particle distribution across a working surface that is partly hidden during use, resistance to particle pull-out under the load of undercut cutting, and full compatibility with routine steam sterilisation. Matching the right grit sequence and a light, deliberate lateral technique to this shape is what produces a clean, predictable undercut case after case.
Add the Inverted Cone Shape to Your Tray
Shop the full DiaGold inverted cone range at GoldBurs 24K gold-plated, autoclave-rated, and built for dependable, precise undercut cutting.
Shop Inverted Cone Burs →
