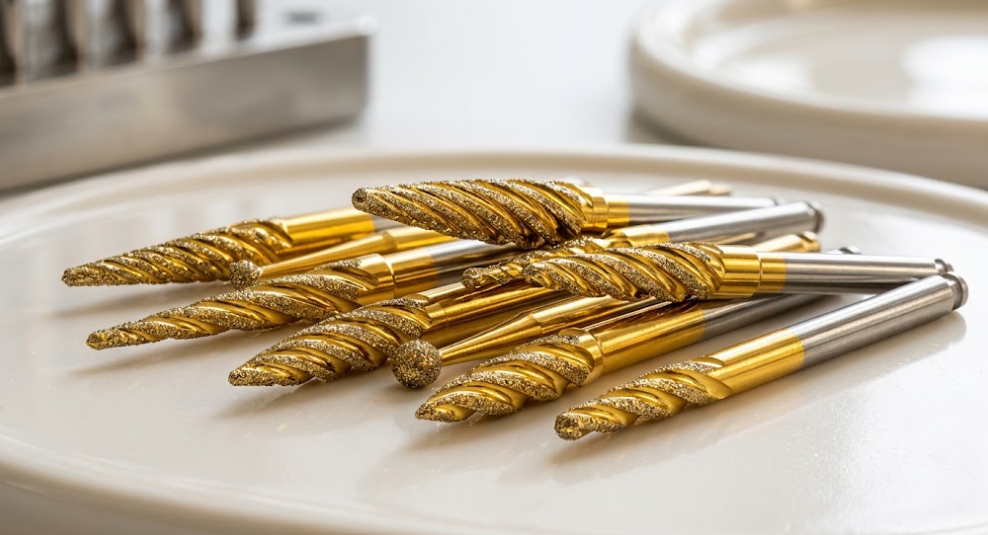

Gold Diamond Burs Spiral Shaped: The Complete Zirconia-Cutting Guide

What Is a Gold Diamond Spiral Shaped Bur?

A spiral shaped bur is a rotary diamond instrument whose working head is cut with helical, screw-like flutes running along its length instead of a continuous, unbroken diamond surface. Those spiral flutes create channels along the head that help clear ground-away debris and dissipate heat as the bur cuts, which matters enormously when the material being cut is one of the hardest substances routinely encountered chairside or in the lab zirconia. This is why the DiaGold spiral shaped range is marketed under the heading of zirconia cutting burs the geometry exists specifically to make cutting through monolithic zirconia, lithium disilicate, and other high-strength ceramics faster and more controlled than a standard diamond shape can manage.

Spiral shaped burs belong to a specialised branch of the DiaGold gold diamond bur family at GoldBurs, distinct from the general-purpose cylinder, taper, and round shapes used for everyday enamel and dentine work. Clinicians and lab technicians reach for a spiral shaped bur whenever the task involves cutting through an existing zirconia crown or bridge for removal, reducing the occlusal surface of a monolithic zirconia restoration, adjusting a lithium disilicate (E-max) restoration chairside, or sectioning a porcelain-fused-to-metal coping situations where a standard diamond shape would cut slowly, generate excessive heat, and wear down far faster than the material justifies.

This guide walks through the design logic behind the spiral flute geometry, why it is specifically suited to ceramic and zirconia cutting rather than everyday tooth-structure work, how the 24K gold-plated diamond matrix used in DiaGold instruments affects performance on this shape, how to choose between the many available configurations, and the specific clinical and laboratory scenarios where this shape earns its place on the tray. Whether you are stocking a zirconia-adjustment kit for the first time or expanding an existing one, this reference will help you select the right spiral shaped bur with confidence.

Explore the DiaGold Spiral Shaped (Zirconia Cutting) Collection

GoldBurs stocks one of its widest single-shape ranges under the spiral shaped, or "XC" (Extra Coarse), zirconia cutting category 31 configurations across more than a dozen catalogue families, covering a wide span of head diameters and head lengths so labs and practices can match the exact reach and width a given zirconia or ceramic cutting task requires. Every option below ships as a 10-pack, is 24K gold-plated, and is autoclave-rated for repeated sterilisation.

All catalogue numbers below carry the XC (Extra Coarse) designation used across this shape family.

Need a shape for everyday tooth-structure work instead of ceramic cutting? Browse the general-purpose DiaGold Diamond Burs range, including the Flat-End Cylinder and Round End Taper collections for enamel and dentine reduction.

Anatomy: Understanding the Spiral Flute Geometry

The defining feature of this shape is not a simple silhouette like a cylinder or a cone it is the helical flute pattern cut into the diamond-coated surface of the head. Rather than presenting a continuous, unbroken diamond surface to the material being cut, a spiral shaped bur alternates raised diamond-coated ridges with recessed channels that spiral around the head's long axis.

How Spiral Flutes Aid Heat Dissipation and Debris Clearance

When a diamond bur cuts through an extremely hard, low-thermal-conductivity material such as zirconia, ground-away particulate has nowhere to go if the cutting surface is continuous, and that trapped debris both slows the cut and traps heat against the surface being cut. The spiral flutes on this shape create an open channel that debris and coolant water can move through as the bur rotates, continuously clearing the cutting zone rather than letting waste material accumulate against the workpiece. This is the same underlying principle used in twist-drill flute design for metalworking, adapted to a diamond-coated dental instrument.

Extra Coarse (XC) Grit and Why This Shape Is Graded Differently

Nearly every catalogue number in the DiaGold spiral shaped range carries an "XC" suffix, denoting Extra Coarse diamond particle size. This is a deliberate departure from the fine-to-coarse grit range typically offered across general-purpose shapes zirconia and other high-strength ceramics require a substantially larger, more aggressive diamond particle to cut efficiently at all, since a fine or medium grit designed for enamel would simply burnish against a material this hard rather than removing it. Some catalogue numbers carry an "S" designation for a shorter or narrower head configuration, letting the operator choose between a more aggressive full-size head and a more conservative, precise option for confined access.

Shank System, Head Length and ISO Sizing

Spiral shaped burs in the DiaGold range are built on the G/313 shank system and are produced across a wide span of head diameters and head lengths from compact configurations suited to precise chairside adjustment through to longer-reach options intended for sectioning bulkier restorations or working deeper into an access area. Head diameter follows the same ISO numbering convention used across the diamond bur industry, while the L1 and L2 measurements published for each catalogue number indicate head length and overall working length respectively, letting labs and clinicians match reach precisely to the restoration being worked on.

Why 24K Gold-Plated Diamond Matters for Cutting Zirconia and Ceramics

Zirconia and lithium disilicate are dramatically harder and more abrasive to cut than natural tooth structure, which means the diamond bonding matrix on any bur used against these materials is under far greater mechanical stress than it would be in routine restorative work. A weakly bonded matrix loses particles quickly under that load, and once particles are lost the bur's remaining diamond does proportionally more work per pass, accelerating wear and heat generation in a compounding cycle. This is precisely where the 24K gold-plated construction used across the DiaGold range earns its keep.

Because zirconia cutting is inherently harder on any bur than routine tooth-structure work, the difference between an evenly bonded gold-plated matrix and a lower-grade nickel-bonded alternative becomes obvious far sooner often within the first few procedures rather than only showing up after many months of use. That is the practical reason DiaGold's gold-plated construction is particularly relevant for this specific shape.

Choosing the Right Configuration for the Task

With 31 configurations available, selecting the right spiral shaped bur comes down to matching head diameter and length to the task rather than choosing a grit, since nearly the entire range is standardised on Extra Coarse.

Where Spiral Shaped Burs Fit in Everyday Practice

Because this shape is purpose-built for cutting extremely hard restorative materials, it earns a distinct, specialised role that general-purpose diamond shapes are not well suited to filling.

Zirconia Crown and Bridge Sectioning and Removal

When an existing zirconia crown or bridge needs to be removed whether due to fracture, recurrent decay beneath the margin, or a planned redesign a spiral shaped bur is typically the only practical instrument capable of sectioning through the material in a reasonable amount of chair time without excessive heat buildup or rapid bur wear.

Occlusal Reduction on Monolithic Zirconia

Adjusting the occlusal surface of a monolithic zirconia restoration, whether at try-in or after cementation, requires an instrument capable of efficiently reducing a material that standard diamond shapes struggle against. Spiral shaped burs handle this reduction while the flute geometry helps keep the cutting zone clear of debris during what is often an extended adjustment.

Lithium Disilicate (E-max) Adjustment

While somewhat less hard than zirconia, lithium disilicate restorations still benefit from the extra-coarse, debris-clearing geometry of a spiral shaped bur during chairside contact and occlusal adjustment, particularly when more than minor polishing-level correction is required.

PFM Coping and Metal-Ceramic Removal

Spiral shaped burs are also used to section porcelain-fused-to-metal copings and other metal-ceramic restorations that need to be removed, where the combination of hard porcelain and underlying metal substructure benefits from an aggressive, debris-clearing cutting geometry rather than a standard fine-particle diamond shape.

Spiral Shaped vs. Standard Diamond Shapes for Ceramic Cutting

Choosing between a spiral shaped bur and a general-purpose diamond shape comes down to what material is actually being cut. The table below summarises the practical difference.

Using a standard continuous-surface diamond shape against zirconia is possible in theory, but the bur loses cutting efficiency far faster and generates significantly more heat than a spiral shaped bur designed for exactly that material. Conversely, spiral shaped burs are not the right choice for routine tooth-structure preparation, where their extra-coarse grit and aggressive flute geometry would remove material far less predictably than a shape designed for enamel and dentine.

Technique Tips for Predictable, Repeatable Results

Common Mistakes to Avoid

Caring for Your Gold Diamond Spiral Shaped Burs

• Rinse under running water immediately after use to remove ceramic and metal debris, then place in an ultrasonic cleaner with enzymatic solution for 3–5 minutes before sterilisation.
• Sterilise by steam autoclave at 134°C. Avoid dry-heat sterilisation, which degrades the gold-alloy bonding matrix over repeated cycles.
• Store spiral shaped burs in a dedicated bur block, keeping the flute channels free of debris that could remain trapped from a previous procedure and affect the next cut.
• Inspect the flutes and ridges under magnification before each use visible particle loss along the raised ridges is a sign the bur is approaching the end of its useful life for ceramic cutting.
• Expect a shorter functional lifespan than general-purpose diamond shapes given the demanding nature of zirconia and ceramic cutting, and budget for more frequent replacement in a busy practice or lab.

Frequently Asked Questions

Conclusion

The spiral shaped bur fills a role that general-purpose diamond shapes simply are not built for efficient, controlled cutting of zirconia, lithium disilicate, and other high-strength ceramic materials that are becoming increasingly common in modern restorative and prosthetic work. The helical flute geometry clears debris and manages heat in a way a continuous diamond surface cannot, and the near-universal Extra Coarse grit across the range reflects just how much harder these materials are to cut than natural tooth structure.

As with every shape in the DiaGold range, the 24K gold-plated bonding matrix is what turns that geometry into a dependable, repeatable clinical and laboratory tool securely bonded particles under heavy mechanical load, corrosion resistance through frequent sterilisation, and consistent performance across the demanding, repeated use these instruments typically see. Matching head diameter and length to the specific ceramic-cutting task, combined with light, intermittent technique and ample coolant, is what makes this specialised shape genuinely useful rather than merely aggressive.
