Operative and Surgical Carbide Burs Flat End Taper: Everything You Need to Know

Introduction: Why Bur Shape Matters More Than You Think

Open any dental bur block and you will see dozens of small instruments that look almost identical at first glance. A dental student might assume that a bur is just a bur, a tiny spinning tool that removes tooth structure. In practice, nothing could be further from the truth. The shape of the head decides where the bur can reach, how the walls of a preparation are angled, what the floor looks like, and how much healthy tooth is left behind when the work is finished.

The flat end taper carbide bur is one of the clearest examples of this idea. It is a narrow cone with a flat tip, covered in cross cut blades, and it appears in everyday restorative work, in crown removal, and in many surgical procedures. Once you understand why it is built the way it is, the rest of the bur block starts to make sense.

This guide is written for dental students, new graduates, assistants and anyone who is simply curious about how these instruments work. We will keep the language clear and avoid assuming advanced knowledge. By the end you will know what operative and surgical carbide burs are, how the flat end taper design behaves, where it is used, and how to pick the right size from the Flat End Taper collection at GoldBurs.

What Are Operative and Surgical Carbide Burs?

Carbide burs are rotary cutting instruments made from tungsten carbide, an extremely hard material that holds a sharp edge far longer than ordinary steel. The head is a set of precisely ground blades attached to a metal shank, and that shank fits into the chuck of a dental handpiece. When the handpiece spins, the blades shear away tooth structure, old filling material or bone in small, controlled chips.

The phrase "operative and surgical" simply describes the two broad areas where this family of burs is used. Operative dentistry covers the preparation and restoration of teeth: removing decay, shaping cavities, refining margins and removing old restorations. Surgical use covers situations where the clinician needs to section a tooth, reshape bone or gain access during an extraction. Many carbide burs serve both purposes, which is why operative and surgical carbide burs are normally grouped together in one collection.

Within this family you will find several head shapes: round, inverted cone, pear, straight fissure, round end fissure and the tapered fissure we are discussing today. Each shape solves a particular geometry problem. A round bur opens a carious lesion, an inverted cone undercuts a retention groove, and a tapered fissure bur shapes walls that open slightly toward the top of the preparation.

Anatomy of a Flat End Taper Bur

The name tells you almost everything. "Flat end" describes the tip, "taper" describes the profile of the head, and in this range the blades are arranged in a "cross cut" pattern. Let us look at each part separately.

Because the three features work together, the bur behaves very differently from, say, a plain straight fissure bur. The taper gives the clinician more forgiveness with angulation. The flat end creates a defined floor without needing a second instrument. The cross cut pattern keeps the cutting action smooth, which matters a great deal when you are working in a small space under a rubber dam or in restricted access.

It also helps to know that carbide burs cut by shearing, while diamond burs cut by abrasion. That difference is the starting point for the next section.

Carbide vs. Diamond: Which One Does What?

Beginners often ask why a practice needs both kinds of bur. The answer is that each material has strengths in different situations. Carbide is the better choice when you need efficient cutting of dentine, metal or bone. Diamond is the better choice for hard, brittle ceramic and for controlled enamel reduction. Most clinicians reach for both within the same appointment.

If you want to see the diamond side of the story, the DiaGold diamond burs range includes a matching flat end taper diamond bur. Many clinicians use the carbide version to establish the preparation and a diamond version of the same shape to refine it.

Where Flat End Taper Carbide Burs Are Used

A taper fissure bur with a flat tip is a flexible instrument. The exact technique varies by clinician and by case, but the following situations are among the most common.

• Cavity preparation: Shaping walls and floors for direct restorations where a slightly divergent, flat-floored form is wanted.
• Removing old restorations: Cutting through amalgam or sectioning a failed filling so it can be lifted out in pieces rather than ground away.
• Crown sectioning: Cutting a groove through a metal or porcelain-fused-to-metal crown so it can be split and removed with minimal stress on the tooth.
• Refining internal line angles: Cleaning up preparation walls after a larger bur has done the bulk of the removal.
• Surgical access: Sectioning teeth during difficult extractions and contouring bone where a cross cut blade is appropriate.

Notice that most of these tasks share one theme: the clinician needs a bur that cuts quickly but still gives a predictable shape. That is exactly the balance a tapered cross cut design is meant to strike.

Meet the GoldBurs Flat End Taper Range

The Flat End Taper collection currently features six taper fissure cross cut burs. Five of them are standard shank designs numbered 699, 700, 701, 702 and 703, and the sixth is the 702L, which uses a solid shank. Each is sold in packs of 10 or 100, so it is easy to try one size or stock up for a busy clinic. Let us walk through them in three small groups.

699 and 700 Taper Fissure Cross Cut Burs

The 699 and 700 sit at the slimmer end of the numbered series. They are a natural starting point for narrow preparations and conservative work, where preserving healthy tooth structure is the priority. Because the head is smaller, it is also easier to control when access is limited.

If you are still learning, buying a small pack of 699 and 700 side by side is a simple way to feel the difference in head size. Pair them with a round carbide bur for caries access and you already have a basic cavity preparation sequence.

701 and 702 Taper Fissure Cross Cut Burs

The 701 and 702 move into mid-range territory. Their larger heads remove tooth structure and old material more efficiently, which makes them popular for general restorative work and for sectioning tasks. These are the burs many clinicians keep in the front row of their block.

When a case calls for a straight-walled form instead of a divergent one, compare these with the flat end cross cut fissure burs in the same operative family.

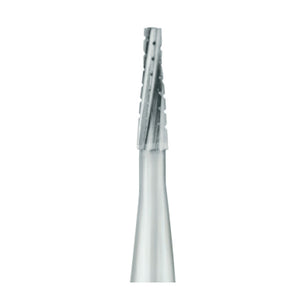

702L Solid Shank and 703 Taper Fissure Burs

The last two burs round out the range. The 703 is the largest of the numbered standard-shank series, and the 702L offers the 702 profile in a solid shank design. Solid shank burs are typically chosen by clinicians who want a one-piece instrument with strong feedback and stable performance during demanding cuts such as sectioning.

How to Choose Between 699, 700, 701, 702 and 703

Choosing a size is mostly a question of how much access you have and how much material you need to remove. As a general rule, the numbers rise with the size of the head. A smaller head is gentler and more precise, while a larger head cuts more per pass but needs more room and a steadier hand.

A practical approach for new clinicians is to begin with two neighbouring sizes, such as 700 and 702, and expand the range once you know which one you reach for most. It is better to own a few burs you understand well than a large collection you rarely use.

Flat End Taper vs. Other Carbide Bur Shapes

No single bur does everything. Understanding how the flat end taper compares with its neighbours helps you build a sensible set. The table below gives a quick overview, followed by links to the relevant collections if you want to explore further.

If your work also involves finishing and contouring, the trimming and finishing flat end taper burs offer a similar profile with finer blades. Laboratory technicians can look at the HP flat end taper diamonds, and those cutting metal restorations may also want to see the X-Rex flat end taper burs.

Basic Technique: Using a Taper Fissure Bur Safely

Good results come from simple habits repeated consistently. The steps below describe a general workflow for a conservative preparation. Always follow your training, your supervisor's instructions and the guidance for the handpiece you use.

1. Check the bur before you start

   Look at the head under good light. The blades should be sharp and intact, and the shank should be straight. A damaged bur vibrates and cuts unpredictably, so discard it.

2. Seat it fully in the chuck

   Insert the shank until it is fully engaged, then give it a gentle tug to confirm it is secure. A bur that is not seated correctly can wobble or slip during use.

3. Use water and a light touch

   Keep the water spray running to protect the tooth from heat and to clear debris. Let the blades do the work with light, intermittent pressure rather than pushing hard.

4. Watch the angle of the taper

   Hold the bur so its long axis follows the planned wall direction. Remember that the taper already opens the wall, so do not add extra tilt unless you intend it.

5. Finish with a check

   Dry the preparation and inspect the floor and walls for smoothness. Refine any rough areas with a lighter pass or a finer instrument before moving to the next stage.

Common Mistakes Beginners Make

Everyone makes errors while learning. The good news is that most of them are easy to avoid once you know what to look for.

Cleaning, Sterilising and Replacing Carbide Burs

Proper care protects both the patient and the instrument. Carbide burs are generally reusable, but they should be cleaned and sterilised in line with the manufacturer's instructions and your local infection control rules. A typical workflow looks like this:

• Rinse each bur soon after use so blood and debris do not dry on the blades.
• Clean the head, ideally in an ultrasonic bath with a suitable solution, and inspect it for remaining debris.
• Sterilise using the method recommended in the instructions for use, then store in a clean, closed bur holder.
• Inspect under magnification before every use and discard any bur with chipped blades, bent shanks or corrosion.

Because every clinic has its own routine, many teams like to keep a spare set ready while the first is being processed. A bur holder or an organised kit makes that easier, and you can browse the GoldBurs kits collection for organisers and multi-use sets that suit a busy operatory.

Buying Guide: Packs of 10 vs. Packs of 100

Every product in the Flat End Taper range is available as a pack of 10 or a pack of 100. The right choice depends on how you work.

A pack of 10 suits students, new practitioners and anyone testing a size for the first time. It keeps the upfront cost low and lets you compare burs without committing to a large order. At the starting price of $15.00, it is also a practical way to refill a single position in your bur block.

A pack of 100 makes more sense for busy clinics, group practices, dental schools and organisations that go through burs quickly. Buying in bulk reduces the number of reorders and helps ensure there is always a spare bur available. Larger packs of the standard burs reach up to $336.00, while the 702L solid shank ranges from $23.90 up to $199.00, so it is worth checking the variant prices on each page.

If you are comparing suppliers, look at consistency from pack to pack, clear product information, and whether the shapes you need are available together. You can also browse the wider carbide burs collection to see every shape in one place, or download the DiaGold full catalogue for offline reference.

Frequently Asked Questions

Conclusion

The flat end taper carbide bur may look like a small detail in a crowded bur block, but it earns its place. The flat tip defines a clean floor, the taper opens the walls in a predictable way, and the cross cut blades keep the cutting smooth and efficient. Together they make a single instrument that handles preparation, removal and sectioning with confidence.

For anyone building their first set, the lesson is to start simple. Learn how one or two sizes behave, add others as your cases demand, and treat bur care as part of good clinical practice. The six burs in the GoldBurs range, from the slim 699 up to the larger 703 and the solid shank 702L, give you a clear ladder of sizes to grow into.
