1. What Are Flame Shaped T&F Burs?

Not every finishing task calls for the same head geometry. A broad occlusal surface and a tight interproximal embrasure demand very different approaches and this is exactly where the flame shaped Trimming & Finishing (T&F) bur earns its place alongside the round (ball) shape in a well-stocked finishing kit.

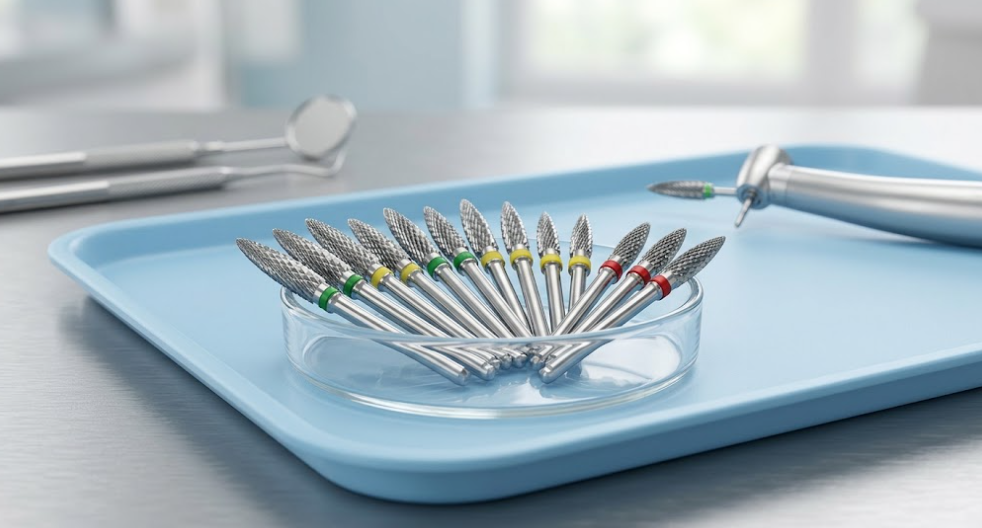

Flame shaped T&F burs are multi-fluted tungsten carbide instruments with a tapered, pointed profile wider at the base near the shank and narrowing to a fine tip. That geometry mirrors the shape of a flame, giving the instrument a natural ability to work into narrow, confined, or gradually curving areas that a spherical head can't access as precisely. Like other members of the T&F family, these burs are designed for the post-placement stage of restorative work trimming excess material, refining contours, and preparing a surface for final polish, rather than initial cavity or crown shaping.

Featured Products

7102 10-pk Multi use Trimming & Finishi...

$49.50

7104 10-pk Multi Use Trimming & Finis...

$49.90

7106 10-pk Multi Use Trimming & Finis...

$49.90

7108 10-pk Multi Use Trimming & Finish...

$49.90

This guide explains what makes the flame shape distinct, where it fits into a restorative finishing workflow, and how to choose from the full Flame Shaped T&F Finishing Burs range at GoldBurs.

2. Why the Flame Shape Matters

The defining feature of a flame shaped bur is its progressive taper the working diameter changes continuously along the length of the head, from broad near the base to narrow at the tip. That single geometric property unlocks a different set of clinical capabilities than a uniform, spherical shape offers.

Geometry: Wide Base to Fine Tip

Because the diameter narrows toward the tip, a single flame bur can address a range of surface widths within one instrument broader contouring near the base, and fine detail work at the point, without switching burs mid-procedure. This makes it particularly efficient for tasks that move from a wider surface into a narrowing space, such as finishing toward an interproximal contact or a tapering margin.

Versatility for Interproximal and Margin Access

The pointed tip is well suited to reaching narrow embrasures, fine grooves, and confined margin areas that a round head would either not fit into cleanly or would risk over-rounding. This makes the flame shape a natural complement to rather than a replacement for the round (ball) shape already covered in the Round (Ball) T&F range.

3. Core Clinical Applications

Flame shaped T&F burs support a range of finishing tasks where precision and confined access matter as much as surface refinement.

4. Flame vs. Round (Ball) T&F: When to Use Which

Both shapes are multi-fluted carbide finishers built for the same general purpose but their geometry suits different situations.

In practice, most well-equipped finishing kits include both shapes, moving between them as the anatomy of the case changes from broader surfaces to narrower, more confined detail work.

5. The Flame T&F Range at GoldBurs

The GoldBurs flame shaped T&F collection includes four distinct bur numbers.

Because these numbers share the same fundamental tapered geometry, differences typically come down to diameter, taper angle, and length worth comparing on each product page against the specific access challenge you face most often. The complete, current selection is always visible on the Flame T&F collection page, and the wider full T&F Finishing Burs range covers additional shapes for other finishing needs.

6. Choosing the Right Flame T&F Bur: Quick Reference

7. Technique Tips for Flame Finishing

1. 1 Use the Base for Broad Work, the Tip for Detail

   Take advantage of the taper start contouring with the wider portion near the base, then transition to the tip for fine detail and confined access as the task narrows.

2. 2 Approach Confined Spaces at a Controlled Angle

   Because the tip is fine and precise, approach narrow embrasures and grooves with a steady, controlled angle rather than a sweeping motion better suited to the round shape.

3. 3 Let the Flutes Do the Work

   Light pressure lets the multiple cutting flutes shear material smoothly pressing harder to compensate for a dull instrument typically produces a rougher, less controlled result.

4. 4 Keep the Field Cooled and Visible

   Water or air cooling helps clear fine debris from confined areas, which matters even more with a flame shape than a broader instrument, since visibility in tight spaces is already limited.

5. 5 Follow Up with Polishing Media

   As with any T&F finishing step, the flame bur refines shape and smooths the surface a genuine high-gloss finish typically still needs dedicated polishing points or paste to complete the process.

8. Common Mistakes to Avoid

9. Sterilization & Reuse Life

• Rinse and pre-clean promptly after each use, followed by an ultrasonic cycle with enzymatic solution before autoclaving.
• Steam autoclave at 134°C follow manufacturer sterilization guidance closely, since fine carbide tips can be more sensitive to inappropriate processing than broader instruments.
• Inspect the tip closely before each use because the flame shape depends on a precise point, even minor tip damage affects its performance more noticeably than on a round head.
• Store separately from round and shaping instruments, ideally in individual slots, to protect the fine tip from contact damage in a shared tray.
• Retire proactively once the tip shows any rounding or wear, since a flame bur's clinical value depends specifically on that fine point remaining intact.

11. Conclusion

Flame shaped T&F burs fill the access gap that a round (ball) instrument can't always close cleanly narrow embrasures, tapering margins, grooves, and confined detail work where a fine, controlled point matters more than omnidirectional reach. Their tapered geometry, from a broader base to a precise tip, lets one instrument move fluidly between general contouring and delicate finishing work within a single case.

Stocked alongside a round (ball) set, and used with the light, controlled technique fine carbide instruments call for, a flame T&F set rounds out a restorative finishing kit capable of handling nearly any surface geometry a case presents.
