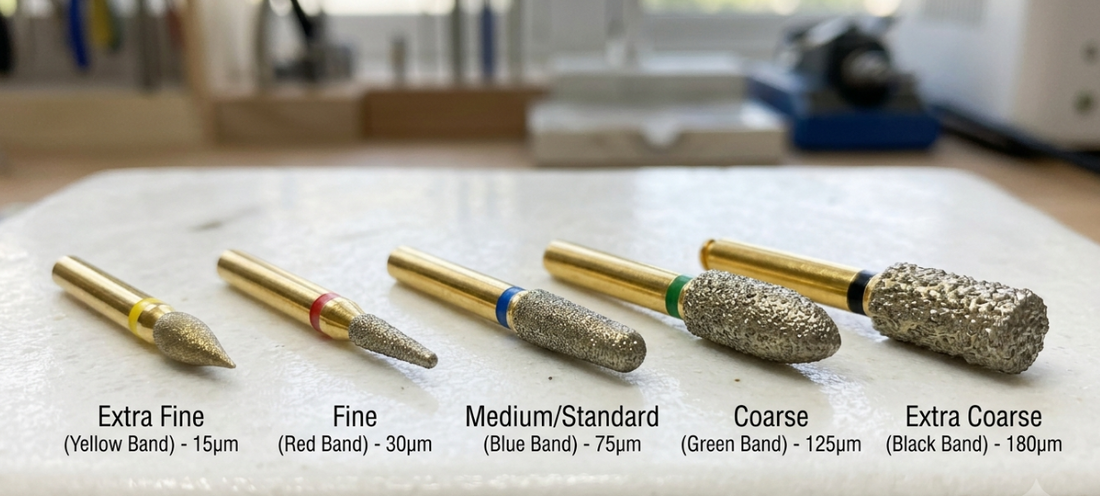

Gold Diamond Burs: Grit Guide Extra Fine to Coarse

Ultra fine is the smoothest cutting diamond grit available in the DiaGold range and in most clinical workflows, it is the last diamond instrument to touch a preparation surface before impressioning, bonding, or scanning. Its 15–25 µm particle size removes virtually no material in clinical terms; its function is entirely surface quality removing the shallow scratches left by the extra-fine grit step and producing a near-polished surface that faithfully captures in elastomeric impression materials and digital scan point clouds.

On composite and porcelain surfaces, ultra fine can be used for pre-polish surface conditioning before rubber polishing points, producing a smoother substrate for the final rubber polish and reducing the polishing time required to reach a clinically acceptable surface gloss. Ultra fine is also the standard grit for pre-bonding enamel conditioning in specific protocols where the bonding surface micro-texture needs to be controlled for optimal adhesive performance.

Ultra fine burs operate at moderate to slightly reduced speed 150,000–200,000 RPM with minimal pressure and continuous water irrigation. At this grit level, pressure is the primary determinant of result quality: any lateral force beyond 50 grams will create new scratches deeper than the ultra-fine particles can remove, negating the smoothing benefit of this grit step entirely.

Extra fine has become one of the most clinically important grit levels in the DiaGold range over the past five years, driven by the adoption of intraoral scanning as the primary impression modality in a growing proportion of restorative practices. Digital impressioning is exquisitely sensitive to preparation surface roughness where a conventional elastomeric impression will flow into and reproduce fine surface detail regardless of its orientation, an intraoral scanner captures surface geometry through structured light reflection, and rough surfaces scatter light unpredictably, reducing point cloud density and scan accuracy.

Research comparing preparation surface quality and its effect on intraoral scan accuracy consistently demonstrates that extra-fine finished surfaces (Ra 0.5–1.5 µm) produce 3–5× more accurate digital models than medium-grit surfaces (Ra 2–4 µm) on the same preparation, with measurable improvements in marginal gap accuracy in the final restoration. The 60–90 seconds required to make one extra-fine refinement pass before scanning is therefore one of the highest-value time investments in a restorative workflow.

For conventional impressioning, extra fine is the minimum recommended surface quality for all crowns, bridges, and fixed prosthetics where marginal gap accuracy is a primary concern. It is the grit at which the distinction between "acceptable preparation" and "excellent preparation" is most clearly made in surface quality terms.

Fine grit is the workhorse of the finishing and margin-definition phase in crown preparation and for many veneer preparation protocols, it is the primary working grit throughout the entire procedure. At 40–60 µm particle size, fine grit removes enough material to efficiently clean up medium-grit scratches and refine margin geometry, while producing a surface smooth enough to require only one or two additional passes with extra-fine or ultra-fine before impression or scanning.

The fine-grit flame bur (863 form, red band) deserves specific mention as one of the most clinically versatile instruments in any DiaGold inventory. Its combination of fine grit and flame head geometry makes it the standard instrument for cervical margin definition in veneer preparations, feather-edge margin work in anterior crowns, subgingival chamfer refinement, and any preparation context where a smooth, consistently defined margin in thin enamel is the primary clinical objective.

Fine grit is also the standard adjustment grit for chairside porcelain adjustments both PFM porcelain and all-ceramic crown deliveries. The fine-grit round-end taper or fine-grit needle diamond allows clinicians to adjust occlusal contacts, proximal contacts, and surface contours on ceramic restorations with minimal heat generation and a surface quality suitable for rubber-point polishing without an additional intermediate grit step.

Medium grit is the foundational grit of restorative dentistry the starting point for the overwhelming majority of crown and bridge preparations, the first-pass enamel reduction instrument, and the most frequently used diamond bur in a typical restorative practice. The DiaGold round-end taper (G/199-016S) and flat-end taper (G/173-018S) in medium grit are the core instruments of the DiaGold preparation range, designed to efficiently reduce enamel and shallow dentin while leaving a surface that requires only one or two finer-grit passes to reach impression quality.

Medium grit operates at full high-speed handpiece range 200,000–300,000 RPM with water irrigation and moderate pressure. At this grit level, higher speed with lighter pressure consistently outperforms lower speed with heavier pressure in both cutting efficiency and surface quality. The medium-grit particles are large enough to remove material rapidly at high speed without requiring the force compensation that lower speeds demand.

For zirconia cutting, "medium grit" designates a different instrument than for enamel or porcelain the DiaGold H856 Spiral Zirconia Bur uses a coarser diamond concentration specifically engineered for sintered zirconia, with the spiral flute geometry that maintains cutting efficiency on this harder substrate. The colour coding convention applies, but the underlying particle engineering is material-specific. Always confirm that a "medium grit" instrument is rated for the specific substrate being cut.

Coarse grit is the starting point for high-volume enamel removal and the initial pass on sintered zirconia and dense ceramics. With particle sizes of 125–150 µm, coarse instruments remove material faster than medium grit for equivalent pressure and speed conditions making them appropriate for cases requiring significant initial reduction where chairtime efficiency is a priority and surface quality at this stage is secondary to material removal rate.

The primary clinical applications for coarse grit in the DiaGold range are gross occlusal and axial reduction in heavy crown preparations with thick enamel, initial contouring of ceramic restorations in laboratory settings, and the first-pass zirconia reduction step before transitioning to medium or fine instruments for contour refinement. Coarse grit should never be used for margin definition or within 1–2mm of the finish line the surface it produces requires at minimum two additional grit steps to reach impression quality.

At 300,000 RPM with adequate water irrigation and light pressure, a sharp coarse-grit DiaGold bur cuts with remarkable efficiency on enamel, removing 0.3–0.5mm depth in a single pass without the preparation surface appearing excessively rough to the naked eye. The 24K gold-plated bonding matrix is particularly important at coarse grit level larger particles experience higher cutting forces per contact, making the lateral particle support of the gold layer proportionally more valuable than at finer grit levels.

Super coarse is the most aggressive grit in the DiaGold range reserved for situations where maximum material removal rate is the sole clinical priority and surface quality at this stage is entirely irrelevant because multiple subsequent grit steps will address it. In everyday restorative dentistry, super coarse is less commonly encountered than the other grit levels, but in specific high-volume or high-removal scenarios it is the only instrument that provides clinically adequate speed.

The primary applications for super coarse in clinical practice include removal of existing ceramic restorations (where speed of removal is the objective, not preparation of the underlying tooth at this instrument's use stage), initial gross reduction in severely over-erupted teeth requiring dramatic occlusal reduction, and in laboratory settings for rapid contouring of large ceramic or zirconia blocks before transitioning to coarse and medium grits for geometry refinement.

Super coarse should only be used with maximum water irrigation. The large particles generate significant heat per cutting contact, and on enamel with inadequate irrigation, pulpal temperature can rise rapidly. This grit level also produces the most significant vibration of any diamond bur, so handpiece condition and chuck security should be confirmed before use. Never use super coarse within 3–4mm of a critical margin or the finish line the depth and irregularity of the scratches it produces require more grit steps to correct than is practical in a chairside workflow.
