Trimming & Finishing Burs Explained: Blade Counts, Shapes and Clinical Applications

What Are Trimming & Finishing (T&F) Burs?

Trimming and finishing burs almost universally shortened to "T&F burs" on lab and clinical order sheets are multi-bladed tungsten carbide rotary instruments designed to refine a surface after the bulk of the cutting or shaping work has already been done. Where a cross-cut fissure bur or a coarse diamond removes material quickly, a T&F bur takes over once the goal shifts from removal to refinement smoothing a composite restoration, contouring an amalgam, polishing a crown margin, or trimming excess acrylic on a denture base.

The defining feature of a T&F bur is its blade count. Instead of the six, eight, or twelve flutes found on a standard operative carbide, trimming and finishing burs carry anywhere from 12 to 30-plus fine blades packed around the same head. That higher blade density changes the entire cutting behaviour of the instrument each blade removes a thinner shaving of material per rotation, which trades raw cutting speed for control, surface smoothness, and a dramatically reduced risk of gouging or chatter marks.

T&F burs sit in a specific position in the clinical workflow after shaping, before polishing. They are the bridge between "the restoration is the right size and contour" and "the restoration has a surface finish that looks and feels like natural tooth structure." Skipping this stage or using the wrong flute count or shape for the material is one of the most common reasons a technically well-shaped restoration still looks unfinished in the mouth.

Anatomy of a T&F Bur: Blades, Flutes and Carbide

Understanding how a T&F bur is built explains why it behaves so differently from both a standard operative carbide and a diamond bur. Three variables define its performance the number of blades (flutes), the flute geometry, and the carbide grade used to manufacture the head.

Blade Count and Flute Density

Every additional blade packed onto the head of a carbide bur reduces the amount of material each individual blade engages per revolution. A 12-blade finishing bur removes material noticeably faster and leaves a coarser surface than a 30-blade bur run at the same speed the higher-count instrument is, in effect, taking many more, much thinner passes across the same surface in the same amount of time.

This is why blade count, not just shape, needs to be specified when ordering or selecting a T&F bur. Two burs of identical shape but different flute counts are, functionally, two different instruments suited to two different stages of the same finishing sequence.

Why Tungsten Carbide

T&F burs are manufactured from tungsten carbide rather than diamond-coated steel because the cutting action required is fundamentally different from abrasion. A carbide bur shears material away with its machined blade edges a precise, directional cutting action that is ideal for controlling contour and defining fine surface detail on materials softer or more workable than enamel, such as composite resin, amalgam, provisional acrylic, and denture base resin. This shearing action, combined with a fine flute count, produces a smoother, more predictable surface than an equivalently fine diamond grit would on these materials, while still cutting efficiently enough to be practical chairside.

T&F Burs vs. Diamond Burs: When to Use Which

Clinicians sometimes default to diamond burs for every finishing step out of habit, but T&F carbides and diamonds are built for different substrates and different cutting mechanisms. Choosing between them correctly protects both the restoration surface and the adjacent tooth structure.

In practice, most restorative sequences use both instrument families in succession a diamond bur for enamel or ceramic reduction, followed by a carbide T&F bur once the working material shifts to something the T&F blade geometry is purpose-built to refine.

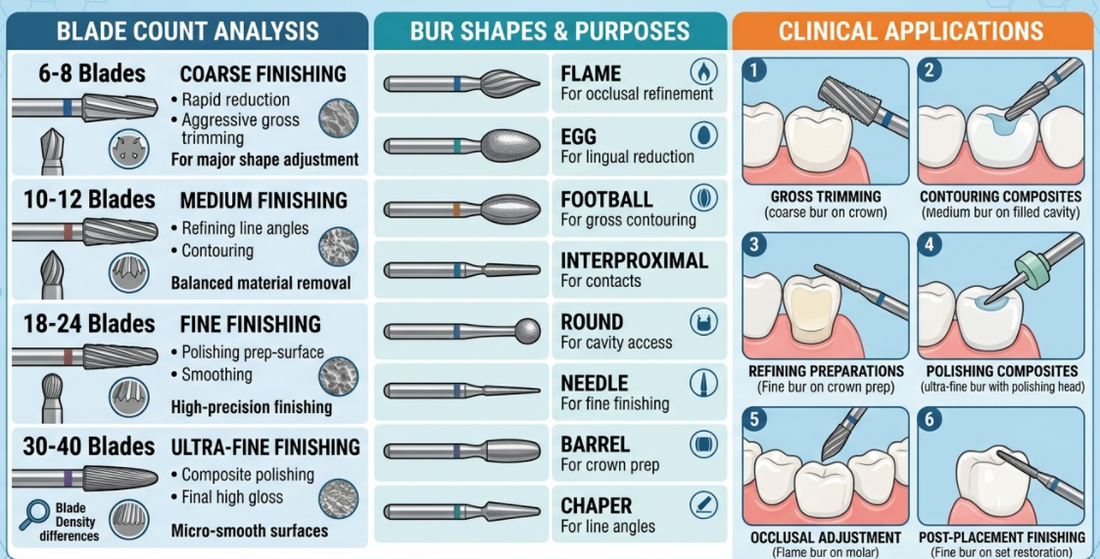

Flute Count Guide: Matching Blade Density to Clinical Task

As with grit selection on a diamond bur, flute count is the first decision to make when reaching for a T&F bur. Each density band has a defined role based on removal rate and the surface finish it leaves behind.

Essential T&F Bur Shapes and Their Uses

Shape determines access and the geometry of the surface being refined, exactly as it does for diamond burs. The GoldBurs T&F carbide range covers the full set of shapes a restorative or prosthetic finishing sequence typically requires.

T&F Burs for Composite Finishing and Polishing

Composite restorations depend on the finishing sequence more than almost any other restorative material, because the final surface texture directly affects both aesthetics and long-term staining resistance. An under-finished composite surface holds plaque, discolours faster, and never fully matches the light reflection of surrounding enamel.

T&F Burs for Amalgam Finishing

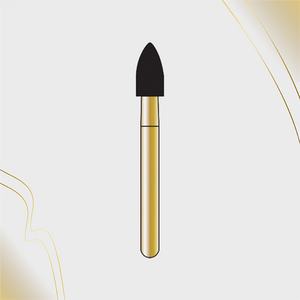

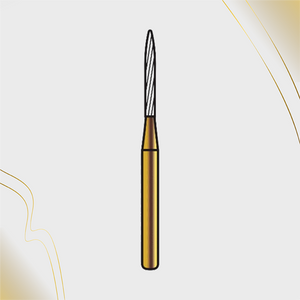

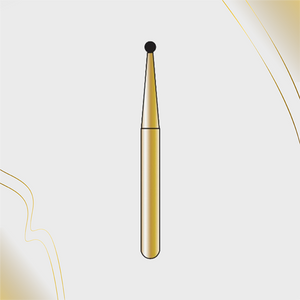

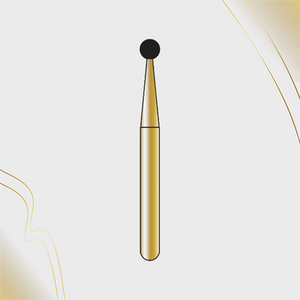

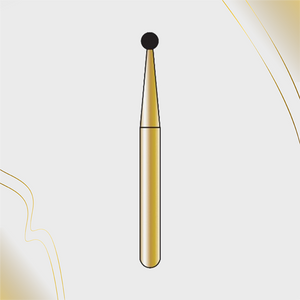

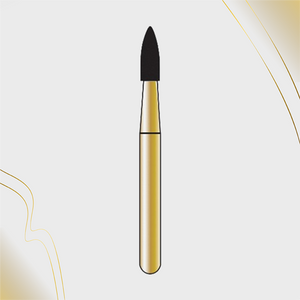

Amalgam restorations are typically finished at a delayed appointment, once the material has fully set, rather than chairside immediately after condensation. T&F carbide burs are the standard instrument for this stage round and flame shapes in the 12 to 20-flute range are used to remove flash at the margins, refine occlusal anatomy, and smooth the surface before rubber-cup polishing. Because set amalgam is considerably harder and more brittle than composite, technique control matters even more here excessive pressure or a coarse flute count applied too aggressively can fracture margins rather than smooth them, particularly at thin marginal ridges.

T&F Burs for Crown, Bridge and Provisional Margins

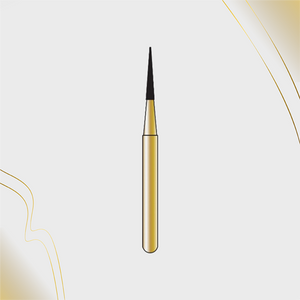

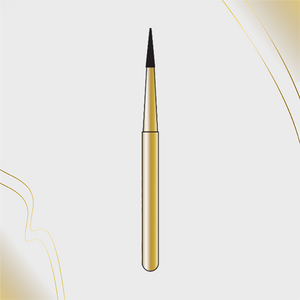

In fixed prosthodontics, T&F burs handle two distinct finishing tasks refining provisional crown and bridge material chairside, and finishing metal margins on cast or PFM restorations in the laboratory before final polishing. Chamfering and round-end taper shapes define smooth, well-adapted margins on provisionals, while flat-end and T Series taper round-end burs are used to refine axial contour and eliminate the coarse tool marks left by rotary reduction instruments during preparation adjustment. A clean, well-finished provisional margin also reduces the plaque accumulation and gingival irritation that a rough interim restoration can cause over weeks of wear.

T&F Burs for Denture and Acrylic Trimming

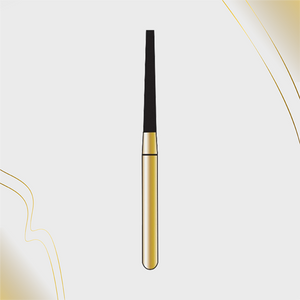

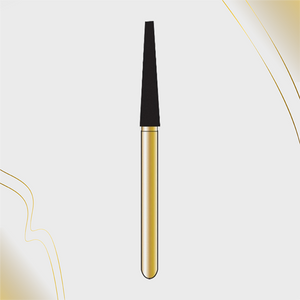

Acrylic denture bases and provisional appliances require a different balance of removal rate and control than tooth-coloured restorative materials the bulk of denture trimming work involves shaping and smoothing a comparatively soft polymer over a large surface area. Straight cylinder and taper cone carbides in the 8 to 12-flute range are typically used for bulk base adjustment and border trimming, moving to finer flute counts for smoothing the tissue surface and refining the polished surface contour before the final pumice-and-polish stage. Because acrylic generates heat quickly under rotary instrumentation, intermittent, light-pressure strokes are just as important here as in any other finishing application.

Procedure Bur Selection at a Glance

Technique Fundamentals: Speed, Pressure and Stroke

Handpiece Speed

T&F carbide burs are generally run at slower speeds than diamond cutting instruments typically low or mid-range on a high-speed handpiece, or on a slow-speed handpiece for denture and provisional work. Running a fine-flute finishing bur at full turbine speed increases friction and heat without improving the surface result the shearing action of a carbide blade is most controllable at a moderate, consistent speed.

Applied Pressure

Light, even pressure lets the blades shear material cleanly. Heavy pressure with a multi-flute finishing bur tends to load the flutes with debris, reducing cutting efficiency and increasing the risk of chatter marks or localized gouging the opposite of the smooth finish the instrument is meant to produce.

Dry Use and Debris Clearance

Unlike diamond burs for enamel reduction, most T&F carbide work on composite, amalgam, and acrylic is performed dry or with only intermittent air, since continuous water spray can wash away the visual feedback needed to judge surface finish in real time. Clear flutes of debris periodically with a quick air burst, since a loaded flute cuts unevenly regardless of blade count.

Stroke Pattern

Use light, overlapping strokes in a single consistent direction rather than a back-and-forth sawing motion. Consistent directional strokes produce a uniform surface texture, while reversing direction repeatedly tends to create cross-hatched scratch patterns that a polishing step alone cannot fully remove.

Common Mistakes When Using T&F Burs

Maintenance and Replacement Guidelines

• Rinse debris from flutes immediately after use, then process through ultrasonic cleaning before sterilisation
• Sterilise by steam autoclave following manufacturer cycle guidance  repeated dry-heat sterilisation can affect blade edge integrity over time
• Store in a dedicated bur block, separated by shape and flute count, to prevent blade-to-blade contact damage
• Inspect blade edges under magnification periodically visibly rounded or chipped blades no longer cut cleanly and should be replaced
• Replace fine and ultra-fine flute burs more frequently than coarse contouring burs, since their thinner blade edges dull faster under normal use
• Keep separate T&F sets for different material families (composite vs. acrylic vs. metal) where practice volume allows, to preserve blade sharpness for each specific application

Building Your T&F Bur Kit

A well-organised T&F kit, separated from your cutting and preparation burs, keeps the finishing sequence fast and predictable chairside. Here is a practical starting configuration covering composite, amalgam, and provisional finishing needs:

Conclusion

Trimming and finishing burs do quieter work than the instruments that shape a restoration, but the quality of that work shows up in every clinical result in how naturally a composite restoration blends into the surrounding dentition, how well a provisional margin protects the gingiva while a lab case is fabricated, and how smoothly a denture base fits and wears. Selecting the right flute count and shape for the material and stage in front of you, and moving through the full contouring-to-polishing sequence without skipping steps, is what turns an adequately shaped restoration into a genuinely finished one.

A well-organised, correctly matched T&F carbide set kept sharp, sorted by shape and flute count, and replaced on a sensible cycle is a small investment relative to the chair time and clinical outcome it protects.
