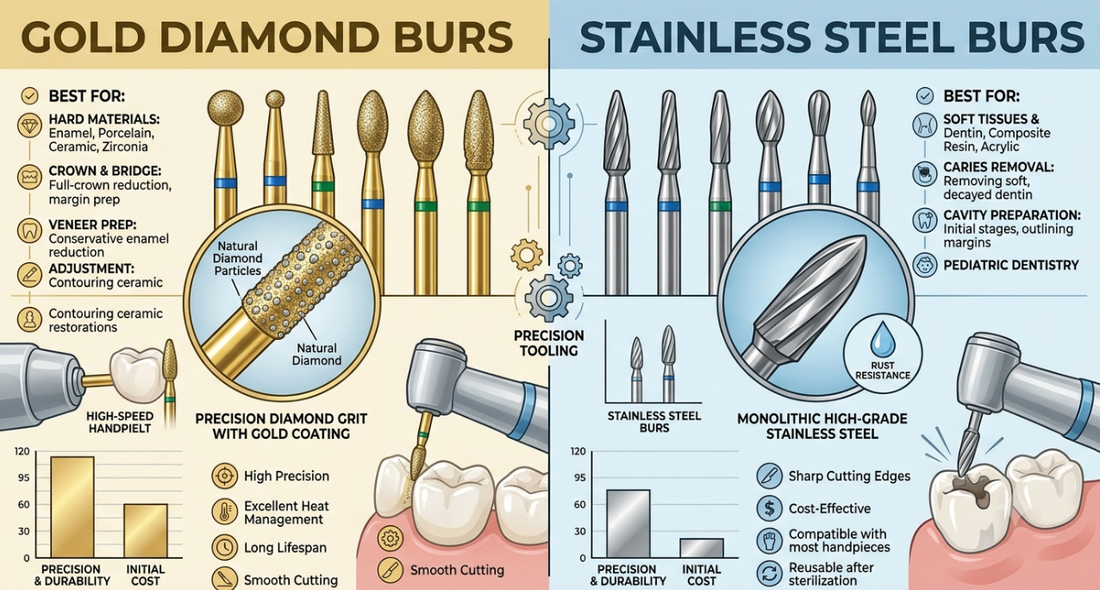

Gold Diamond Burs vs Stainless Steel Burs: Which Is Best for Precision Cutting?

Two Different Instruments for Two Different Jobs

Among the most common questions in dental instrument procurement is some version of "should I use diamond burs or carbide burs?" a question that reflects a genuine clinical need but is, in its framing, slightly misleading. Gold diamond burs and stainless steel carbide burs are not competing alternatives for the same task. They are different types of cutting instruments with different operating mechanisms, different material compatibilities, and different optimal applications. The question is not which is better it is which is better for a specific clinical task, on a specific substrate, at a specific stage of a specific procedure.

This guide answers that question systematically. It examines the two instrument types from the ground up construction, cutting mechanism, material compatibility, heat generation, surface quality, durability, and economics and provides a clear, procedure-by-procedure framework for when each instrument type serves the patient and clinician best.

Featured Products

Z298-021 / Zirconia Crown Adjustments G...

$59.90

Z298-014 / Zirconia Crown Adjustments G...

$59.90

Z277-023 / Zirconia Adjustment Egg 10pk

$59.90

Z276-031 / Zirconia Adjustment Football...

$59.90

Z225-018 / Zirconia Adjustment Inverte...

$59.90

Z198L-016/ Zirconia Adjustment Round En...

$59.90

Z198-021 / Zirconia Adjustment Round En...

$59.90

Z198-016 / Zirconia Adjustment Round En...

$59.90

Z167-010 / Zirconia Adjustment Pointed ...

$59.90

Z141-014 / Zirconia Crown Cutting Round...

$59.90

The DiaGold series from GoldBurs is the benchmark for gold diamond burs in this comparison 24K gold-plated, ISO-compliant, multi-use rated instruments across the full range of head shapes and grit levels. On the steel side, the comparison covers the standard tungsten carbide dental bur family trimming and finishing carbides, cross-cut fissures, non-end-cutting endodontic carbides, and the other specific configurations used in everyday restorative dentistry.

The Fundamental Difference — Abrasion vs. Shearing

The most important distinction between diamond and carbide burs is not material or cost it is the mechanism by which they remove material. These two mechanisms produce fundamentally different outcomes on different substrates, and understanding them is the foundation of all rational instrument selection.

This mechanism difference has a direct material implication: abrasive cutting (diamond) handles hard and brittle materials better because it removes material through micro-fracture without requiring a continuous shearing plane. Shearing cutting (carbide) handles soft and ductile materials better because it produces a cleaner cut surface on materials that deform rather than fracture under the cutting force. Using the wrong mechanism on an incompatible material produces a predictable failure carbide on enamel wears rapidly; diamond on soft dentin produces a rougher surface than carbide would at equivalent head geometry.

Anatomy of a Gold Diamond Bur

Understanding what a gold diamond bur is physically made of helps explain why it performs the way it does on different materials and why the 24K gold plating in the DiaGold series represents a meaningful engineering advancement over standard nickel-bonded diamond burs.

Anatomy of a Stainless Steel (Carbide) Bur

Despite the colloquial name "stainless steel burs," the cutting portion of dental burs in this category is almost universally made of tungsten carbide a composite of tungsten and carbon that is significantly harder than stainless steel but far softer than diamond. The "stainless steel" designation usually refers to the shank material, not the cutting head.

Flute Geometry — The Variable That Determines Carbide Performance

Where diamond burs are defined primarily by particle size (grit) and head shape, carbide burs are defined primarily by flute geometry. The number of flutes, their helix angle, their cross-sectional profile, and whether they include cross-cuts all determine cutting aggressiveness, chip evacuation efficiency, and surface finish on the target substrate. A 6-flute trimming and finishing carbide and a 4-flute cross-cut fissure carbide can have the same head shape but produce very different clinical outcomes on the same substrate.

Hardness, Materials, and Why It Determines Everything

The single most important factor in instrument selection for any cutting task is the relationship between the hardness of the cutting instrument and the hardness of the substrate being cut. This relationship determines whether a given instrument can cut a given material at all, how efficiently it does so, how long it lasts in that application, and what surface quality it produces.

Head-to-Head: Cutting Performance on Key Dental Materials

Translating the hardness table into clinical reality requires examining each key dental material individually how each instrument type performs in practice, not just in theory.

1. 1

   Enamel Diamond Wins Decisively

   Dental enamel is a hydroxyapatite crystal composite hard, brittle, and highly abrasion-resistant. Diamond burs cut enamel through controlled micro-fracture of the crystal structure, with efficiency that scales directly with rotational speed. Carbide burs on enamel produce one of the worst instrument-material mismatches in dentistry the flute edges cannot sustain a shearing action against a material nearly as hard as the flute material itself. A carbide bur on enamel dulls measurably within a single crown preparation and produces a rough, irregular surface that requires diamond refinement regardless. Gold diamond burs are the unambiguous choice for all enamel cutting tasks.

2. 2

   Dentin A Shared Application Zone

   Dentin is softer and less brittle than enamel it has an organic collagen matrix that provides some ductility. Both instrument types cut dentin effectively, but with different surface quality outcomes. Fine-grit diamond burs on dentin produce a micro-rough surface that is excellent for adhesive bonding (increased surface area). Fine-fluted trimming and finishing carbides on dentin produce a smoother, cleaner sheared surface with a consistent wall geometry that is preferred for some adhesive protocols and for post-space preparation. The choice in the dentin zone depends on the subsequent clinical step bonding or cementation rather than on cutting efficiency.

3. 3

   Porcelain and Glass Ceramics Diamond Essential

   All ceramic and glass-ceramic restorative materials feldspathic porcelain, lithium disilicate, leucite-reinforced ceramics are brittle, hard, and abrasion-resistant. Diamond burs cut these materials efficiently through abrasion of the glassy and crystalline phases. Carbide burs on ceramic produce essentially no controlled cutting the glassy material fractures unpredictably rather than shearing cleanly, and the flute edges wear rapidly in contact with the ceramic surface. Any chairside adjustment of ceramic restorations requires fine-grit diamond burs, full stop. A carbide bur on porcelain is not just suboptimal it produces uncontrolled chipping and micro-fractures that compromise the restoration's structural integrity.

4. 4

   PMMA and Temporary Crown Materials Carbide Preferred

   PMMA and bis-acryl temporary materials are among the most diamond-unfriendly substrates in dentistry. They are soft, slightly ductile polymers that do not fracture cleanly under diamond abrasion instead, the abraded material tends to melt slightly under friction heat and re-adhere to the diamond surface (swarf welding), progressively clogging the cutting surface and generating heat. Cross-cut carbide burs shear PMMA cleanly, produce a smooth surface suitable for polishing, and do not clog with abraded material. Trimming temporaries is one of the clearest cases where carbide significantly outperforms diamond.

5. 5

   Metal Alloys (PFM, Cast Metal) Carbide Clearly Better

   Metal alloys used in PFM frameworks, cast metal crowns, and implant components are ductile materials that deform plastically under abrasive contact rather than fracturing. Diamond abrasion on metal generates metal swarf that aggressively clogs the diamond cutting surface, dramatically reduces efficiency, and produces excessive heat from friction without effective material removal. Cross-cut carbide burs shear metal alloys cleanly, efficiently, and with surface finish quality that diamond cannot match on compatible metal substrates. The metal zone of a PFM restoration is strictly a carbide bur application.

Heat Generation A Critical Patient Safety Variable

Heat generation during cutting is not merely a bur performance issue it is a patient safety issue. Pulpal temperature rises above 42°C (5.5°C above baseline) are associated with irreversible pulpal damage, and this threshold can be reached during routine preparation without water irrigation within as few as 10 seconds of continuous cutting at high speed. Understanding the comparative heat generation profiles of diamond and carbide burs is therefore a clinical safety consideration, not just an instrument engineering footnote.

Surface Quality and Its Clinical Downstream Effects

The surface left by a cutting instrument is not simply a preparation surface it is the template from which every downstream clinical step (impression, digital scan, die, wax-up, restoration fabrication, cementation, bonding) derives its accuracy. Surface quality differences between diamond and carbide burs on compatible substrates have measurable clinical consequences at every subsequent step.

Diamond Bur Surface Quality Graded by Grit

Diamond burs produce surfaces whose roughness (Ra) is directly controlled by grit. Coarse grit produces high Ra (3–8 µm); ultra-fine grit produces Ra below 0.5 µm. This grit-selectability is unique to diamond burs no other cutting instrument offers the same range of surface quality outcomes from a single instrument family through simple grit selection. On enamel and ceramics, fine and extra-fine DiaGold grit levels produce preparation surfaces that exceed the requirements of both digital scanning and conventional elastomeric impressioning in terms of surface detail capture accuracy.

Carbide Bur Surface Quality Controlled by Flute Design

On compatible substrates, fine-fluted trimming and finishing carbides produce exceptional surface quality smoother and more uniform than diamond burs of equivalent head size on the same soft substrate. A 12-flute finishing carbide on dentin can produce Ra values approaching those of a fine-grit diamond on the same surface, but with more uniform directional scratch patterns that some adhesive protocols specifically favour. On incompatible substrates (enamel, ceramic), carbide surface quality is poor unpredictable fracturing rather than controlled abrasion produces irregular surfaces regardless of flute count.

Durability and Working Life Compared

Durability in diamond and carbide burs follows different mechanisms and should not be compared using the same metrics. Diamond burs degrade gradually through particle loss a progressive process whose rate is controlled by the bonding matrix quality and the hardness of the substrate. Carbide burs degrade through edge dulling the discrete cutting edges of the flutes lose their geometry when worn, with a relatively sudden performance drop when edge quality falls below the threshold needed for controlled shearing.

Clinical Applications: When to Reach for Each Instrument

The following use-case matrix provides a rapid reference for the most common clinical scenarios in restorative, prosthodontic, and endodontic dentistry with a clear instrument recommendation for each.

Cost and Economics The Real Per-Case Comparison

Instrument procurement decisions are often made on sticker price alone a comparison that consistently underestimates the actual economic difference between instrument types because it ignores case yield, performance consistency, and the downstream cost consequences of poor preparation quality. A more useful comparison uses cost-per-case as the economic metric.

Gold Diamond Bur Economics

DiaGold diamond burs have a higher per-unit cost than standard carbide burs. They have a rated case yield of 15–25 cases for standard enamel preparation applications, with significantly lower case yields on zirconia (6–10) compared to the near-complete failure of standard instruments on the same substrate. The per-case cost of DiaGold instruments for enamel, ceramic, and zirconia applications is typically competitive with or lower than standard nickel-bonded diamond alternatives when case yield is factored in and dramatically better for zirconia where standard instruments effectively have no viable alternative.

Carbide Bur Economics

Carbide burs typically have lower per-unit costs than diamond burs and achieve high case yields (20–40 cases) on soft substrates like dentin, composite, and metal. For high-volume applications on compatible substrates (composite finishing, temporary adjustment, metal crown modification), carbide burs represent excellent per-case economics. The critical economic caution: using a carbide bur on an incompatible substrate (enamel, ceramic) destroys the instrument rapidly and produces no acceptable clinical result the instrument cost is entirely wasted.

Sterilisation Compatibility and Instrument Maintenance

Both gold diamond burs and carbide burs are designed for multi-use with autoclave sterilisation between patients. However, each instrument type has specific maintenance requirements and sterilisation sensitivities that determine how well it retains its performance through repeated cycles.

Using Both in the Same Workflow The Optimal Protocol

The most effective restorative instrument workflows in 2026 do not choose between diamond and carbide they use both, in sequence, with each instrument applied in the zone where its cutting mechanism provides the best outcome. Understanding where the transition points between the two instrument types occur in common procedures is the practical application of everything this comparison has covered.

Crown Preparation The Transition Protocol

Begin with DiaGold medium-grit round-end taper (diamond) for depth grooves and initial enamel reduction. Continue with diamond through all enamel removal and into shallow dentin on axial walls. Transition to fine-fluted trimming carbide for final dentin wall smoothing once enamel has been cleared from the axial walls the sheared dentin surface supports better adhesive bond formation than diamond-abraded dentin. Return to DiaGold fine and extra-fine diamond for final margin definition and pre-impression surface refinement of the enamel margin area.

PFM Crown Adjustment at Delivery The Dual-Instrument Protocol

PFM crowns present both a porcelain veneer and a metal collar in the same restoration. Any adjustment to the porcelain surface requires fine-grit DiaGold diamond full stop. Any adjustment to the metal collar or metal occlusal surface requires cross-cut carbide. Never use diamond on metal, never use carbide on fired porcelain. Keep separate instrument trays for each zone when delivering PFM restorations to avoid tool-to-zone confusion mid-procedure.

Endodontic Access The Sequential Protocol

The DiaGold fine round ball (diamond) for initial enamel penetration. Non-end-cutting carbide (Endo-Z type) for pulp chamber roof removal this is the only instrument appropriate for this step due to its safety profile. DiaGold fine long-neck taper (diamond) for lateral access extension, orifice location, and calcified canal navigation. Gates Glidden drills (RA shank carbide) for coronal flaring. The sequence uses both instrument types in clearly defined, distinct roles.

Verdict: Which Should Your Clinic Choose?

Based on everything this comparison has established, the answer to "gold diamond burs or stainless steel carbide burs" is not either/or it is a systematic allocation of each instrument type to the specific clinical tasks and materials where it objectively outperforms the other.

Conclusion

Gold diamond burs and stainless steel carbide burs are not competitors for the same clinical territory they are complementary instruments that address different material compatibility zones through fundamentally different cutting mechanisms. The clinician who understands when to use each, and how to sequence them within the same procedure, has access to a combined capability that neither instrument type provides on its own.

The evidence-based summary of this comparison is straightforward: use gold diamond burs for all tasks involving enamel, ceramics, glass-ceramics, and zirconia materials that are hard, brittle, and require the abrasive micro-fracture mechanism that only diamond provides. Use carbide burs for dentin smoothing, composite finishing, PMMA temporaries, and metal alloy cutting materials that are soft to moderate in hardness and ductile enough to benefit from the clean shearing action that precision-milled carbide flutes deliver.

Within the diamond bur category, the 24K gold-plated DiaGold series from GoldBurs provides measurably better particle retention, cutting consistency, autoclave resilience, and thermal performance than standard nickel-bonded diamond alternatives making it the premium choice for the hard-material cutting tasks that diamond burs own exclusively. Combined with a well-maintained carbide bur inventory for the dentin, composite, and metal zones, the DiaGold plus carbide combination provides a complete, material-optimised instrument setup for every clinical scenario in a modern restorative practice.

Explore the complete DiaGold gold diamond bur range at GoldBurs.com all shapes, grits, and zirconia-specific instruments, together with the full technical product catalogue available for download.
