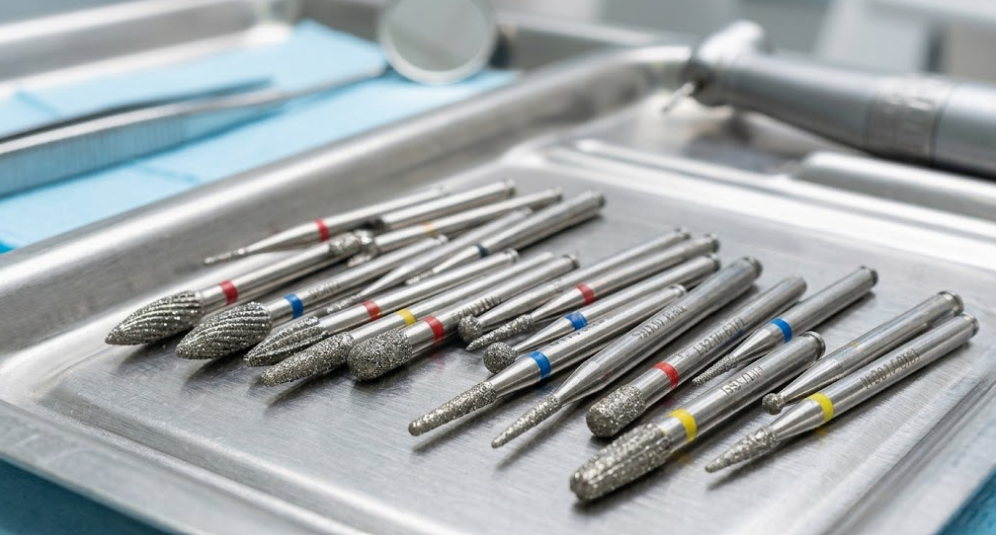

Endo Diamond Burs: The Complete Guide to Access, Refinement and Safe-End Precision

1. What Are Endo Diamond Burs?

Endodontic access is a procedure of contradictions. It requires enough cutting power to move quickly through enamel and dentine to locate the pulp chamber, yet enough control to avoid gouging the chamber floor, weakening canal walls, or damaging a root already compromised by decay or a previous restoration. Most of the cavity-preparation burs used elsewhere in the mouth are not built for this balance they are either too aggressive for the confined, often poorly visualized space of a pulp chamber, or lack the safe-end tip geometry that lets a clinician work against a canal wall without cutting into it.

Endo diamond burs are purpose-built to close that gap. They combine a diamond-abrasive cutting surface with tapered, elongated, or pointed-cone head geometries specifically designed for chamber access, orifice refinement, and canal-wall smoothing often paired with a rounded, non-cutting "safe end" that protects the canal floor or a lateral wall from inadvertent perforation. Alongside the diamond range, endo carbide burs including safe-end carbide designs fill a complementary role for the earlier, more aggressive stages of access where rapid material removal through sound tooth structure or old restorative material takes priority.

Featured Products

151Z | 10-pk Large Gold Endo Carbide

$59.50

152EZ | 10-pk Safe End Endo Carbide

$59.50

190-019 | 10-pk Endo Diamond Bur Pointe...

$59.50

199Z | 10-pk Endo Carbide (Medium with ...

$59.50

219-012 10-pk Safe End Endo Diamond Bur...

$59.50

219-016 10-pk Endo Diamond Bur, Tapere...

$59.50

This guide covers how endo diamond burs work, how they differ from endo carbides, the shapes and safe-end designs available, and how to build a rational instrument set around the Endo Diamonds & Carbide collection from GoldBurs.

Endo Diamond Burs vs. Endo Carbide Burs

Endodontic access instruments generally fall into two families, and understanding the mechanical difference between them clarifies why a well-equipped operatory stocks both rather than relying on one alone.

When to Choose Each Instrument

In practice, the two families are used sequentially rather than as alternatives to one another. A carbide bur such as the 151Z Large Gold Endo Carbide typically opens the initial access cavity through the occlusal or lingual surface, removing bulk tooth structure efficiently. Once the pulp chamber is located, a diamond instrument takes over for the more delicate work deroofing the chamber, locating canal orifices, and refining walls without the risk of gouging that a still-aggressive carbide edge can pose in tighter quarters.

Anatomy of an Endo Diamond Bur

Three design elements distinguish an endo diamond bur from a general-purpose diamond instrument: an elongated working length suited to chamber depth, a tapered or pointed-cone profile that follows the natural convergence of a canal toward the apex, and in many designs a rounded, non-abrasive tip.

The Safe-End (Non-Cutting Tip) Design

A "safe end" refers to a rounded, non-cutting tip at the very apex of the bur head. Because the tip does not carry an abrasive diamond coating, the instrument can be advanced along or against the chamber floor, a canal wall, or the junction between the two without cutting into that surface cutting occurs only along the sides of the head, where it is intended to happen. This single design feature is one of the most important safety mechanisms available in access-opening instrumentation, since chamber-floor perforation and lateral wall thinning are among the most consequential errors in endodontic treatment.

Within the GoldBurs range, this principle appears repeatedly: the 152EZ Safe End Endo Carbide, the 219-012 Safe End Endo Diamond Bur, and the entire E-series tapered safe-end diamonds are all built around this rounded-tip concept, applied across a range of tapers and grits.

Core Applications in Endodontic Treatment

Endo diamond and carbide burs support several distinct steps across a root canal workflow, not a single isolated task.

1. Pulp Chamber Access and Deroofing

   After initial penetration with a carbide bur, a tapered or pointed-cone diamond bur removes the remaining chamber roof, exposing the pulp horns and canal orifices while preserving as much sound peripheral dentine as the case allows.

2. Canal Orifice Refinement

   Fine-taper safe-end diamonds such as the extra-fine E216-010 or E218-016 smooth and flare canal orifices, improving straight-line access for hand or rotary files without over-enlarging the coronal third.

3. Removing Pulp Stones and Calcifications

   Calcified chambers require controlled, incremental removal of denticles and secondary dentine. A diamond instrument's abrasive action, used at light pressure, allows the clinician to work through calcification gradually rather than risk a sudden shear-cut skip with a carbide tip.

4. Perforation Repair Site Preparation

   When repairing a perforation, a safe-end diamond bur can refine the margins of the defect for a repair material without extending the perforation further the rounded tip working alongside, rather than into, the compromised area.

5. Post-Space and Core Preparation Support

   Following obturation, tapered endo diamonds assist in shaping coronal access for a post or core build-up, maintaining a smooth transition between the canal orifice and the prepared coronal structure.

Shapes in the GoldBurs Endo Range

The Endo Diamonds & Carbide collection covers several distinct head geometries, each suited to a different stage or style of access preparation.

6. Choosing the Right Endo Bur: Quick Reference

Technique Fundamentals for Safe Endodontic Access

1. Work Under Magnification Whenever Possible

   Endodontic access happens in a small, deep, and often poorly illuminated space. Loupes or a dental operating microscope dramatically improve the clinician's ability to see the chamber floor and orifice anatomy before and during bur use.

2. Sequence from Carbide to Diamond

   Use a carbide bur for the initial, more aggressive stage of access, then transition to a diamond instrument ideally safe-end once the chamber roof is being approached, to reduce the risk of an uncontrolled shearing cut near the floor.

3. Use Light, Brushing Strokes Near the Floor

   Even with a safe-end tip, lateral cutting along the walls should be done with light pressure and short, controlled strokes rather than sustained pressure, which can still remove more structure than intended.

4. Irrigate Continuously

   Water cooling remains essential in endodontic access, both to control heat near the pulp and periapical tissues and to keep the field visually clear of cutting debris.

5. Confirm Orientation Before Advancing Further

   Periodically pause to relate the bur's position to a preoperative radiograph or scan, especially in calcified or anatomically unusual chambers, before continuing deeper with any instrument.

Common Mistakes in Endodontic Access

Sterilization and Bur Lifespan

• Pre-clean immediately after use rinse debris, then run an ultrasonic cycle with enzymatic solution before autoclaving to prevent dentine and pulp debris from hardening in the head.
• Steam autoclave at 134°C avoid dry heat sterilization, which degrades the diamond bonding matrix over repeated cycles.
• Store endo burs separately from general restorative burs in a dedicated block, both for organizational clarity and to protect the fine tapers and safe-end tips from contact damage.
• Inspect the safe-end tip before each use if the rounded tip shows wear, chipping, or an irregular profile, its protective function can no longer be relied upon and it should be replaced.
• Replace fine and extra-fine grit diamonds more frequently than coarser carbides their thinner working layer wears faster, and performance decline is harder to detect visually before it affects the case.

Building an Endo Diamond & Carbide Kit

A practice performing routine endodontic treatment benefits from a dedicated access kit that covers each stage of the procedure, drawn from the full Endo Diamonds & Carbide collection.

Conclusion

Endodontic access preparation sits at the intersection of speed and restraint enough cutting efficiency to reach the pulp chamber promptly, and enough control to protect the floor, walls, and remaining tooth structure once you're there. Endo carbide burs and endo diamond burs, used in the right sequence, give clinicians both halves of that equation: carbides for efficient initial opening, and diamonds particularly safe-end tapered and pointed-cone designs for the refined, conservative shaping that follows.

Building a dedicated endo kit around a graduated set of tapers, grits, and safe-end profiles means the right instrument is always on hand for the stage of the procedure you're in, rather than compromising technique because the ideal bur isn't in the tray. Explore the complete range to put together a kit suited to your case mix and clinical preferences.
