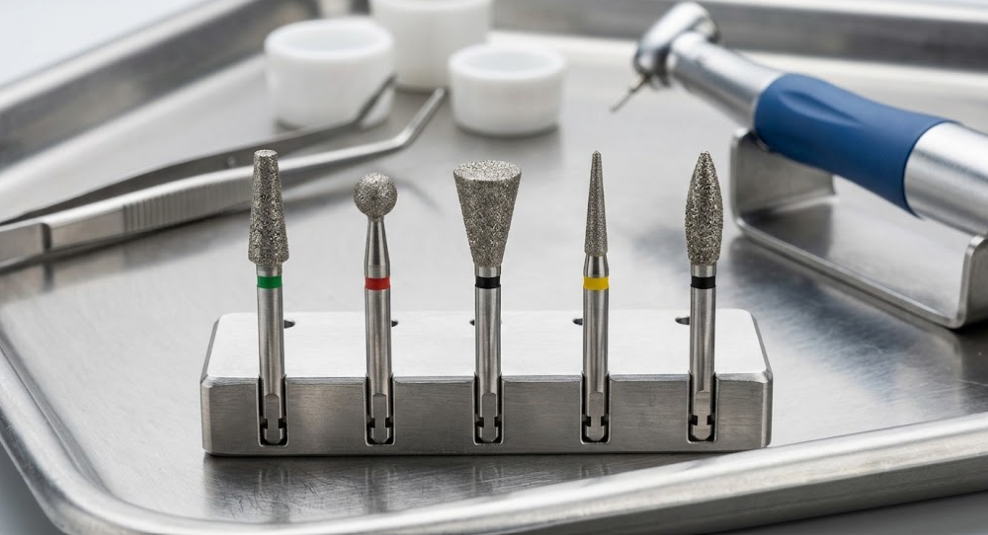

Right Angle Diamond Burs (RA/LA): The Complete Guide to Contra-Angle Precision

1 What Are RA/LA Diamond Burs?

Not every cutting task in the operatory calls for a high-speed handpiece. Selective grinding, denture and appliance adjustment, controlled caries removal in anxious or pediatric patients, and refinement steps where feel and control matter more than speed are all better served by a slow-speed contra-angle handpiece and that handpiece needs its own dedicated instrument family.

Right angle diamond burs, commonly labeled RA or LA (latch-angle), are diamond-coated rotary instruments built with a latch-type shank designed to lock into a slow-speed contra-angle handpiece rather than the friction-grip (FG) collet used by a high-speed handpiece. They carry the same diamond-abrasive cutting principle as any diamond bur, but the shank geometry, rotational speed range, and typical clinical role are distinctly different from their high-speed counterparts.

Featured Products

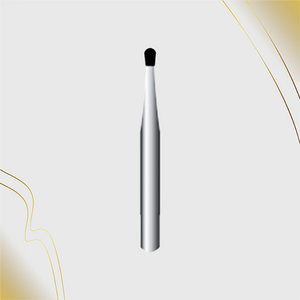

237-009s | (830R) 10-pk 330 Diamond Ped...

$39.90

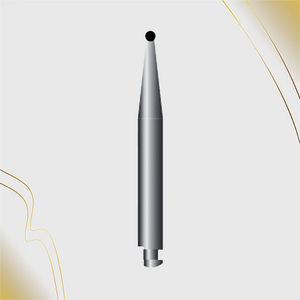

RA/001-009 (RA801) 10-Pk Multi use Righ...

$39.90

RA/001-010 (RA-801) 10-Pk Multi use Rig...

$39.90

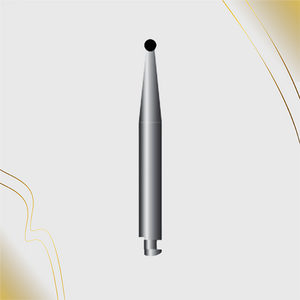

RA/001-012 (RA-801) 10-Pk Multi use Rig...

$39.90

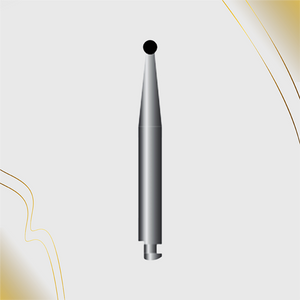

RA/001-014 (RA-801) 10-Pk Multi use Rig...

$39.90

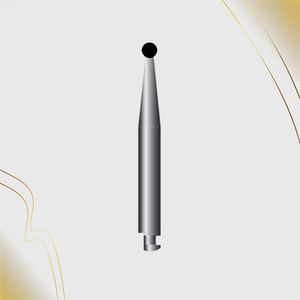

RA/001-016 | 10-Pk Multi use Right Angl...

$39.90

RA/001-018 | 10-Pk Multi use Right Angl...

$39.90

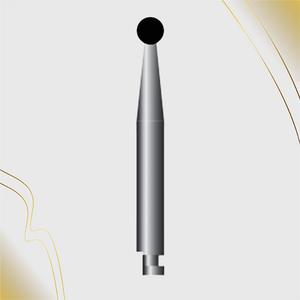

RA/001-023 | 10-Pk Multi use Right Angl...

$39.90

This guide explains how RA/LA diamonds differ from FG diamonds, where controlled low-speed cutting fits into everyday restorative and prosthetic work, and how to select the right diameter and length from the full RA / LA Diamond Burs collection at GoldBurs.

2 RA/LA Diamonds vs. High-Speed FG Diamonds

The core difference is not the diamond coating itself it's the delivery system and the resulting cutting dynamics.

Handpiece Compatibility & Fit

Because an RA/LA bur seats into a latch-type contra-angle rather than a friction-grip chuck, the two instrument families are not interchangeable using the wrong bur type in the wrong handpiece simply is not physically possible, which is a useful safeguard but also means an operatory needs both a stocked FG tray and a dedicated RA/LA set to cover the full range of procedures it performs.

When Low-Speed Cutting Is the Better Choice

Slow-speed contra-angle work earns its place whenever the priority shifts from rapid material removal to controlled, incremental adjustment:

• Lower vibration and noise — a meaningful comfort factor for anxious patients, pediatric cases, or patients with limited tolerance for high-speed handpiece sound and sensation.
• Finer tactile feedback — the reduced RPM lets the clinician feel resistance changes in real time, useful when adjusting an occlusal contact or refining a margin by very small increments.
• Suitability for non-tooth substrates — acrylic, composite, and metal-adjacent adjustment on removable prosthetics and appliances is frequently better controlled at slow speed.
• Reduced heat risk in short, repeated contacts — useful when making small, repeated adjustment passes rather than sustained cutting through sound tooth structure.

3 Core Clinical Applications

RA/LA diamond burs support a wide range of everyday procedures across general, pediatric, and prosthetic dentistry.

4 Anatomy: Shank, Diameter (L1) and Length (L2)

Each RA/LA diamond bur in the GoldBurs range is specified by two key dimensions beyond its latch-type shank L1, the effective head diameter or cutting width, and L2, the total working length. Matching these two figures to the clinical task is the single most important selection step once the correct instrument family has been chosen.

• L1 (diameter): A smaller L1 favors precise, localized adjustment a larger L1 covers more surface area per pass, useful for broader contouring or prosthetic base adjustment.
• L2 (length): Standard-length shanks (around 22 mm) suit typical adult access longer options (24–27 mm) extend reach for posterior or prosthetic work, while short pedo-length shanks (14–17 mm) are sized specifically for smaller mouths.

5 The Full RA/LA Range at GoldBurs

The collection spans a wide set of diameter and length combinations, organized by code family, so clinicians can match the exact working dimensions to the procedure at hand. The table below lists the range as published, grouped by code prefix for easier comparison.

Because the range is organized by code family 001, 010, 109, 110, 111, 130, 140, 167, 171, 173, 199, 249, and 257 each family covers a set of graduated diameters at a consistent working length, letting a clinician standardize on a preferred family and simply select the diameter that suits the procedure. The full, current selection is always visible on the RA / LA Diamond Burs collection page.

6 Choosing Diameter & Length: Quick Reference

7 Technique Tips for Low-Speed Diamond Use

1. Confirm the Bur Is Fully Seated in the Contra-Angle

   A latch-type shank must click fully into place before activation. An incompletely seated bur can wobble, cut unevenly, or disengage mid-procedure.

2. Match Speed to the Task, Not Habit

   Low-speed does not mean one fixed speed adjust RPM within the slow-speed range to suit whether the task is fine adjustment or broader contouring.

3. Use Light, Overlapping Passes

   Even at reduced RPM, sustained heavy pressure generates unnecessary heat and produces a rougher surface than a series of light, controlled passes.

4. Cool the Field When Cutting Tooth Structure

   Water or air-water cooling remains important whenever an RA/LA diamond is cutting sound tooth structure for any meaningful duration, even though heat build-up is generally lower than at high speed.

5. Check Fit Frequently on Prosthetic Adjustments

   When adjusting a denture or appliance, re-seat and re-check fit between short adjustment passes rather than removing material in one continuous pass, to avoid over-reduction.

8 Common Mistakes to Avoid

9 Sterilization & Care

• Rinse and pre-clean promptly after each use, followed by an ultrasonic cycle with enzymatic solution before autoclaving.
• Steam autoclave at 134°C avoid dry heat sterilization, which can degrade the diamond bonding matrix over repeated cycles.
• Inspect the latch mechanism on the shank before each use a damaged or worn latch groove can prevent secure seating in the contra-angle.
• Store by diameter family in a dedicated bur block, so the correct code and diameter is easy to locate mid-procedure.
• Retire instruments once cutting efficiency declines noticeably, rather than compensating with added pressure or longer contact time.

10 Conclusion

Right angle and latch-angle diamond burs fill a role that high-speed FG instruments simply aren't built for controlled, lower-vibration cutting on a slow-speed contra-angle, suited to adjustment, refinement, pediatric comfort, and prosthetic work across general practice. Matching the correct diameter (L1) and length (L2) to the procedure and to the patient, in pedo-length cases is the key selection step once the RA/LA family itself has been chosen over a high-speed alternative.

A well-stocked RA/LA tray, built from a representative diameter in each code family, keeps the right instrument on hand whether the next patient needs a denture adjustment, an occlusal refinement, or a gentler restorative visit.
