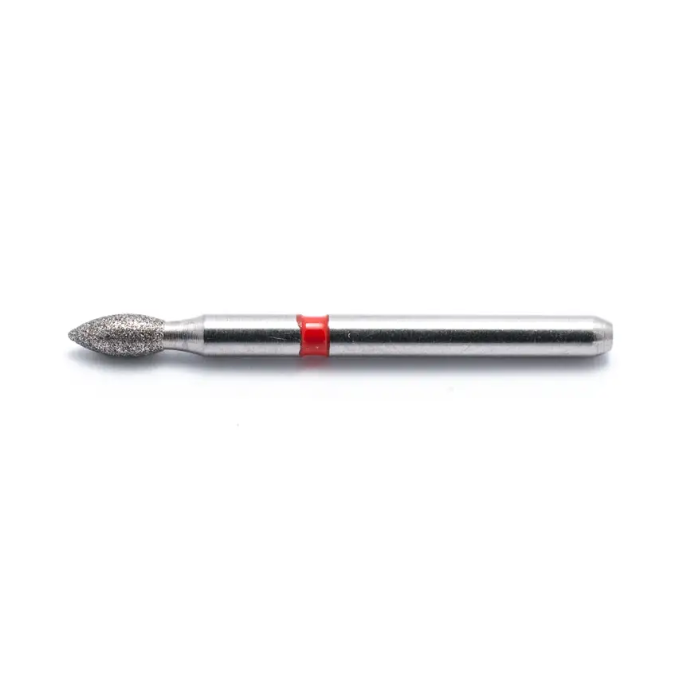

Extra Large Heads Diamond Burs: The Ultimate Guide to Powerful Tooth Reduction

What Are Extra Large Heads Diamond Burs?

Every dental procedure has a moment where speed matters as much as precision. Reshaping a denture base, removing bulk tooth structure before a crown, contouring acrylic, or working through a large area of composite are all situations where a standard-sized diamond bur head simply covers too little surface per pass. This is exactly the gap that extra large heads diamond burs were designed to close.

An extra large head diamond bur is, at its core, a conventional diamond-coated rotary instrument built around one deliberately exaggerated feature a working head that is noticeably wider, longer, or thicker than the standard ISO equivalent of the same shape. The taper is still a taper, the ball is still a ball, and the flat end is still flat but the diamond-coated surface area making contact with the tooth, denture, or appliance in any single pass is significantly greater. That extra surface area translates directly into a faster rate of material removal, fewer strokes needed to cover a given area, and a more efficient clinical or laboratory workflow.

Understanding the Anatomy: Head Size, L1 and L2

To choose the right extra large head bur with confidence, it helps to understand exactly what the two most commonly listed measurements L1 and L2 actually describe, and why the difference between a bur measuring 1.0mm at the head and one measuring 7.0mm changes how it behaves in the handpiece.

L1: The Working Head Dimension

L1 typically refers to the diameter (for round, ball, and cone shapes) or the width/thickness (for flat and tapered shapes) of the diamond-coated working head itself. This is the number that tells you how much surface area contacts the tooth or material on each pass, and it is the single most important spec for predicting cutting speed and control. A bur with an L1 of 0.5mm behaves very differently from one with an L1 of 7.0mm, even if both share the same basic taper or ball geometry the larger figure removes more material per stroke, but also demands more deliberate handling to avoid over-reduction.

L2: Overall Working Length

L2 describes the total length of the instrument from the head down through the neck and shank section that inserts into the handpiece. This dimension matters for access a longer L2 (commonly in the 19mm–23mm range for the extra-large-head category) allows the bur to reach into deeper preparations, longer edentulous ridges, or posterior areas that a short-shank instrument cannot comfortably access.

0.5–7.0mm Typical L1 head range in this category

19–23mm Typical L2 overall length

10-pk Standard packaging format

~$3.99+ Typical price per bur, per pack

Reading a spec sheet with L1 and L2 side by side lets you quickly compare two burs of the same shape family for example, a 4.2mm round ball head versus a 3.9mm round ball head and predict how each will feel in hand before you ever open the pack. When browsing a full extra large heads diamond burs collection, these two numbers are worth checking before checking price.

Why Clinicians Reach for Extra Large Head Burs

The appeal of an oversized head is not simply "bigger is better." It is a deliberate trade-off a wider or longer diamond-coated surface removes material faster and covers more area per pass, at the cost of some of the fine control that a smaller head offers. In the right clinical or laboratory context, that trade-off is exactly what's needed.

Where the extra size pays off

Gross reduction before crown or bridge preparation
Denture base and flange adjustment
Bulk acrylic and appliance contouring
Removing large areas of old composite or cement
Lab-side model trimming and gross shaping
Reshaping large occlusal surfaces efficiently

What you gain by using them

Fewer passes to cover the same surface area
Shorter chair time for bulk-removal steps
Less operator fatigue during long reduction sequences
More even, predictable bulk contours
Less bur-switching mid-procedure
Better value per bur for high-volume practices

It's worth being clear about what these burs are not optimized for. Fine margin definition, subgingival access in narrow embrasures, and delicate finishing work are still best handled by standard or fine-grit instruments with a smaller, more maneuverable head. Extra large head burs are the "first pass" tool the instrument that gets you most of the way there quickly, so that finer instruments have less work left to do.

Flat & Tapered Extra Large Head Burs

Flat-headed and tapered designs are the workhorses of bulk axial reduction. The flat face gives you a defined, controllable stopping plane, while the taper allows the same bur to shape a sloped surface without changing instruments. Within the extra large heads range, this family covers several thicknesses and taper angles so you can match the bur to how aggressive the reduction needs to be.

Flat & Tapered Head Options

These burs are best suited to gross axial reduction, appliance and denture base shaping, and any procedure where a broad, flat or gently tapered surface needs to be reduced quickly and evenly.

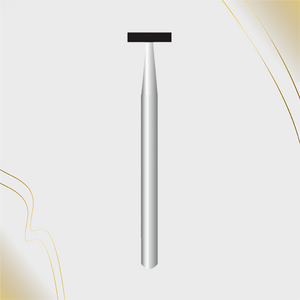

Notice how small differences in L1 0.5mm, 0.7mm, 1.0mm, 2.0mm change the character of the same basic flat-head design. The thinner-headed versions (055-042, 041-035) are useful where you still need a defined edge but want a slightly narrower profile for tighter spaces, while the thicker-headed versions (041-038, 041-050) are built for maximum bulk removal in open, accessible areas like denture flanges or broad occlusal tables.

Round, Ball, Cone & Collar Extra Large Head Burs

Where flat and tapered heads excel at planar surfaces, round, ball, cone, and pointed heads are built for contouring curved anatomy, opening access, hollowing, and rapid gross reduction on rounded surfaces such as cusps, ridges, and appliance edges. The extra large heads range includes several variations on this theme, each suited to a slightly different curvature or reach requirement.

Round, Ball, Cone & Pointed Head Options

These shapes are the go-to choice for gross occlusal reduction, rounding sharp appliance edges, hollowing acrylic, and any bulk-contouring task on a curved rather than flat surface.

The two "long" round-head options (697-032 and 697-039) are worth flagging separately with an L2 around 23mm, they extend slightly further than most of the range, which makes them a practical choice when the area you're reducing sits deeper in the mouth or further along a denture arch than a standard 19mm shank comfortably reaches.

Matching the Right Bur to the Right Procedure

With more than a dozen shape-and-size combinations available in the extra large heads range, the fastest way to narrow your choice is to start from the procedure, not the catalog. The table below maps common bulk-reduction tasks to the head geometry that tends to perform best.

Procedure / Task	Best Head Shape	Why It Works
Gross crown/bridge axial reduction	Extra Large Flat or Tapered Flat Head	Flat face defines a controllable reduction plane across a wide surface

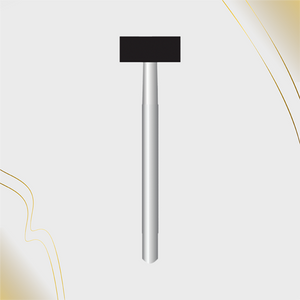

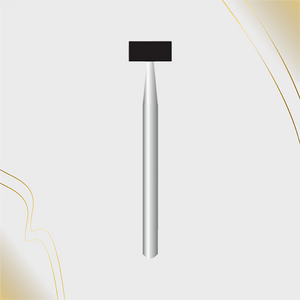

Denture flange / base adjustment	Extra Large Thick Flat Head	Maximum surface contact removes acrylic quickly in open areas
Occlusal gross reduction on cusps	Extra Large Round Ball Head	Rounded geometry follows natural cuspal curvature without gouging
Deep or posterior gross reduction	Long Round Extra Large Head	Extended L2 shank reaches areas a standard shank cannot access comfortably
Rounding sharp appliance edges	Extra Large Rounded / Cone Head	Tapered curvature smooths transitions without leaving flat facets
Narrow-access bulk contouring	Extra Large Tapered Pointed Head	Pointed tip enters tighter spaces while the widened body still removes bulk
Collar-adjacent flattening near a shoulder	Extra Large Flat Collar Head	Collar geometry maintains a consistent flat plane close to a step or margin

📐

Selection principle: Start with the shape that matches the geometry of the surface (flat vs. curved), then choose the head size (L1) that matches how much bulk you actually need to remove. Going one size larger than necessary saves passes going too large sacrifices control in tight anatomy.

Technique: Speed, Pressure and Cooling for Large Heads

A larger diamond-coated head changes the physics of cutting in a few important ways. More diamond particles are in contact with the surface at any given moment, which means more total friction and more heat is generated per pass than with a standard-sized head running the same speed and pressure. Adjusting technique slightly for these instruments protects both the material being worked and the longevity of the bur itself.

Run at the speed the task calls for

High-speed handpieces suit chairside gross reduction on tooth structure slower lab handpieces are typically used for acrylic and model work. Match the bur to the handpiece it was designed for rather than assuming higher RPM is always faster in practice.

Use light, intermittent pressure

Because the head is larger, even moderate pressure spreads across more surface area pressing harder rarely speeds up removal and instead increases heat and wear. Short, overlapping strokes outperform sustained heavy pressure.

Keep cooling continuous where tooth structure is involved

Any intraoral use on natural teeth requires uninterrupted water spray. The larger contact area of these burs generates heat faster than standard heads, so gaps in irrigation are riskier here, not less.

Let the bur do the bulk work, then switch down in size

Use the extra large head to remove the majority of material quickly, then transition to a standard or fine-grit bur of the matching shape for margin definition, edge refinement, and surface smoothing.

Common Mistakes When Using Large-Head Burs

Using an oversized head in a confined space

Forcing a 5mm or 7mm head into a narrow embrasure or a shallow preparation risks gouging adjacent structures. Reserve large heads for open, accessible areas and switch to a smaller shape once space tightens.

Skipping the finishing pass

A large head is a bulk-removal tool, not a finishing tool. Leaving the surface as the coarse bulk-reduction pass left it produces a rough result that later steps bonding, seating, polishing will struggle to compensate for.

Applying heavy pressure to "speed things up"

With more diamond surface already in contact, extra pressure adds heat faster than it adds cutting efficiency. Consistent light strokes at proper speed outperform pressing hard every time.

Ignoring L1/L2 specs before ordering

Because head sizes in this category vary widely from 0.5mm to 7.0mm ordering by shape name alone can leave you with a bur that's either too aggressive or too mild for the intended task. Always check the listed L1 and L2 measurements first.

Sterilization, Storage and Replacement

Extra large head diamond burs follow the same infection-control and maintenance principles as any other rotary diamond instrument, with a few practical notes specific to their size.

Clean immediately after use: rinse under running water to remove gross debris, then process through an ultrasonic bath with enzymatic solution before sterilization.
Autoclave rather than dry-heat sterilize: steam autoclaving preserves the diamond bonding matrix better than dry heat over repeated cycles.
Store heads separated: because the diamond-coated surface area is larger, bur-to-bur contact in a drawer or tray causes more particle loss than it would on a smaller head. A dedicated bur block keeps each instrument isolated.
Inspect before each use: look for visible flat spots, particle loss, or shank wear under magnification a dulled large head loses efficiency disproportionately, since it's being relied on for speed.
Replace on a cycle, not just on failure: because these burs are typically sold in economical 10-packs, rotating in a fresh bur before performance visibly drops is usually more cost-effective than pushing a worn one to its limit.

Building Your Extra Large Head Bur Kit

Most practices and labs don't need all fourteen shape variations in the extra large heads range at once but a well-chosen starter set covers the majority of gross-reduction scenarios you'll encounter. A practical starting kit typically includes one flat-head option for axial and denture work, one round-ball option for cuspal and edge contouring, one tapered or pointed option for narrower access, and one longer-shank option for deeper reach.

A Practical Starter Selection

Each of these is available as a 10-pack, which keeps a working supply on hand without a large upfront cost.

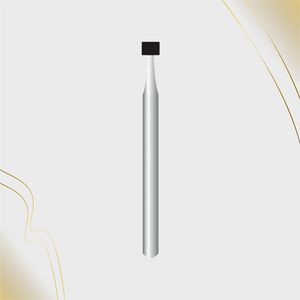

041-017 — Tapered and Extra Large Flat Head Flat/axial work

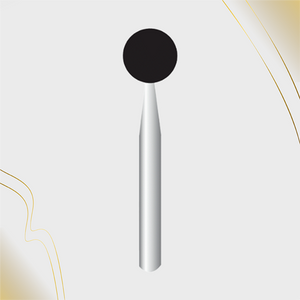

001-042 — Extra Large Round Ball Head Cuspal/curved contouring

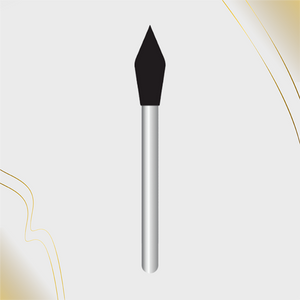

033-027 — Extra Large Tapered Pointed Head Narrower access
697-032 — Long, Round Extra Large Head Deeper reach

From there, you can add specialty shapes as your case mix demands a cone-shaped head for smoothing transitions, a flat collar head for step-adjacent work, or a second thicker flat head for higher-volume denture adjustment days. The full range, with exact L1/L2 measurements for every option, is available on the Extra Large Heads Diamond Burs collection page.

Conclusion

Extra large head diamond burs solve a specific, recurring problem the need to remove a meaningful volume of material quickly, accurately, and without burning through a dozen bur changes to get there. By understanding what L1 and L2 actually measure, matching head shape to surface geometry, and adjusting speed, pressure, and cooling for the larger contact area these burs present, you can bring genuine efficiency to gross-reduction steps whether that's chairside crown preparation, denture adjustment, or lab-side model work.

The category rewards a bit of planning. Rather than reaching for whatever oversized bur is closest to hand, take a moment to match the shape flat, tapered, round, ball, cone, or collar to the surface you're actually working, and the head size to how much material genuinely needs to come off. Used this way, extra large head burs become one of the fastest, most reliable tools in a bulk-reduction workflow.

Explore the Full Extra Large Heads Diamond Burs Range

Compare every shape, head size, and L1/L2 measurement in one place all packaged as economical 10-packs.
