Gold Diamond Burs Diablo: The Ultimate Guide to Precision

Understanding Gold Diamond Diablo Burs

What Is a Diablo Bur?

Most dental burs are named for a single, easy-to-picture shape a ball, a flame, a taper. The Diablo bur is different it's built from two inverted-cone heads joined back-to-back at a narrow waist, so the cutting surface flares outward at both ends of the head rather than at just one. Picture two flared cones meeting point-to-point in the middle, and you have the Diablo profile. In technical catalogues it's often listed as a "double inverted cone," and that description is the clearest way to understand what makes it useful.

A gold diamond Diablo bur pairs that double-flared head with a diamond-coated cutting surface bonded to the steel head through an electroplated gold-alloy matrix. Because both ends of the head are working surfaces, the Diablo shape effectively gives a clinician two inverted cone geometries in a single instrument useful whenever a preparation needs undercuts, retentive grooves, or defined shoulders on more than one surface without a mid-procedure bur change. For anyone building familiarity with the DiaGold range, the Diablo shape is usually reached for once the standard single inverted cone is already a comfortable, well-understood instrument, since it extends the same undercutting principle into a more efficient, dual-purpose design.

The name itself is a manufacturer's convention rather than a clinical description different suppliers catalogue the same double-flared geometry under different labels, and "Diablo" is simply the name GoldBurs and several other manufacturers use for it. What matters clinically isn't the name but the geometry two inverted-cone flares back to back, giving a single bur the retentive versatility that would otherwise require carrying two separate single-ended instruments.

This guide introduces the shape from the ground up how it's built, why the gold-plated diamond matrix matters, how grit and head diameter are chosen, and the specific clinical situations where a Diablo diamond bur is the right instrument to reach for. It's written as a starting point for anyone comparing bur brands or expanding a working set, not as a substitute for hands-on clinical training.

Anatomy: The Double Inverted Cone Head

Like every diamond bur, a Diablo bur is built from three parts a shank that fits the handpiece, a neck that transitions from shank to head, and a head that carries the diamond coating. What sets the Diablo apart is that its head has no single "widest point at the tip" the way a standard inverted cone does instead, the head narrows toward the middle and flares outward at both the neck-side and the tip-side, creating two usable cutting edges on one instrument.

Within the GoldBurs Diablo range, head diameter and head length are specified the same way as any diamond bur, following the ISO numbering convention. The practical effect of the double-flare geometry is that a single Diablo bur can define an undercut or shoulder near the gingival floor of a preparation and, without switching instruments, also refine a feature closer to the occlusal or incisal aspect both ends of the head are ready to cut as soon as they make contact.

Shank options follow the same standard used across the DiaGold line:

• FG (Friction Grip): The standard high-speed shank, used for the majority of chairside Diablo bur work in crown, onlay and cavity preparation.
• RA (Right Angle): Used in slow-speed contra-angle handpieces, favored when a clinician wants more controlled, deliberate cutting.
• HP (Handpiece / Straight): Used in straight handpieces, typically in laboratory settings.

Why the 24K Gold-Plated Matrix Matters

The bonding matrix the layer that holds diamond particles onto the steel head carries extra importance on a Diablo bur, because both flared ends of the head are subject to the same lateral, undercutting forces that make matrix quality so important on a standard inverted cone. GoldBurs manufactures its DiaGold Diablo burs with an electroplated gold-alloy matrix rather than the plain nickel bonding found in many economy diamond burs.

A Diablo bur that loses diamond unevenly on one flare while the other stays sharp defeats the purpose of the dual-ended design the clinician ends up relying on only half the instrument. That's the practical reason matrix quality is worth paying close attention to on this particular shape it's not just about how long a bur lasts, but about whether both of its cutting surfaces remain equally trustworthy for the whole of that working life.

Grit and Size Guide for Diablo Burs

Diablo burs are specified the same two ways as any diamond bur grit, which determines cutting speed and surface finish, and head diameter, which determines how wide an undercut, groove, or shoulder each flared end produces.

Head diameter follows the same ISO numbering convention used across the DiaGold catalogue, where each unit represents a tenth of a millimetre a size 012 head measures roughly 1.2 mm, a size 014 head roughly 1.4 mm. Because both flared ends of a Diablo bur sit at a known, fixed diameter, the shape can be used the same way an inverted cone or round bur is used elsewhere in the mouth as a built-in gauge for groove and undercut width, a principle described in more detail in our companion guide on gold diamond burs for enamel reduction.

Shop DiaGold Gold Diamond Diablo Burs

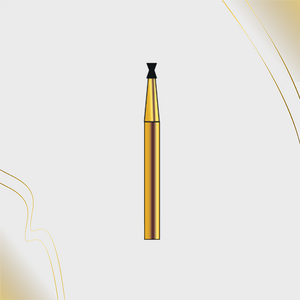

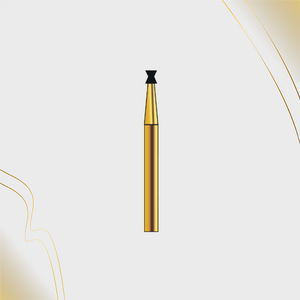

GoldBurs currently offers the Diablo shape in two head diameters, each sold as a 10-pack so a practice can keep a working supply on hand without running short mid-procedure. Below is the current lineup from the DiaGold Diablo Diamond Burs collection:

Both diameters are manufactured with the same electroplated 24K gold-alloy matrix used across the rest of the DiaGold line, so cutting performance and diamond retention stay consistent on both flared ends, pass after pass.

Clinical Uses and Choosing the Right Bur

Core Clinical Uses of Diablo Burs

The dual-flare geometry of the Diablo shape gives it a role that's closely related to the standard inverted cone, but more efficient whenever a preparation calls for undercut features in more than one location.

Class II Proximal Box Preparation

In a Class II preparation, the Diablo bur's two flared ends make it well suited to defining both the gingival floor and a retentive feature near the occlusal aspect of the box without switching instruments a practical time-saver during a routine restorative appointment.

Retention Grooves on Opposing Walls

Some retentive cavity designs call for undercuts on more than one internal wall. A Diablo bur can place a groove using one flared end, then be flipped or repositioned to place a second groove on an opposing wall using the other end, keeping the preparation efficient.

Crown and Onlay Margin Refinement

The flared cutting edges are well suited to refining internal margins and shoulder preparations, particularly in situations where both a gingival and an occlusal-facing shoulder need attention during the same visit.

Amalgam Cavity Design

Traditional amalgam preparations that depend on mechanical retention often need undercut features at more than one internal wall or floor. The Diablo shape's two working ends make it a practical choice for building that retentive form efficiently.

Old Restoration Removal Around Margins

When replacing an existing restoration, the Diablo bur's dual undercut action helps break contact and lift out material trapped along margins on more than one internal surface, reducing the need to swap instruments mid-procedure.

Zirconia and Ceramic Chairside Adjustment

A fine-grit Diablo bur can refine an internal shoulder or undercut area on a zirconia or E-max restoration chairside, with the diamond-abrasive action reducing the risk of chipping that a shearing carbide instrument could introduce into a brittle ceramic surface.

Fixed Prosthodontic Preparation Efficiency

In bridge and multi-unit fixed prosthodontic work, where several abutment preparations often need similar retentive features repeated across adjacent teeth, the Diablo's two working ends can reduce the number of instrument changes required to move consistently from one preparation to the next.

Diablo Burs vs. Single Inverted Cone Burs

The Diablo and the standard inverted cone share the same underlying undercutting principle, but the choice between them usually comes down to how many retentive features a preparation needs and how efficiently a clinician wants to move between them.

Many clinicians keep both in a working tray a standard inverted cone for preparations that need a single, well-defined undercut, and a Diablo bur reserved for cases where the added efficiency of two working ends genuinely saves a step. Neither shape replaces the other outright the decision usually comes down to how many distinct retentive features a given preparation requires, and whether reaching for one dual-ended instrument is genuinely faster than swapping between two single-ended ones.

Choosing the Right Diablo Bur for the Task

Technique: Speed, Angle and Cooling

Because the Diablo shape cuts on an undercut at both ends, technique matters just as much here as it does with a standard inverted cone arguably more, given the added complexity of two active cutting zones

• Run at the correct speed. FG Diablo diamonds are built for air-turbine handpieces running too slowly reduces cutting efficiency and increases frictional heat.
• Use light, controlled lateral movement. As with any undercutting shape, the bur is doing work as it's drawn sideways, not just plunged straight in light, deliberate strokes produce a cleaner, more predictable groove than heavy pressure.
• Keep water cooling continuous. The confined, undercut geometry created at either end of the head can trap heat more easily than an open surface, making constant spray especially important.
• Track which end is in use. Since the Diablo has two active cutting surfaces, it helps to consciously note which flare is engaged for a given feature, so both ends are used deliberately rather than interchangeably.
• Work in short, checked passes. Placing a feature with either end in several light passes, checking depth and width between each, produces a more reliable result than one continuous cut.

Common Mistakes to Avoid

Care and Related Shapes

Because a Diablo bur has two active cutting surfaces rather than one, how it's cared for between uses has an outsized effect on whether both ends stay equally reliable. This final section covers routine maintenance and the complementary shapes worth keeping alongside the Diablo bur in a working tray.

Maintenance, Sterilization and Replacement

Diamond burs are replaced, not resharpened, once cutting performance drops. A few habits keep a Diablo bur performing consistently on both ends over its working life:

• Rinse debris from the head immediately after use, then clean in an ultrasonic bath with enzymatic solution before sterilization.
• Sterilize by steam autoclave the gold-plated matrix on DiaGold Diablo burs is built to withstand repeated 134°C cycles without degrading the bonding layer at either end.
• Store individually in a dedicated bur block the exposed flared edges at both ends of a Diablo bur are especially prone to chipping from head-to-head contact in a loose tray.
• Inspect both ends under magnification periodically for dulling or uneven diamond loss, since one flare can wear faster than the other depending on how the bur is used.
• Track approximate cycle counts for high-use burs and replace on a schedule rather than waiting for a visible failure mid-procedure.

The same gold-alloy matrix that improves cutting performance also improves how a Diablo bur ages through this maintenance cycle. Nickel-bonded diamond burs are more prone to visible corrosion and gradual particle loss after repeated autoclaving, and on a dual-ended shape that loss rarely happens evenly one flare typically degrades faster than the other, leaving a bur that only performs reliably from one direction. A well-bonded gold-plated matrix tends to hold consistent performance across both ends for a noticeably longer run of sterilization cycles, which is one of the more practical, cost-relevant reasons practices weigh matrix quality when comparing bur suppliers for this particular shape.

It's also worth building a simple habit of noting which end of a given Diablo bur has seen heavier use, particularly in a busy practice where several clinicians may share the same bur block. A quick visual check under loupes or a chairside magnifier before a procedure confirming that both flares still show a consistent, even diamond coating takes only a few seconds and avoids the frustration of reaching for a bur mid-preparation only to find one end has quietly lost its cutting edge.

Bur Shapes That Pair Well With Diablo Burs

Diablo burs are rarely the only shape used in a preparation. Most procedures move through a small sequence, with the Diablo handling multi-location retention features while other geometries manage access, gross reduction, and finishing. A few shapes worth stocking alongside your Diablo burs:

Conclusion

The gold diamond Diablo bur takes the undercutting logic of the inverted cone and extends it across two working ends in a single instrument, making it a practical choice whenever a preparation calls for retentive features in more than one location. Understanding how head diameter, grit, and orientation between the two flared ends map onto specific clinical needs and how a genuinely well-bonded gold-alloy matrix keeps both cutting surfaces performing evenly over repeated sterilization cycles is what separates an efficient, predictable preparation from one that leans unevenly on only half the bur.

Whether you're assembling a first working set of burs or restocking a size that's run low, the DiaGold Diablo Diamond Burs collection offers both available diameters manufactured to the same 24K gold-plated standard.
