Gold Diamond Burs Wheel: A Practical Guide for Interproximal and Flat-Surface Reduction

What Exactly Is a Wheel Diamond Bur?

A wheel bur also called a disc bur is built differently from almost every other diamond shape in a standard bur block. Instead of a head that extends the shank forward (like a taper, flame, or round bur), the wheel's head sits perpendicular to the shank a thin, flat disc that spins like a tiny circular saw blade rather than a grinding point.

That single design choice changes everything about how the instrument is used. Because the disc is thin edge-to-edge, it can be slipped into spaces that a round or barrel head is simply too wide to enter. Because it's flat, it produces a flat reduction plane rather than a curved or tapered one. And because the diamond coating runs along the rim (and often across both flat faces), the bur cuts efficiently no matter which part of its edge makes contact.

• ✓
  Thin disc profile enters embrasures and narrow gaps that bulkier shapes can't reach
• ✓
  Flat cutting plane produces an even, non-curved reduction surface
• ✓
  Rim + face coating cuts consistently regardless of contact angle
• ✓
  Works across materials enamel, composite, acrylic, and prosthetic surfaces

When to Reach for a Wheel Bur (and When Not To)

Not every interproximal or flat-reduction job calls for a wheel bur. The deciding factor is almost always access how much room the embrasure or working space actually gives you.

A useful rule of thumb if you can already see daylight through the contact area before you begin, a wheel bur will likely have enough room to work. If the contact is tight and closed, start with a thinner shape and consider the wheel bur only once some initial space has been created.

The 24K Gold-Plating Difference

Because a wheel bur so often operates close to the gingiva and inside a confined space you can't fully see into, consistency in how it cuts matters more here than almost anywhere else on the tray. An unevenly bonded disc can catch or skip mid-stroke not a reassuring thing to feel while working between two teeth.

DiaGold 24K gold-plated diamond burs address this at the manufacturing level. The gold plating sits over the bonded diamond particles and the steel shank, and it does more than look distinctive

Grit and Sizing Guide

DiaGold wheel burs are offered in different diameters and grits, and matching both to the task keeps reduction controlled rather than guesswork.

As for diameter, a smaller-diameter disc gives more room to angulate in a tighter embrasure, while a larger disc covers a broader flat surface more quickly where space allows which is why GoldBurs offers wheel burs in more than one size within the same grit family.

Where Wheel Burs Get Used in Practice

Orthodontic Interproximal Reduction (IPR)

In orthodontic treatment planning, wheel burs are a go-to for stripping controlled amounts of enamel from between adjacent posterior teeth, creating the space needed to resolve crowding without extraction. Where the embrasure allows edge-on access, a disc reduces the contact area evenly in far fewer strokes than a narrower shape would need.

Restorative Contact Adjustment

When a new composite or crown proximal surface is slightly over-contoured, a wheel bur can trim it back to a proper contact without disturbing the rest of the restoration's anatomy a job a bulkier shape would struggle to do this cleanly.

Laboratory and Prosthetic Work

On the bench, wheel-shaped diamonds are useful for trimming flat sections of prosthetic material, adjusting proximal contacts during crown and bridge try-in refinement, and general flat-plane contouring where edge-on access beats a rounder profile.

A Safe Interproximal Reduction Protocol

1. Confirm access before you start. Check the embrasure width visually or with a probe don't force the disc into a space it isn't sized for.
2. Run the handpiece at full recommended speed. Slow speed increases heat generation without improving control.
3. Keep the stroke direction consistent. Move through the space in one direction rather than sawing back and forth, to avoid a concave reduction surface.
4. Irrigate continuously. Cutting force is concentrated along a narrow edge, so cooling matters even more here than on open surfaces.
5. Measure between passes. Use a calibrated thickness gauge to confirm how much has been removed before proceeding further.
6. Finish and smooth. Switch to a fine-grit wheel or a flame bur to refine the reduced surface before treatment continues.

Care, Sterilization and Replacement

Wheel burs are thinner and more delicate than most other diamond shapes, so a slightly more careful handling routine protects both the instrument and the patient.

• Rinse the disc immediately after use so debris doesn't dry onto the rim before cleaning
• Run through an ultrasonic bath with enzymatic solution ahead of sterilization
• Autoclave per manufacturer guidance DiaGold's gold plating is built to hold up over repeated cycles without corroding
• Store each wheel bur separately in a dedicated bur block disc edges chip more easily than round or tapered heads when they knock against neighboring instruments
• Check the rim under magnification periodically a chipped edge, uneven wear, or a bent shank means it's time to replace, not push for a few more uses

Mistakes That Undermine Results

Frequently Asked Questions

DiaGold Wheel Burs Available Now

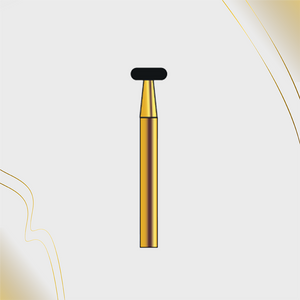

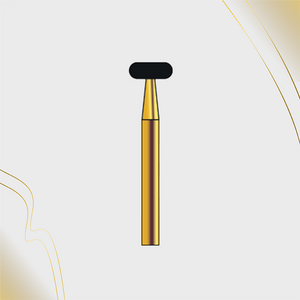

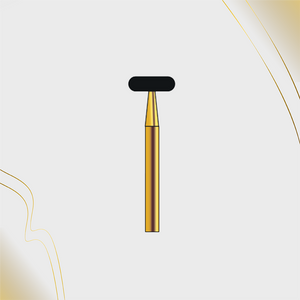

All three wheel-shaped options below come from the DiaGold wheel collection at GoldBurs, supplied as 10-packs so you always have a ready supply for interproximal and contour work.

These pair naturally with GoldBurs' broader flame and needle burs, interproximal burs, and barrel burs from the full DiaGold diamond bur collection, so you can move from bulk access to fine interproximal finishing without switching brands mid-case.

Final Thoughts

The wheel bur earns its spot on the tray by solving a problem no other common shape solves as cleanly controlled, flat-plane reduction in spaces too narrow for a bulkier head to enter. It won't replace your taper, flame, or barrel burs it works alongside them, stepping in specifically for interproximal and confined flat-surface tasks.

The manufacturing quality behind the bur matters as much as the shape itself. DiaGold's 24K gold-plated construction keeps the disc's cutting edge consistent through repeated use and sterilization, which is exactly what you want from an instrument that so often works where you can't fully see. Stock the grit and size that matches your caseload, follow a measured reduction protocol, and the wheel bur will earn its place as one of the more quietly essential shapes in your kit.
