Long Surgical Diamond Burs: The Complete Guide to Extended-Reach Precision

What Are Long Surgical Diamond Burs?

Most rotary diamond instruments are designed around the geometry of a "typical" tooth shallow access, good line of sight, and a shank length that comfortably clears the occlusal plane. But a meaningful share of clinical work does not happen under those ideal conditions. Deep interproximal boxes, subgingival margins, posterior teeth in patients with limited opening, crown-lengthening sites, implant-adjacent bone, and surgical flap procedures all demand an instrument that can travel further into the field while keeping the operator's hand and the handpiece head clear of soft tissue and adjacent structures.

That is precisely the role of a long surgical diamond bur. These instruments use the same diamond-abrasive principle as a standard diamond bur, but are manufactured on an extended shank, giving the clinician additional working length without sacrificing the head geometry needed for controlled cutting. Within this category, two purpose-built variations deserve special mention pin guide diamond burs, which incorporate a guide feature for accurate pin or post alignment, and depth marker diamond burs, which are laser-etched or manufactured with a visible reference band at a defined depth so the clinician can gauge reduction without a separate measuring step.

Featured Products

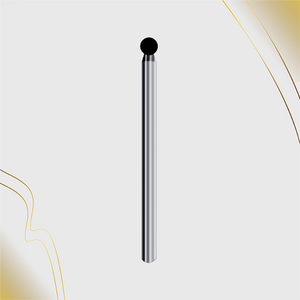

001-014LP | (801LP) 10-pk Long/Surgical...

$46.90

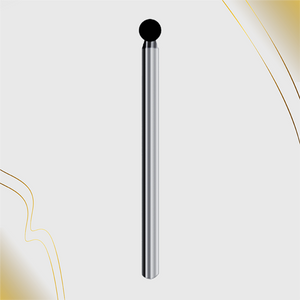

001-017LP | (801LP) 10-pk Long/Surgical...

$49.90

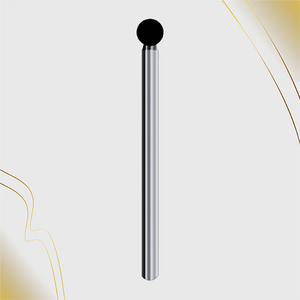

001-021LP | (801LP) 10-pk Long/Surgical...

$49.90

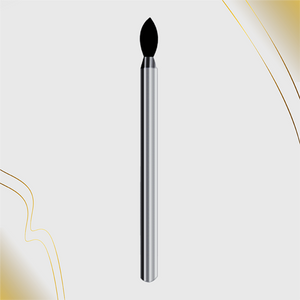

257-023LP (368) 10-pk Long/Surgical Dia...

$49.90

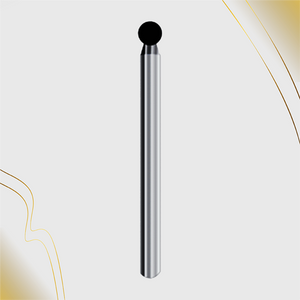

697-016 (801L) 10-pk Long/Surgical Diam...

$49.90

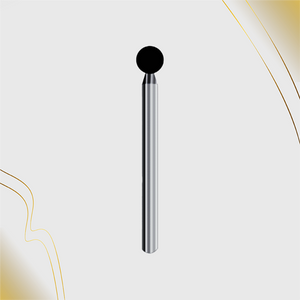

697-023 (801L) 10-pk Long/Surgical Di...

$49.90

This guide walks through why extended length changes clinical performance, where long/surgical burs fit into a restorative and surgical workflow, how pin guide and depth marker designs solve specific access and measurement problems, and how to build a rational kit around the long/surgical diamond bur range available from GoldBurs.

Why Extended Shank Length Matters in Clinical Practice

Shank length is easy to overlook when comparing burs, because grit and head shape tend to dominate the conversation. In reality, length is often the deciding factor in whether a bur can even be used for a given case. A bur with the correct grit and the correct head shape is still the wrong bur if it cannot physically reach the target surface without the handpiece head colliding with an adjacent tooth, retracted tissue, or a limited opening.

Standard vs. Long/Surgical Shanks

A standard friction-grip (FG) diamond bur is manufactured for routine restorative access most cavity preparations, occlusal reduction, and anterior work sit comfortably within its working length. A long/surgical bur extends that working length so the head can be advanced deeper into the site while the shank collar and handpiece nose remain outside the zone that would otherwise obstruct visibility or contact soft tissue. The head diameter and diamond specification can be identical between a standard and a long version of the same shape the difference that matters clinically is purely how far the cutting surface sits from the handpiece.

Reach, Visibility and Access

Three practical benefits follow directly from the extra length:

• Deeper access without repositioning. The clinician can reach subgingival margins, deep boxes, or posterior sites in one continuous approach rather than repeatedly repositioning the handpiece.
• Improved visibility around the working head. With more shank between the head and the handpiece collar, retraction and mirror-assisted viewing of the cutting surface is easier to maintain.
• Reduced risk of handpiece contact with adjacent structures. In surgical or crown-lengthening sites where soft tissue has been reflected, a shorter shank increases the chance the handpiece head itself compresses or catches tissue extra length keeps that bulk further from the surgical field.

Core Clinical Applications of Long Surgical Diamond Burs

Long/surgical diamond burs are not a single-procedure instrument they earn a place in the operatory because the same access problem recurs across several distinct clinical scenarios.

Understanding Pin Guide Diamond Burs

Pin guide diamond burs solve a very specific problem accurately positioning and aligning a pinhole in a tooth being prepared for a pin-retained restoration, without the pin drifting off axis. Rather than relying purely on freehand visual judgment, a pin guide bur incorporates a guide feature into its design that helps the operator maintain a consistent path as the hole is being cut, so the finished pinhole tracks true to the intended angulation.

Within the GoldBurs long/surgical range, this function is represented by the 508C-018 Pin Guide Diamond Burr and its companion diameters the 508C-021, 508T-021, and 508T-026 Pin Guide Diamond Burrs. The "C" and "T" designations reflect differences in head length and thickness, allowing the clinician to match the guide bur to the specific pin system, canal width, and remaining tooth structure being restored.

• Why alignment matters: An off-axis pinhole increases the risk of perforation, weakens remaining tooth structure, and can complicate seating of the definitive restoration.
• Why length matters here too: Pin preparation frequently happens at depth, in a preparation that has already lost significant coronal structure a long shank keeps the handpiece body clear while the guide feature does the alignment work.
• Typical use: Core build-ups, badly broken-down posterior teeth being restored with a pin-retained amalgam or composite core, and select post-space refinement steps.

Depth Marker Diamond Burs: Built-In Precision

Depth control is one of the recurring themes across nearly every reduction procedure in dentistry and it is just as relevant in surgical and pin-preparation contexts as it is in veneer or crown reduction. Rather than requiring a separate depth gauge or a series of reference grooves cut with a second instrument, a depth marker diamond bur is manufactured with a visible band or step at a specific, known depth along the working head. As the bur advances into the tooth or bone, the marker becomes the clinician's built-in stop-check once it reaches the surface being reduced, the target depth has been achieved.

GoldBurs offers this feature in two calibrated options the 552-016 (834) Diamond Bur with a 0.3 mm depth marker and the 552-021 (834) Diamond Bur with a 0.5 mm depth marker.

This built-in reference is particularly useful in situations where taking a periodontal-probe-style gauge reading repeatedly is impractical surgical fields, bone contouring, or any preparation where re-entering the site with a second instrument adds unnecessary steps. It does not replace sound depth-control judgment rather, it gives the operator a physical, visual checkpoint that reduces reliance on estimation alone.

Head Shapes Available in the Long/Surgical Range

Beyond the pin guide and depth marker categories, the long/surgical line includes several head shapes, each suited to a different pattern of material removal. Choosing the right head is as important as choosing the right length a round ball head and a football-shaped head behave very differently even at identical shank lengths.

Because most of these shapes are offered across a graduated range of diameters, clinicians can move from a small round head for initial, conservative access to a larger round ball for more efficient bulk reduction all on the same extended shank platform, using the full Pin Guide, Depth Marker and Surgical Diamond Burs collection.

The Gold-Plated Matrix Advantage for Surgical Burs

Surgical and long-access work places extra demand on a bur's bonding matrix. Deeper, less visible cutting often means the operator is relying more heavily on tactile feedback and consistent removal rate than on direct visual confirmation of surface texture which makes particle retention and cutting uniformity even more important than in routine restorative work.

Choosing the Right Long Surgical Bur: Quick Reference

The table below maps common clinical needs to the category of long/surgical bur best suited to the task, as a starting point for selection.

Technique Tips for Using Long Surgical Burs Safely

1. Confirm Full Handpiece Speed Before Starting

   Long/surgical diamond burs are designed to cut efficiently at full high-speed output. Running at reduced speed increases heat generation for the same amount of material removed a particular concern near bone and pulp-adjacent structures.

2. Use Light, Intermittent Pressure

   Because visibility can be reduced at depth, there is a natural temptation to press harder to "feel" progress. Resist this light, overlapping strokes remain the most efficient and controllable approach, just as with any diamond instrument.

3. Maintain Continuous Irrigation

   Water cooling is non-negotiable, and becomes even more important in surgical and bone-adjacent work, where thermal damage has direct implications for healing.

4. Let the Depth Marker or Guide Feature Do Its Job

   When using a depth marker or pin guide bur, resist overriding the built-in reference with visual estimation alone the feature exists specifically to remove that guesswork.

5. Retract and Re-Check Line of Sight Periodically

   Extended shank length improves access, but it does not replace good retraction. Pause periodically to confirm the head position and surrounding tissue status, particularly in surgical fields.

Sterilization, Handling and Longevity

Long/surgical diamond burs should be treated with the same sterilization discipline as any other rotary diamond instrument, with a few extra handling considerations that come with their added length:

• Rinse and pre-clean promptly after use, followed by an ultrasonic cycle with enzymatic solution before autoclaving, to prevent debris from hardening in the head or along the shank.
• Autoclave at 134°C using steam sterilization avoid dry heat, which can degrade the bonding matrix over repeated cycles.
• Store individually in a dedicated bur block. Long shanks are more prone to bending or shank damage if left loose in a tray alongside other instruments.
• Inspect the head and marker band before each use a depth marker bur that has lost definition at the reference band no longer provides a reliable visual cue and should be retired.
• Track cycle counts and replace burs before performance decline becomes noticeable mid-procedure, particularly for pin guide and depth marker burs where precision is the entire point of the instrument.

Common Mistakes to Avoid

Building a Long/Surgical Bur Kit

A practice that regularly performs crown lengthening, deep posterior restorative work, pin-retained core build-ups, or implant-adjacent contouring benefits from keeping a dedicated long/surgical kit, separate from standard restorative burs. A practical starting configuration drawn from the GoldBurs long/surgical collection includes:

• One graduated round ball set small, medium, and larger for general contouring at varying depths
• A football shaped head bur for smooth, curved surface work
• At least one pin guide diamond burr matched to your preferred pin system diameter
• Both calibrated 0.3 mm and 0.5 mm depth marker burs for reduction procedures that need a built-in reference
• A graduated round head series 697-012, 697-014, 697-016, and 697-023 for stepped, progressive access in narrower sites

Keeping this set stocked in 10-packs, as offered across the range, avoids mid-procedure interruptions and ensures a fresh, sharp bur is always available for the next case an especially important habit for pin guide and depth marker burs, whose clinical value depends entirely on precise, well-defined working surfaces.

Conclusion

Long surgical diamond burs exist to solve a problem that shape and grit alone cannot physical access. Whether the challenge is a deep subgingival margin, a bone-contouring step during crown lengthening, or a pin hole that needs to track true through remaining tooth structure, the extended shank paired with the right head geometry, and in some cases a built-in pin guide or depth marker gives clinicians the reach and reference points that routine restorative burs cannot offer.

As with any diamond instrument, the fundamentals still apply run at full speed, use light pressure, keep the field irrigated, and replace burs before wear compromises precision. Applied consistently, these principles make deep and surgical access procedures as controlled and predictable as any standard restorative preparation.
