Understanding Round-End Cylinder Gold Diamond Burs: Types, Uses & Applications

What Is a Gold Diamond Round End Cylinder Bur?

A round end cylinder bur is a rotary diamond instrument with a straight, uniform-diameter cylindrical body that finishes not in a flat tip or an angled bevel, but in a fully rounded, dome-shaped end. That full radius eliminates any internal line angle where the tip meets the cavity or preparation floor, leaving a smooth, continuously curved transition instead of a corner a geometry that matters wherever a sharp internal angle would concentrate stress or complicate access.

Round end cylinder burs belong to the broader family of gold diamond burs in the DiaGold range from GoldBurs, and they sit alongside close relatives such as the flat-end cylinder and the beveled cylinder. Clinicians reach for a round end cylinder whenever a preparation needs a flat, uniform wall combined with a rounded, stress-relieving internal transition rather than a sharp or angled one minimally invasive micro-preparation, crown preparation refinement, pulp-protective floor reduction, and extended-reach access work are among the most common scenarios.

This guide walks through the design logic behind the round end cylinder shape, how it compares to the flat-end and beveled cylinder shapes it is most often grouped alongside, why the 24K gold-plated diamond matrix used in DiaGold instruments changes day-to-day performance, grit and sizing selection, and the specific clinical scenarios where this shape earns its place on the tray. Whether you are stocking a minimally invasive preparation kit or simply deciding which cylinder shape belongs next to your flat-end and beveled options, this reference will help you use and choose the right instrument with more confidence.

It's worth being precise about what "rounded" actually buys a preparation, since the benefit is easy to state in the abstract but concrete in practice. A sharp internal corner is a stress riser under occlusal load, mechanical stress concentrates at that single line rather than distributing across the surrounding surface, which is exactly the kind of concentration point that can initiate a crack in a brittle restorative material or create an uncomfortable pressure point near the pulp. A full radius removes that concentration point entirely by spreading the same load across a continuously curved surface instead of a single edge. That is the engineering reason this shape exists, and it is why "rounded" is a functional choice rather than a cosmetic one.

Explore the DiaGold Round End Cylinder Collection

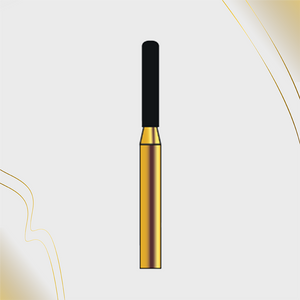

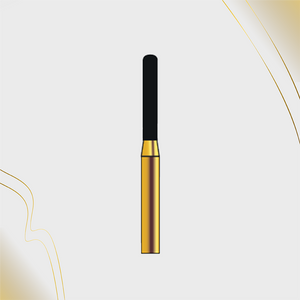

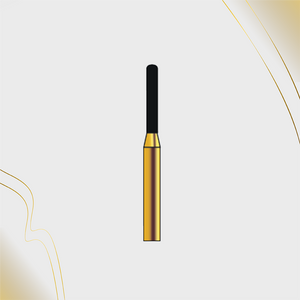

GoldBurs stocks one of its largest single-shape ranges under round end cylinder, spanning 14 configurations across five catalogue families the standard 880 and 881 families, the long-reach 837KR family, the compact 838 family (including a dedicated minimally invasive micro-prep version), and the extended-length 883 family. Every option below ships as a 10-pack, is 24K gold-plated, and is autoclave-rated for repeated sterilisation.

Need a sharper, defined internal angle instead of a rounded one? Browse the Flat-End Cylinder collection. If a controlled bevel is the better fit for the margin you're preparing, the Beveled Cylinder collection is the closest alternative. For a full overview of every diamond shape GoldBurs carries, visit the main DiaGold Diamond Burs category.

Anatomy: Understanding the Round End Cylinder Geometry

All cylinder-family diamond burs share the same straight-walled body, cutting a uniform-diameter wall as the bur is drawn along a surface. What separates a round end cylinder from its relatives is entirely in what happens at the tip a full, continuous radius rather than a flat face or an angled facet.

Full-Radius Tip vs. Flat-End and Beveled Cylinder Shapes

All three cylinder-family shapes cut the same uniform side wall. The difference is entirely in the internal transition left at the tip:

• Flat-End Cylinder: A sharp, 90° internal line angle ideal where a crisp, well-defined internal angle is clinically required.
• Beveled Cylinder: A controlled, angled facet at the tip that produces a deliberate bevel rather than a hard corner or a full radius.
• Round End Cylinder: A fully rounded tip that eliminates the internal line angle entirely, producing a smooth, continuously curved transition the gentlest of the three options at the point where the wall meets the floor.

In practical terms, a round end cylinder is the shape reached for specifically when stress concentration at a sharp internal corner, or an angled bevel that still leaves a defined edge, would be a liability situations where a fully smooth, rounded transition is the priority.

The Micro Prep, Long Thin Neck Variant

This collection includes a dedicated minimally invasive micro-preparation bur the M/138-007 (838) built with a long, thin neck specifically designed for the reduced access and conservative material removal that minimally invasive dentistry demands. Rather than scaling down a general-purpose round end cylinder, this variant is purpose-built around a narrower neck profile that allows the operator to reach a preparation site with less surrounding structure disturbed just to gain access.

Shank System, Head Length and ISO Sizing

Round end cylinder burs in the DiaGold range are produced across five catalogue families and a correspondingly wide range of head diameters and lengths, expressed using the same ISO numbering convention used across the diamond bur industry a bur coded 009 has a nominal head diameter of 0.9 mm, while a 014 has a 1.4 mm head. The 837KR and 883 families in particular offer extended overall length for deeper access, while the 838 family's compact and micro-prep variants suit more conservative, confined work.

Why 24K Gold-Plated Diamond Matters for a Smooth Internal Radius

A round end cylinder's usefulness rests entirely on how smooth and consistent its curved tip is, since the whole point of choosing this shape is to avoid a sharp or uneven internal transition. Any irregularity in how diamond particles are bonded to that curved surface undermines the exact advantage the shape is meant to deliver. This is precisely where the 24K gold-plated construction used across the DiaGold range earns its keep.

Because the entire clinical rationale for choosing a round end cylinder depends on a genuinely smooth, continuous curve at the tip, a gold-plated matrix that holds particles evenly across that curve is the reason DiaGold round end cylinder burs continue to deliver the smooth internal transition they're chosen for, even after several sterilisation cycles a difference that becomes increasingly clinically noticeable with a lower-grade nickel-bonded alternative.

Grit Guide: Matching Diamond Particle Size to the Task

As with every diamond bur shape, grit selection is the first decision in any procedure that uses a round end cylinder. The full-radius tip geometry stays constant across the grit range only the size of the diamond particles, and therefore the rate of removal and the smoothness of the resulting curve, changes.

Where Round End Cylinder Burs Fit in Everyday Practice

Because the round end cylinder shape produces a flat wall with a fully rounded, stress-relieving internal transition, it earns a place in several distinct areas of restorative work.

Minimally Invasive and Micro-Preparation Work

The dedicated micro-prep, long thin neck variant in this collection is purpose-built for minimally invasive dentistry, where conservative material removal and reduced access disturbance are priorities. Its narrower neck profile allows access to a preparation site with less surrounding structure affected than a general-purpose instrument would require.

Stress-Relief Internal Transitions in Crown Preparation

During crown preparation, a round end cylinder is frequently used to refine internal line angles once primary axial reduction is complete, replacing a hard internal corner with a smooth, rounded transition that reduces stress concentration in the finished restoration.

Pulp-Protective Axial Wall and Floor Reduction

Where a preparation floor is close to the pulp, a rounded internal transition avoids concentrating cutting action at a single sharp corner, offering a more conservative, pulp-protective geometry than a flat-end cylinder's hard internal angle.

Post Space and Extended-Reach Access

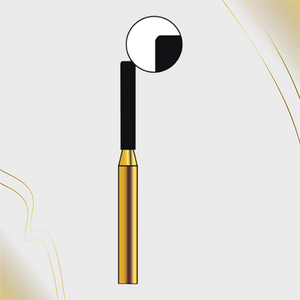

The long-reach 837KR and extended-length 883 families in this collection are suited to post space preparation and other deeper access work, where a longer overall length is needed to reach the working area while still delivering the same smooth, rounded internal transition at the tip.

Round End Cylinder vs. Flat-End Cylinder vs. Beveled Cylinder

Choosing between the three cylinder-family shapes comes down to how much internal-angle transition the case actually needs. The table below summarises the practical difference at a glance.

Many practices stock all three cylinder shapes side by side precisely because the "right" internal geometry changes from case to case a round end cylinder is the choice whenever a fully smooth, stress-relieving transition is the priority, rather than a defined corner or a controlled bevel.

Technique Tips for Predictable, Repeatable Results

Common Mistakes to Avoid

Caring for Your Gold Diamond Round End Cylinder Burs

• Rinse under running water immediately after use to remove gross debris, then place in an ultrasonic cleaner with enzymatic solution for 3–5 minutes before sterilisation.
• Sterilise by steam autoclave at 134°C. Avoid dry-heat sterilisation, which degrades the gold-alloy bonding matrix over repeated cycles.
• Store round end cylinder burs in a dedicated bur block so the curved tip is never in contact with adjacent instruments bur-to-bur contact is the most common cause of an uneven or chipped radius.
• Inspect the tip under magnification before each use any visible particle loss or an uneven curve is a sign the bur should be retired.
• Take particular care with the micro-prep, long thin neck variant, whose narrower profile is more susceptible to bending or damage from careless handling than bulkier configurations.

Frequently Asked Questions

Conclusion

The round end cylinder bur occupies a clear, well-defined role in the cylinder-shape family it cuts the same flat, uniform-diameter wall as its flat-end and beveled relatives, but replaces any internal edge sharp or angled with a full, continuous radius. That geometry matters wherever stress relief, a pulp-protective floor, or genuinely conservative access is the priority, and this collection's dedicated micro-prep and extended-reach variants extend that same principle to minimally invasive and deeper-access work respectively.

As with every shape in the DiaGold range, the 24K gold-plated bonding matrix is what turns that geometry into a dependable, repeatable clinical tool even particle distribution across a continuously curved tip, resistance to particle pull-out under lateral load, and full compatibility with routine steam sterilisation. Matching the right family standard, micro-prep, or extended-reach along with the right grit sequence and a light, consistent technique, is what produces a clean, genuinely smooth internal transition case after case.
